Ares Mega

Name: Ares Mega
Brand: AVOLUX
SKU: I01.MLR.50950

Ürün ikonları

Stok kodu: I01.MLR.50950

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

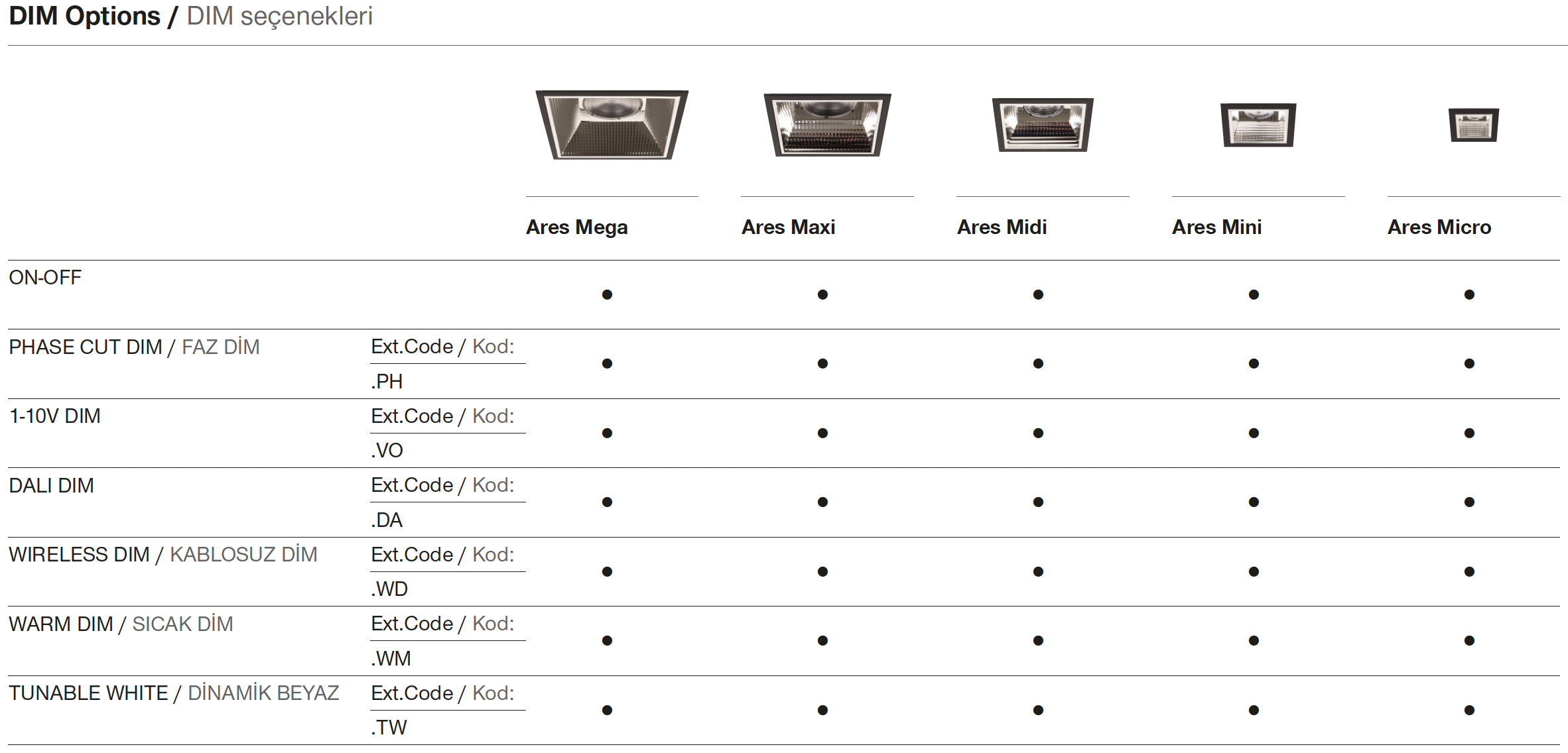

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

-- Narrow, Medium, Wide and Very Wide light angle options are available.

-- Standard CRI>80 and high CRI>90 LED options are available.

-- Efficiency up to 145lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
24W	CRI>80	I01.MLR.50950 . (..) . (...) . (..) . (..)	2700K	2930
			3000K	2989
			3500K	3048
			4000K	3111
			5000K	3203
	CRI>90	I01.MLR.50950 . (..) . (...) . (..) . (..)	2700K	2724
			3000K	2784
			3500K	2842
			4000K	2905
			5000K	X
	CRI>98	I01.MLR.50950 . (..) . (...) . (..) . (..)	2700K	X
			3000K	X
			4000K	X

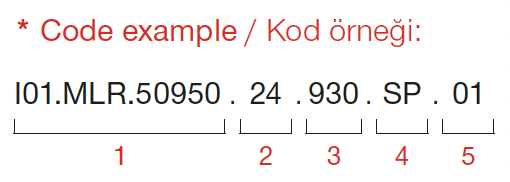

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
24	24W - 600mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	SP	17° - Spot	01	white
		830	CRI>80 - 3000K	930	CRI>90 - 3000K	M.E.	23° - Medium	02	ral 9010
		835	CRI>80 - 3500K	935	CRI>90 - 3500K	FL	34° - Flood	03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K	W.F.	55° - Wide Flood	04	gray
		850	CRI>80 - 5000K			H.F.	Half-Batwing	05	dark gray
								06	special color
