Blade Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 11-15W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 36-77mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19915.1180.015.830.01 |
| Family Name | Blade |
| Material | Aluminum |
| Format | linear |
| Profile Width | 36mm |
| Profile Height | 77mm |
| Installation Type | Stalactite |
| Productivity | >102lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plex |
| Optical | Lens Optical |
| UGR | <14 |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 11W 250mA lm | 15W 350mA lm |
|---|---|---|---|---|---|
| 1180mm | CRI>80 | I02.LL.19915 . (...) . (...) . (...) . (...) | 2700K | 1192 | 1365 |
| 3000K | 1230 | 1408 | |||
| 3500K | 1249 | 1430 | |||
| 4000K | 1297 | 1485 | |||
| 5000K | 1316 | 1506 | |||
| CRI>90 | I02.LL.19915 . (...) . (...) . (...) . (...) | 2700K | 1001 | 1146 | |
| 3000K | 1030 | 1179 | |||
| 3500K | 1049 | 1201 | |||
| 4000K | 1087 | 1244 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1180mm | 11W | 11W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 15W | 15W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

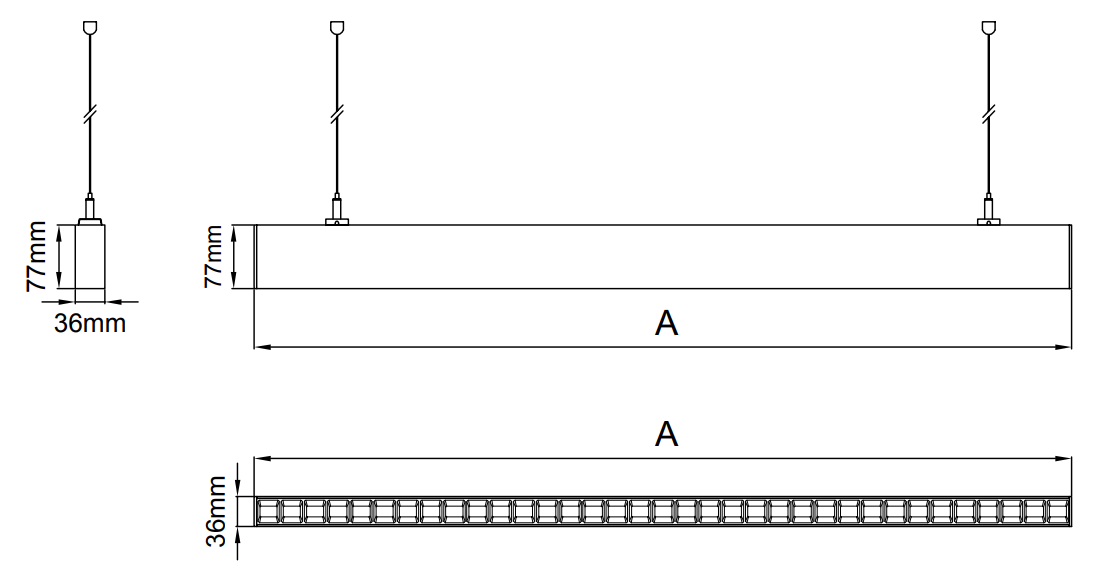

Teknik Çizimler

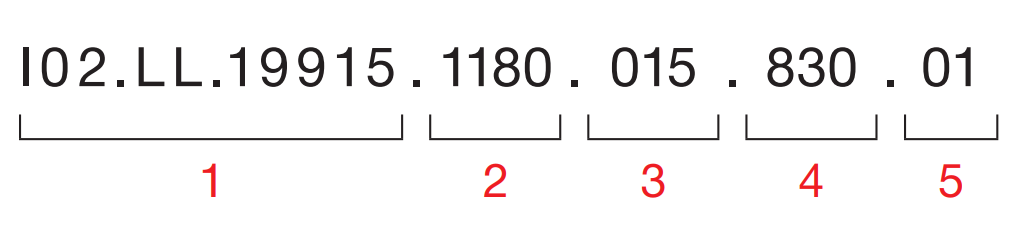

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
