City Maxi
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 90W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED street lighting fixture.
-- Corrosion resistant aluminum injection body.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- UV resistant polycarbonate lens optic
-- 10KV power surge protector can be integrated.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- High lighting comfort.
-- Color tolerance max. 3SDCM.
-- Suitable for use on poles with a maximum height of 10 meters.
-- Compatible with console inner diameter Ø45 - Ø60mm.
-- Efficient structure reaching up to 135lm/W.
-- Astro dim option is available.
-- Alternatively a motion sensor can be integrated.
-- Besides the standard 4000K light color, alternatively 2700K, 3000K,
3500K, 5000K and 6500K options are also available.
Ürün Kodu Tablosu
| City Maxi / O07.ST.15415 | |
|---|---|
| System Power | 90W |
| Luminaire Output Lumen CRI>70 - 4000K | 12103lm |
| Driving Current | 395mA |

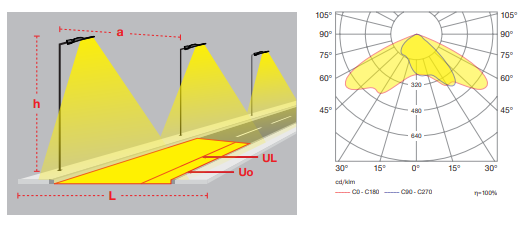

| Mast Span (a) | 36m |
| Mast Height (h) | 10m |
| Road Width (L) | 7m |
| Lighting Class | M5 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.15415.90.840.05 |
| Family Name | City Maxi |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 90W |
| Number of LEDs | 192 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 80 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

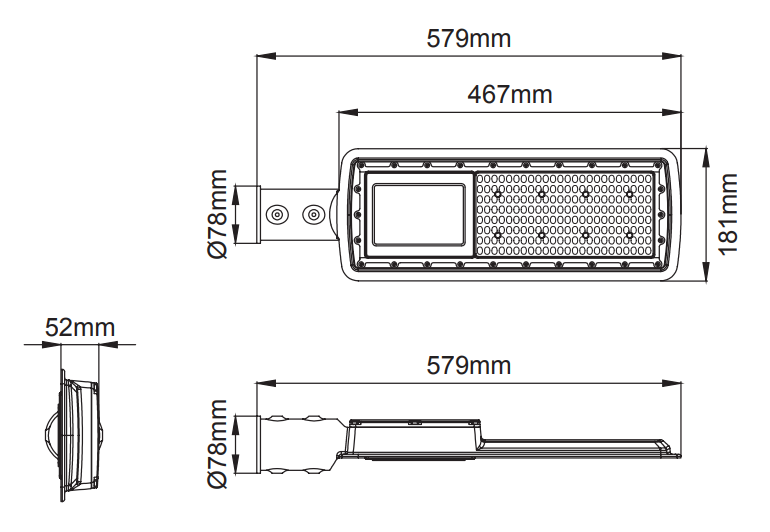

Teknik Çizimler

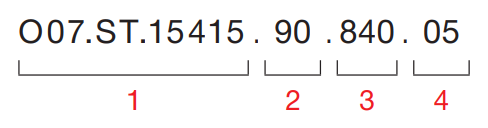

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
