Cosmos

Name: Cosmos
Brand: AVOLUX
SKU: I01.MLT.26205

Ürün ikonları

Stok kodu: I01.MLT.26205

Kategoriler: COB Led Tracklight Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- With 3-Phase universal rail adapter.

-- Mechanical with 90° vertical and 350° horizontal movement capability locking joint system.

-- Single lens structure providing homogeneous light output.

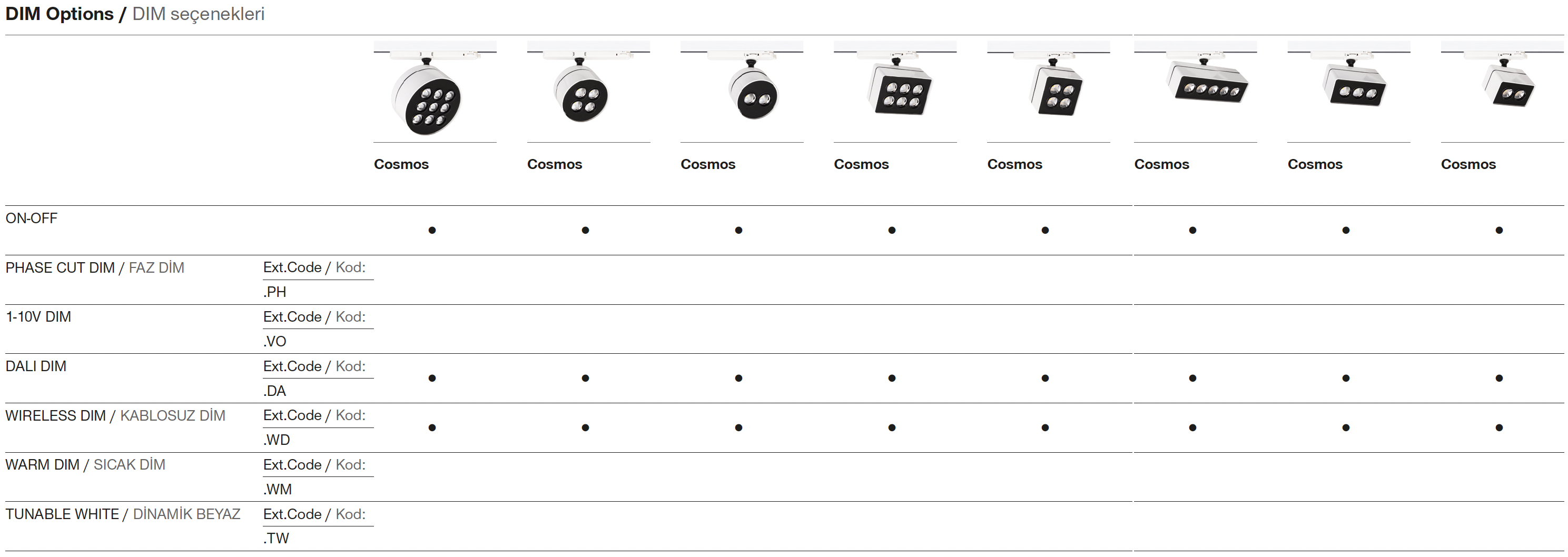

-- Classic DALI DIM option can be applied.

-- Wireless DIM application with high-tech control system can be done.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

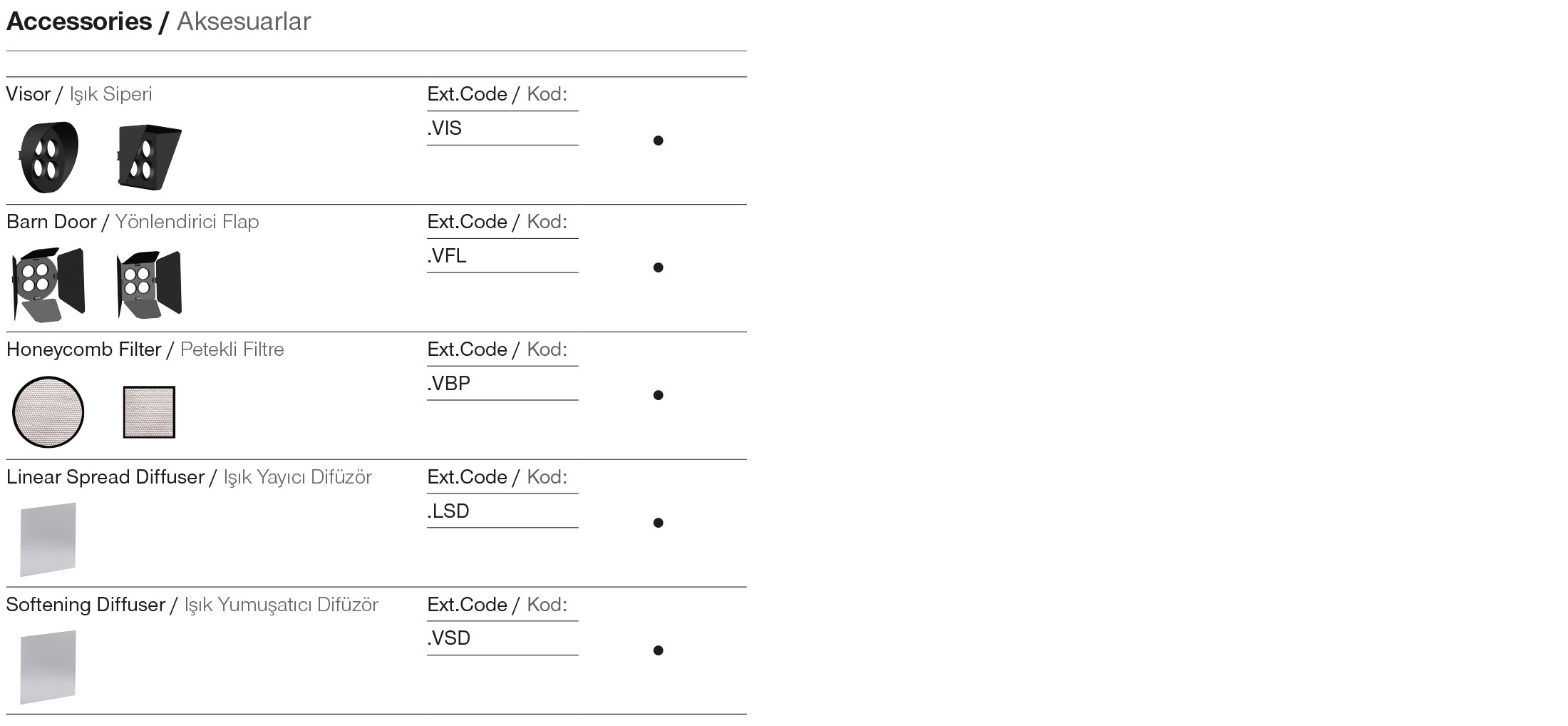

-- Honeycomb Filter, Viewfinder, Anti-glare flap, Light-diffusing diffuser and Light softener diffuser accessory options can be applied.

-- Narrow, Medium and Very Wide reflector angle options are available.

-- Standard CRI>80 and high CRI>90 LED options are available.

-- Efficiency up to 98lm/W.

-- High color compatibility: <3 SDCM

Strength	CRI	Order Code	Kelvin	Lumen
32W	CRI>80	I01.MLT.26205 . (..) . (...) . (..) . (..)	2700K	2897
			3000K	2991
			3500K	3054
			4000K	3149
			5000K	3243
	CRI>90	I01.MLT.26205 . (..) . (...) . (..) . (..)	2700K	2292
			3000K	2418
			3500K	2443
			4000K	2519
			5000K	X
	CRI>98	I01.MLT.26205 . (..) . (...) . (..) . (..)	2700K	X
			3000K	X
			4000K	X

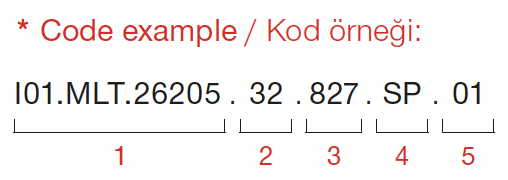

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
32	32W - 550mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	SP	15° - Spot	01	white
27	27W - 450mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	M.E.	34° - Medium	02	ral 9010
21	21W - 350mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	W.F.	50° - Wide Flood	03	black
		840	CRI>80 - 4000K	940	CRI>90 - 4000K			04	gray
		850	CRI>80 - 5000K					05	dark gray
								06	special color
