Cosmos RGBW
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 18W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- Intelligent cooling design with passive cooling technology.
-- With 3-Phase universal rail adapter.
-- Mechanical with 90° vertical and 350° horizontal movement capability
locking joint system.
-- Single lens structure providing homogeneous light output.
-- Thanks to the DALI DT8 transformer system, fixtures can be addressed individually.
-- Two separate DALI addressing; one for color control and one for each individual color
It provides dimming facility.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter, Light-diffusing diffuser and Light-softening diffuser accessory
options can be applied.
-- Narrow, Medium, Wide and Very Wide reflector angle options are available.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 18W | RGBW | I01.MLT.26405 . 18 . RGBW . (..) . (..) | 3000K | 275 |
| Red | 155 | |||
| Green | 300 | |||
| Blue | 45 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|
| 18 | 18W - 350mA | RGBW | Primary Colors |  | SP | 15° - Spot |  | 01 | white |
| Red, Green, Blue, Warm White |  | M.E. | 25° - Medium |  | 02 | ral 9010 | |||
 | FL | 40° - Flood |  | 03 | black | ||||
 | W.F. | 55° - Wide Flood |  | 04 | gray | ||||
 | 05 | dark gray | |||||||
 | 06 | special color |
Teknik Çizimler

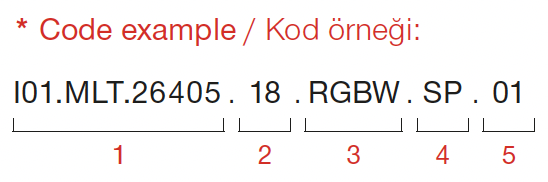

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
Aksesuarlar
