Cubus Recessed
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 20-59W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Diffusor |
| Breite, Höhe | 119–90 mm |
| Montageart | eingebaut |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.19170.1164.034.830.01 |
| Nachname | kubus |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 119mm |
| Profilhöhe | 90mm |
| Installationstyp | eingebaut |
| Produktivität | >82lm/W |
| CRI | 80 |
| Lichtverteilung | Symmetrischer Weitwinkel |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Opal-Plexi |
| Alternativer Diffusor UGR<19 | mikroprismatisch |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 20W 250mA lm | 27W 350mA lm |
|---|---|---|---|---|---|
| 884mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1495 | 2008 |
| 3000K | 1543 | 2072 | |||
| 3500K | 1567 | 2104 | |||
| 4000K | 1627 | 2185 | |||
| 5000K | 1651 | 2217 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1256 | 1686 | |
| 3000K | 1292 | 1734 | |||
| 3500K | 1316 | 1766 | |||
| 4000K | 1363 | 1831 |
| Länge (A) | CRI | Bestellcode | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1164 mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1818 | 2555 |
| 3000K | 1876 | 2637 | |||
| 3500K | 1905 | 2677 | |||
| 4000K | 1978 | 2780 | |||
| 5000K | 2007 | 2801 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1547 | 2146 | |
| 3000K | 1570 | 2207 | |||
| 3500K | 1600 | 2248 | |||
| 4000K | 1658 | 1831 |
| Länge (A) | CRI | Bestellcode | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1444 mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2321 | 3293 |
| 3000K | 2396 | 3398 | |||
| 3500K | 2433 | 3450 | |||
| 4000K | 2526 | 3583 | |||
| 5000K | 2563 | 3635 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1950 | 2765 | |
| 3000K | 2006 | 2844 | |||
| 3500K | 2043 | 2897 | |||
| 4000K | 2117 | 2330 |
| Länge (A) | CRI | Bestellcode | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1724 mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2845 | 4018 |
| 3000K | 2936 | 4147 | |||
| 3500K | 2982 | 4210 | |||
| 4000K | 3096 | 4372 | |||
| 5000K | 3141 | 4436 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2390 | 3375 | |
| 3000K | 2458 | 3471 | |||
| 3500K | 2504 | 3535 | |||
| 4000K | 2595 | 3664 |
| Länge (A) | CRI | Bestellcode | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 2004mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 3390 | 4756 |
| 3000K | 3498 | 4909 | |||
| 3500K | 3552 | 4983 | |||
| 4000K | 3688 | 5175 | |||
| 5000K | 3742 | 5251 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2847 | 3994 | |
| 3000K | 2929 | 4108 | |||
| 3500K | 2983 | 4184 | |||
| 4000K | 3091 | 4337 |
| 2 | Länge (A) | Schnittgröße | 3 | Watt – Antriebsstrom | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Produktfarbe | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 884mm |  | 100x864mm | 20W | 20 W (direkt) – 250 mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 27W | 27 W (direkt) – 350 mA | |||||||||||
| 1164 mm |  | 100x1144mm | 24W | 24 W (direkt) – 250 mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34 W (direkt) – 350 mA | |||||||||||
| 1444 mm |  | 100x1424mm | 30W | 30 W (direkt) – 250 mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 43W | 43 W (direkt) – 350 mA | |||||||||||
| 1724 mm |  | 100x1704mm | 36W | 26 W (direkt) – 250 mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | |
| 51W | 51 W (direkt) – 350 mA | |||||||||||
| 2004mm |  | 100x1984mm | 42W | 42 W (direkt) – 250 mA | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 59W | 59 W (direkt) – 350 mA | |||||||||||
 | 06 | Sonderfarbe |

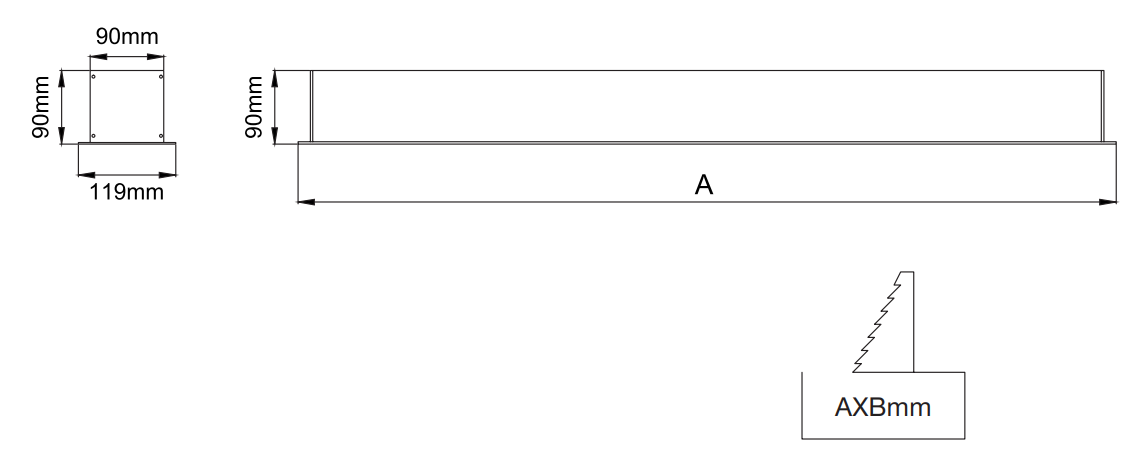

Teknik Çizimler

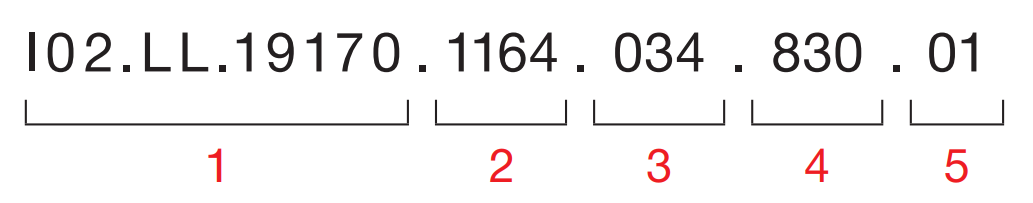

Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- CRI / Kelvin
5- Farbe / Produktfarbe
6- Steuerungstyp
