Cubus Recessed
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20-59W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 119-90mm |
| Mounting Type | built-in |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19170.1164.034.830.01 |
| Family Name | cubus |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 119mm |
| Profile Height | 90mm |
| Installation Type | built-in |
| Productivity | >82lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 27W 350mA lm |
|---|---|---|---|---|---|
| 884mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1495 | 2008 |
| 3000K | 1543 | 2072 | |||
| 3500K | 1567 | 2104 | |||
| 4000K | 1627 | 2185 | |||
| 5000K | 1651 | 2217 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1256 | 1686 | |
| 3000K | 1292 | 1734 | |||
| 3500K | 1316 | 1766 | |||
| 4000K | 1363 | 1831 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1164mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1818 | 2555 |
| 3000K | 1876 | 2637 | |||
| 3500K | 1905 | 2677 | |||
| 4000K | 1978 | 2780 | |||
| 5000K | 2007 | 2801 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1547 | 2146 | |
| 3000K | 1570 | 2207 | |||
| 3500K | 1600 | 2248 | |||
| 4000K | 1658 | 1831 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1444mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2321 | 3293 |
| 3000K | 2396 | 3398 | |||
| 3500K | 2433 | 3450 | |||
| 4000K | 2526 | 3583 | |||
| 5000K | 2563 | 3635 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 1950 | 2765 | |
| 3000K | 2006 | 2844 | |||
| 3500K | 2043 | 2897 | |||
| 4000K | 2117 | 2330 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1724mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2845 | 4018 |
| 3000K | 2936 | 4147 | |||
| 3500K | 2982 | 4210 | |||
| 4000K | 3096 | 4372 | |||
| 5000K | 3141 | 4436 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2390 | 3375 | |
| 3000K | 2458 | 3471 | |||
| 3500K | 2504 | 3535 | |||
| 4000K | 2595 | 3664 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 2004mm | CRI>80 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 3390 | 4756 |
| 3000K | 3498 | 4909 | |||
| 3500K | 3552 | 4983 | |||
| 4000K | 3688 | 5175 | |||
| 5000K | 3742 | 5251 | |||
| CRI>90 | I02.LL.19170 . (...) . (...) . (...) . (...) | 2700K | 2847 | 3994 | |
| 3000K | 2929 | 4108 | |||
| 3500K | 2983 | 4184 | |||
| 4000K | 3091 | 4337 |
| 2 | Length (A) | Cutting Size | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 884mm |  | 100x864mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 27W | 27W (Direct) - 350mA | |||||||||||
| 1164mm |  | 100x1144mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||||
| 1444mm |  | 100x1424mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||||
| 1724mm |  | 100x1704mm | 36W | 26W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||||
| 2004mm |  | 100x1984mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 59W | 59W (Direct) - 350mA | |||||||||||
 | 06 | special color |

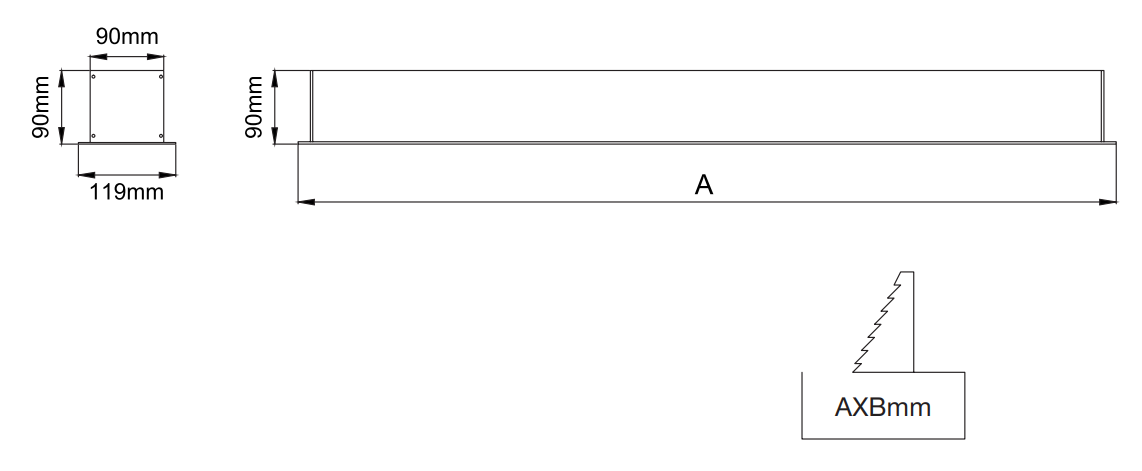

Teknik Çizimler

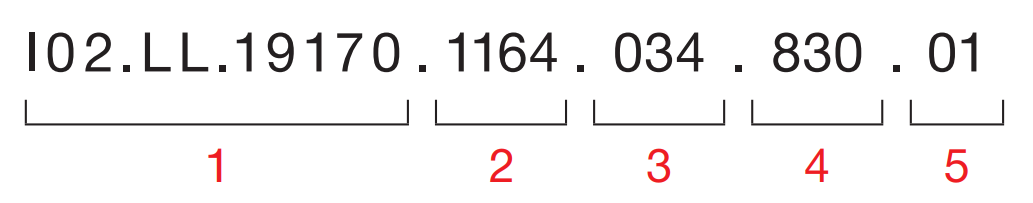

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
