Cubus Recessed

Name: Cubus Recessed
Brand: AVOLUX
SKU: I02.LL.19175

Ürün ikonları

Stok kodu: I02.LL.19175

Kategoriler: Linear Profile Led Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

Armature Data
Product Code	I02.LL.19175.1164.034.830.01
Family Name	Cubus Recessed
Material	Aluminum Profile
Format	linear

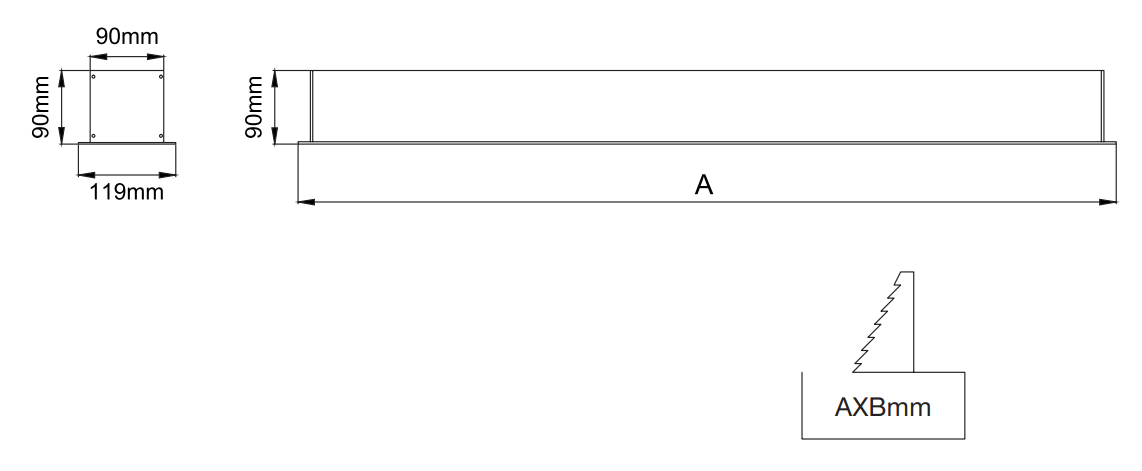

Profile Width	119mm
Profile Height	90mm
Installation Type	built-in
Productivity	>106lm/W
CRI	80
Light Distribution	Symmetrical Wide Angle
Protection Class	20
Luminaire Life	L70/B50 50000h
Optical	Double Parabolic Aluminum Reflector

Length (A)	CRI	Order Code	Kelvin	20W 250mA lm	27W 350mA lm
884mm	CRI>80	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	1944	2611
			3000K	2007	2693
			3500K	2038	2737
			4000K	2116	2842
			5000K	2147	2883
	CRI>90	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	1633	2193
			3000K	1680	2256
			3500K	1711	2298
			4000K	1773	2382

Length (A)	CRI	Order Code	Kelvin	24W 250mA lm	34W 350mA lm
1164mm	CRI>80	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	2365	3323
			3000K	2440	3430
			3500K	2478	3483
			4000K	2573	3616
			5000K	2610	3669
	CRI>90	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	1986	2791
			3000K	2042	2871
			3500K	2081	2924
			4000K	2156	3031

Length (A)	CRI	Order Code	Kelvin	30W 250mA lm	43W 350mA lm
1444mm	CRI>80	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	3019	4283
			3000K	3116	4420
			3500K	3165	4489
			4000K	3286	4660
			5000K	3334	4728
	CRI>90	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	2536	3597
			3000K	2609	3700
			3500K	2657	3768
			4000K	2754	3906

Length (A)	CRI	Order Code	Kelvin	36W 250mA lm	51W 350mA lm
1724mm	CRI>80	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	3701	5226
			3000K	3819	5394
			3500K	3879	5478
			4000K	4027	5687
			5000K	4086	5770
	CRI>90	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	3109	4389
			3000K	3197	4515
			3500K	3257	4598
			4000K	3375	4767

Length (A)	CRI	Order Code	Kelvin	42W 250mA lm	59W 350mA lm
2004mm	CRI>80	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	4410	6186
			3000K	4550	6385
			3500K	4620	6483
			4000K	4797	6731
			5000K	4867	6830
	CRI>90	I02.LL.19175 . (...) . (...) . (...) . (...)	2700K	3703	5195
			3000K	3810	5344
			3500K	3880	5443
			4000K	4021	5642

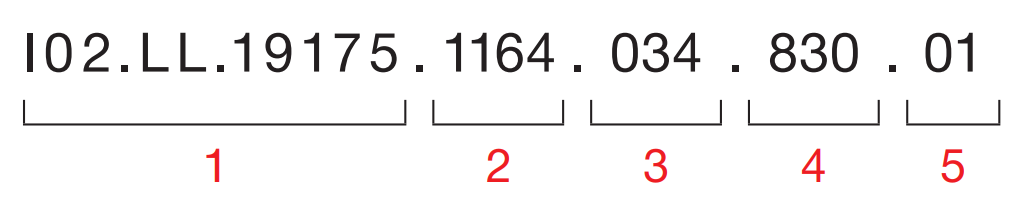

Length (A)	Cutting Size	3	Watts - Driving Current	4	CRI/Kelvin	4	CRI/Kelvin	5	Product Color
884mm	100x864mm	20W	20W (Direct) - 250mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
884mm	100x864mm	27W	27W (Direct) - 350mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
1164mm	100x1144mm	24W	24W (Direct) - 250mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
1164mm	100x1144mm	34W	34W (Direct) - 350mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
1444mm	100x1424mm	30W	30W (Direct) - 250mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
1444mm	100x1424mm	43W	43W (Direct) - 350mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
1724mm	100x1704mm	36W	26W (Direct) - 250mA	840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
1724mm	100x1704mm	51W	51W (Direct) - 350mA	840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
2004mm	100x1984mm	42W	42W (Direct) - 250mA	850	CRI>80 - 5000K			05	dark gray
2004mm	100x1984mm	59W	59W (Direct) - 350mA	850	CRI>80 - 5000K			05	dark gray
								06	special color
