Cubus Recessed
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 11.5-34W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 119-90mm |
| Mounting Type | built-in |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19177.1342.034.830.01 |
| Family Name | Cubus Recessed |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 119mm |
| Profile Height | 90mm |
| Installation Type | built-in |
| Productivity | >128lm/W |
| CRI | 80 |
| Light Distribution | Single Asymmetric Wallwasher |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 11.5W 200mA lm | 17W 300mA lm |
|---|---|---|---|---|---|
| 534mm | CRI>80 | I02.LL.19177 . (...) . (...) . (...) . (...) | 2700K | 1418 | 2090 |
| 3000K | 1463 | 2157 | |||
| 3500K | 1486 | 2190 | |||
| 4000K | 1543 | 2274 | |||
| 5000K | 1565 | 2307 | |||
| CRI>90 | I02.LL.19177 . (...) . (...) . (...) . (...) | 2700K | 1191 | 1755 | |
| 3000K | 1225 | 1806 | |||
| 3500K | 1248 | 1839 | |||
| 4000K | 1293 | 1906 |
| Length (A) | CRI | Order Code | Kelvin | 23W 200mA lm | 34W 300mA lm |
|---|---|---|---|---|---|
| 1034mm | CRI>80 | I02.LL.19177 . (...) . (...) . (...) . (...) | 2700K | 2885 | 4219 |
| 3000K | 2977 | 4354 | |||
| 3500K | 3023 | 4421 | |||
| 4000K | 3139 | 4590 | |||
| 5000K | 3185 | 4657 | |||
| CRI>90 | I02.LL.19177 . (...) . (...) . (...) . (...) | 2700K | 2423 | 3543 | |
| 3000K | 2492 | 3645 | |||
| 3500K | 2539 | 3721 | |||
| 4000K | 2631 | 3847 |
| 2 | Length (A) | Cutting Size | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 534mm |  | 106x510mm | 11.5W | 0W (Direct) - 200mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 17W | 0W (Direct) - 300mA | |||||||||||
| 1034mm |  | 106x1010mm | 23W | 0W (Direct) - 200mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 0W (Direct) - 300mA | |||||||||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||||
 | 06 | special color |

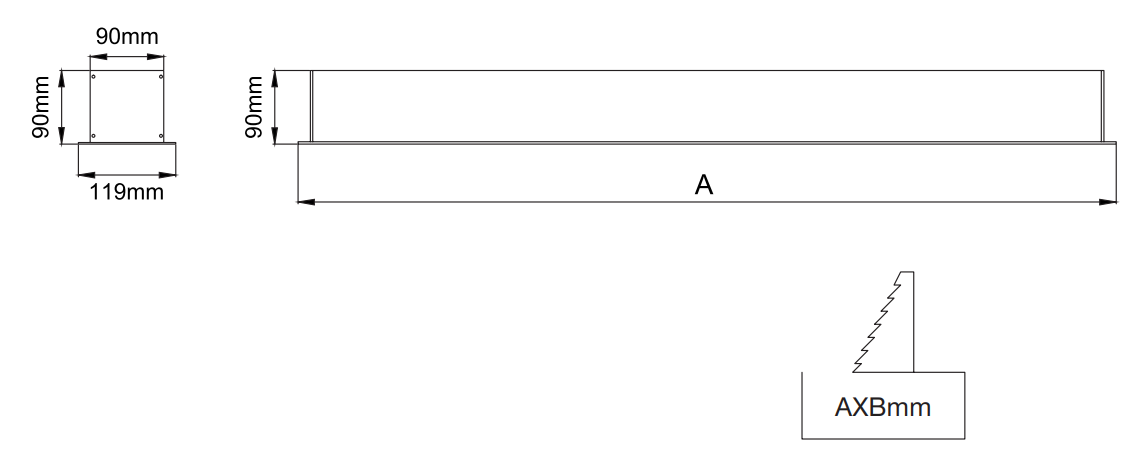

Teknik Çizimler

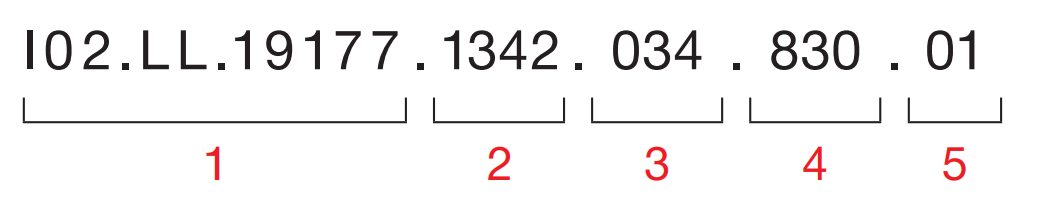

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
