Cubus Suspendant

Ürün ikonları

Input Voltage	220-240V / 50-60Hz
Wattage	20-59W
Protection Class	IP20
Shape	Linear
Optical	diffuser
width, height	90-90mm
Mounting Type	Stalactite

Stok kodu: I02.LL.19150

Kategoriler: Linear Profile Led Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

Açıklama

CUBUS provides lighting solutions in offices, stores, hospitals, etc. Both opal and Microprismatic options are available to reduce glare. 2700K, 3000K, 3500K, 4000K and 5000K options can be applied with different power, size and DIM preferences. DIM options include DALI, Dynamic White, Wireless DIM. Pendant direct, pendant direct/indirect, surface mounted, rail mounted and recessed mounting options are available.

Ürün Kodu Tablosu

Length (A)	CRI	Order Code	Kelvin	20W 250mA lm	27W 350mA lm
855mm	CRI>80	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	1802	2420
			3000K	1860	2497
			3500K	1916	2536
			4000K	1961	2633
			5000K	1990	2671
	CRI>90	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	1514	2032
			3000K	1557	2091
			3500K	1586	2129
			4000K	1643	2207

Length (A)	CRI	Order Code	Kelvin	24W 250mA lm	34W 350mA lm
1135mm	CRI>80	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	2191	3079
			3000K	2261	3177
			3500K	2296	3227
			4000K	2384	3350
			5000K	2419	3399
	CRI>90	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	1840	2586
			3000K	1893	2661
			3500K	1928	2709
			4000K	1998	2808

Length (A)	CRI	Order Code	Kelvin	30W 250mA lm	43W 350mA lm
1415mm	CRI>80	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	2798	3968
			3000K	2888	4095
			3500K	2935	4159
			4000K	3045	4318
			5000K	3090	4380
	CRI>90	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	2351	3332
			3000K	2418	3429
			3500K	2463	3491
			4000K	2552	3619

Length (A)	CRI	Order Code	Kelvin	36W 250mA lm	51W 350mA lm
1695mm	CRI>80	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	3430	4843
			3000K	3540	4997
			3500K	3595	5075
			4000K	3732	5269
			5000K	3787	5345
	CRI>90	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	2881	4066
			3000K	2963	4184
			3500K	3018	4260
			4000K	3128	4416

Length (A)	CRI	Order Code	Kelvin	42W 250mA lm	59W 350mA lm
1975mm	CRI>80	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	4085	5731
			3000K	4216	5914
			3500K	4281	6006
			4000K	4445	6236
			5000K	4510	6326
	CRI>90	I02.LL.19150 . (...) . (...) . (...) . (...)	2700K	3431	4812
			3000K	3530	4952
			3500K	3595	5042
			4000K	3726	5227

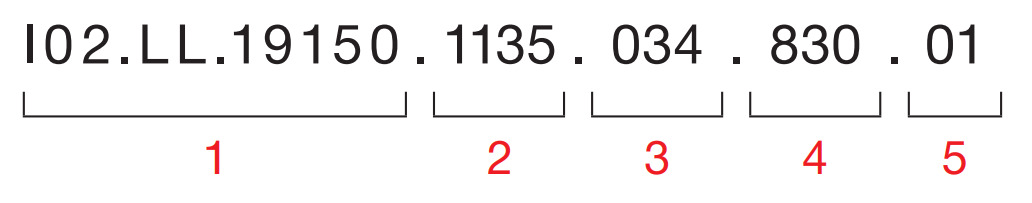

Length (A)	3	Watts - Driving Current	4	CRI/Kelvin	4	CRI/Kelvin	5	Product Color
855mm	20W	20W (Direct) - 250mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
855mm	27W	27W (Direct) - 350mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
1135mm	24W	24W (Direct) - 250mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
1135mm	34W	34W (Direct) - 350mA	830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
1415mm	30W	30W (Direct) - 250mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
1415mm	43W	43W (Direct) - 350mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
1695mm	36W	36W (Direct) - 250mA	840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
1695mm	51W	51W (Direct) - 350mA	840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
1975mm	42W	42W (Direct) - 250mA	850	CRI>80 - 5000K			05	dark gray
1975mm	59W	59W (Direct) - 350mA	850	CRI>80 - 5000K			05	dark gray
							06	special color
