Cubus Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 27.4-37.5W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 90-90mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19155.1515.037.830.01 |
| Family Name | cubus |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 90mm |
| Profile Height | 90mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >91lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Double Parabolic Aluminum Reflector |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 27.4W 250mA lm | 37.5W 350mA lm |
|---|---|---|---|---|---|
| 1515mm | CRI>80 | I02.LL.19156 . (...) . (...) . (...) . (...) | 2700K | 2373 | 3131 |
| 3000K | 2449 | 3231 | |||
| 3500K | 2487 | 3281 | |||
| 4000K | 2582 | 3407 | |||
| 5000K | 2620 | 3457 | |||
| CRI>90 | I02.LL.19156 . (...) . (...) . (...) . (...) | 2700K | 1993 | 2630 | |
| 3000K | 2050 | 2705 | |||
| 3500K | 2088 | 2755 | |||
| 4000K | 2164 | 2856 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1515mm | 27.4W | 27.4W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 37.5W | 37.5W (Direct) - 350mA | |||||||||
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |
Teknik Çizimler

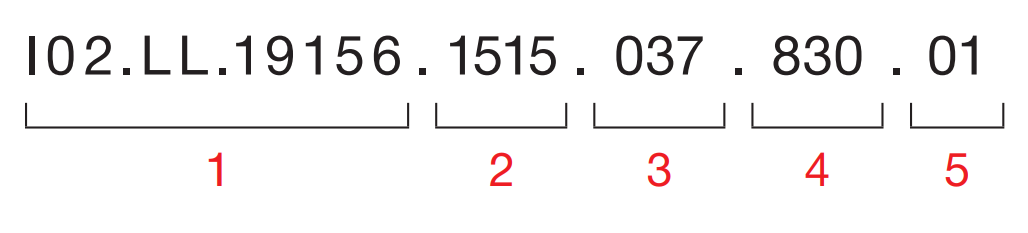

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
