Deepress Pendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 15W |
| Protection Class | IP40 |
| Shape | Stalactite |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking system with 20° movement capability in a single axis.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
-- Only the Honeycomb Filter accessory option is applicable.
-- Narrow, Medium, Wide, Very Wide and Oval Lens angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 121lm/W.
-- High color compatibility: <3 SDCM.
-- Steel pendant wire up to 5.00m height option.
-- The luminaire is supplied with a rosette at the connection point to the ceiling.
-- Emergency lighting kit system can be applied if the profile length is extended.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 15W | CRI>80 | I01.MLP.14035 . (..) . (...) . (..) . (..) | 2700K | 1651 |
| 3000K | 1702 | |||
| 3500K | 1762 | |||
| 4000K | 1821 | |||
| 5000K | 1948 | |||
| CRI>90 | I01.MLP.14035 . (..) . (...) . (..) . (..) | 2700K | 1486 | |
| 3000K | 1532 | |||
| 3500K | 1600 | |||
| 4000K | 1668 | |||
| 5000K | X | |||
| CRI>98 | I01.MLP.14035 . (..) . (...) . (..) . (..) | 2700K | 1085 | |
| 3000K | 1125 | |||
| 4000K | 1205 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 15W - 350mA | 827 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | SP | 20° - Spot |  | 01 | white |
| 10 | 10W - 250mA | 830 | CRI>80 - 3000K | 935 | CRI>90 - 3500K |  | M.E. | 35° - Medium |  | 02 | ral 9010 |
| 7 | 7W - 180mA | 835 | CRI>80 - 3500K | 940 | CRI>90 - 4000K |  | FL | 50° - Flood |  | 03 | black |
| 4 | 4W - 100mA | 840 | CRI>80 - 4000K | 9827 | CRI>98 - 2700K |  | W.F. | 70° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | 9830 | CRI>98 - 3000K |  | OV | 20° x 60° - Oval |  | 05 | dark gray | ||
| 927 | CRI>90 - 2700K | 9840 | CRI>98 -4000K |  | 06 | special color |

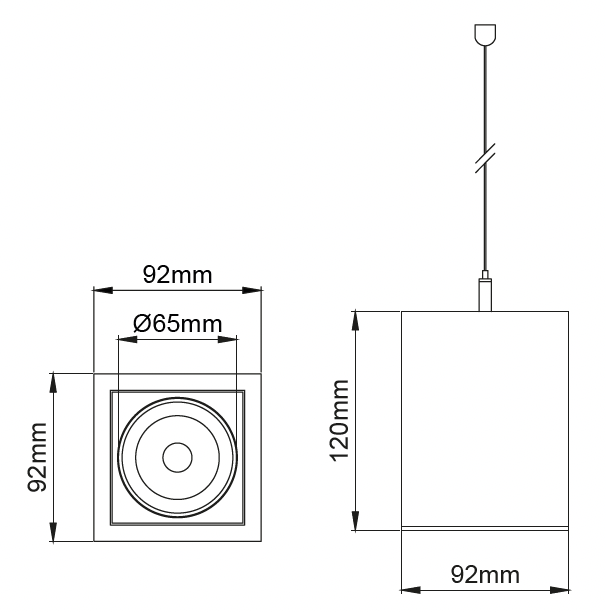

Teknik Çizimler

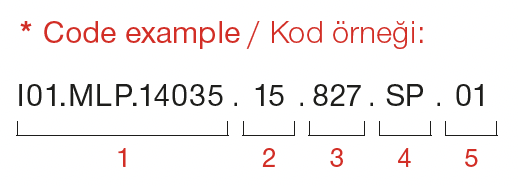

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

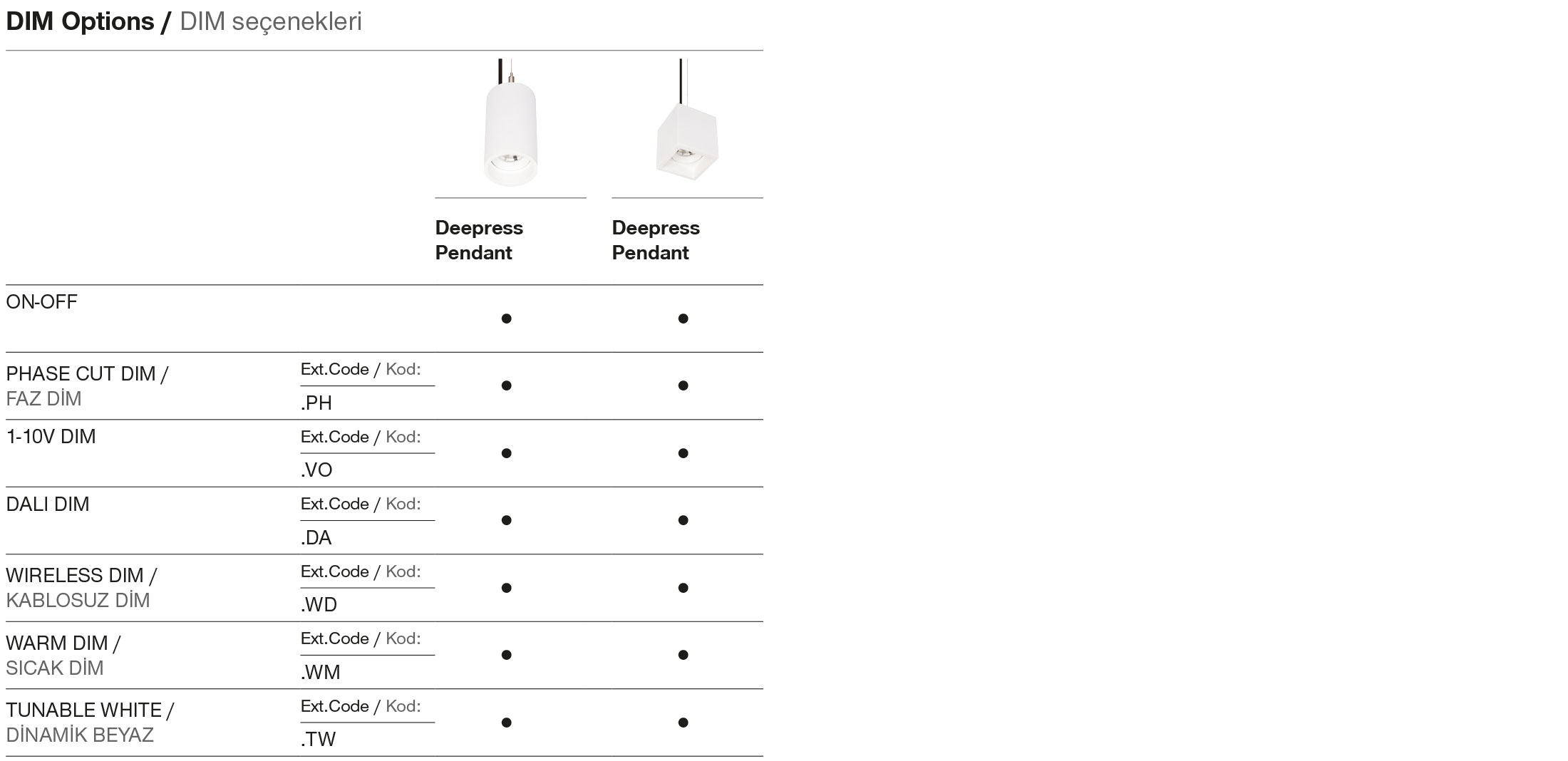

DIM Seçenekleri

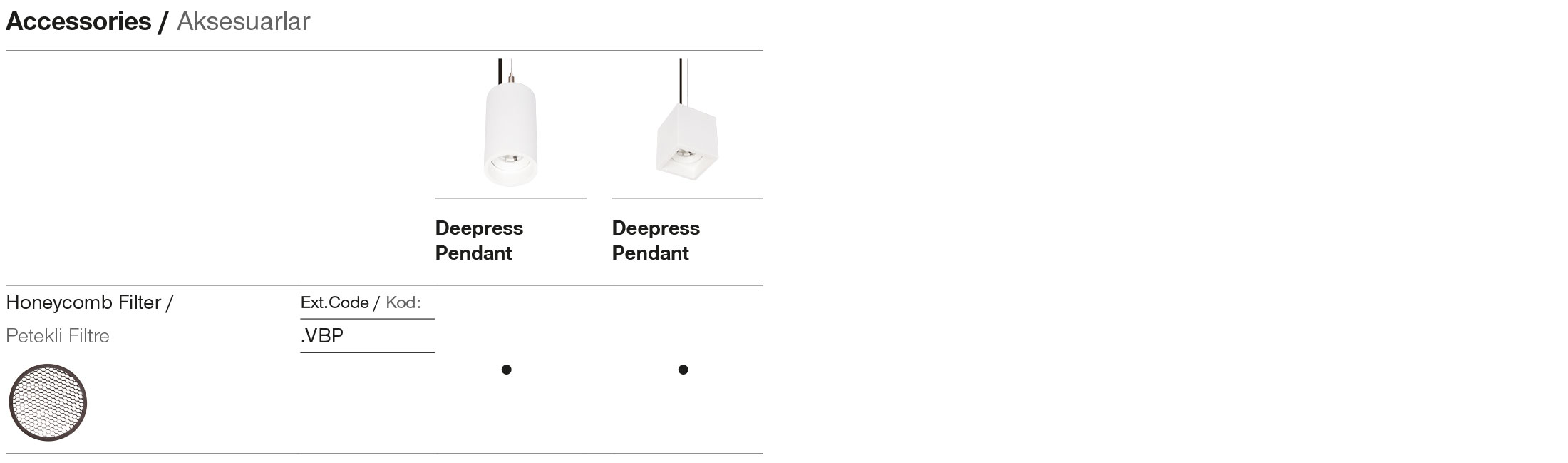

Aksesuarlar
