Deepress Surface

Name: Deepress Surface
Brand: AVOLUX
SKU: I01.MLS.14036

Ürün ikonları

Stok kodu: I01.MLS.14036

Kategoriler: COB Led Surface Mounted Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking system with 15° movement capability in a single axis.

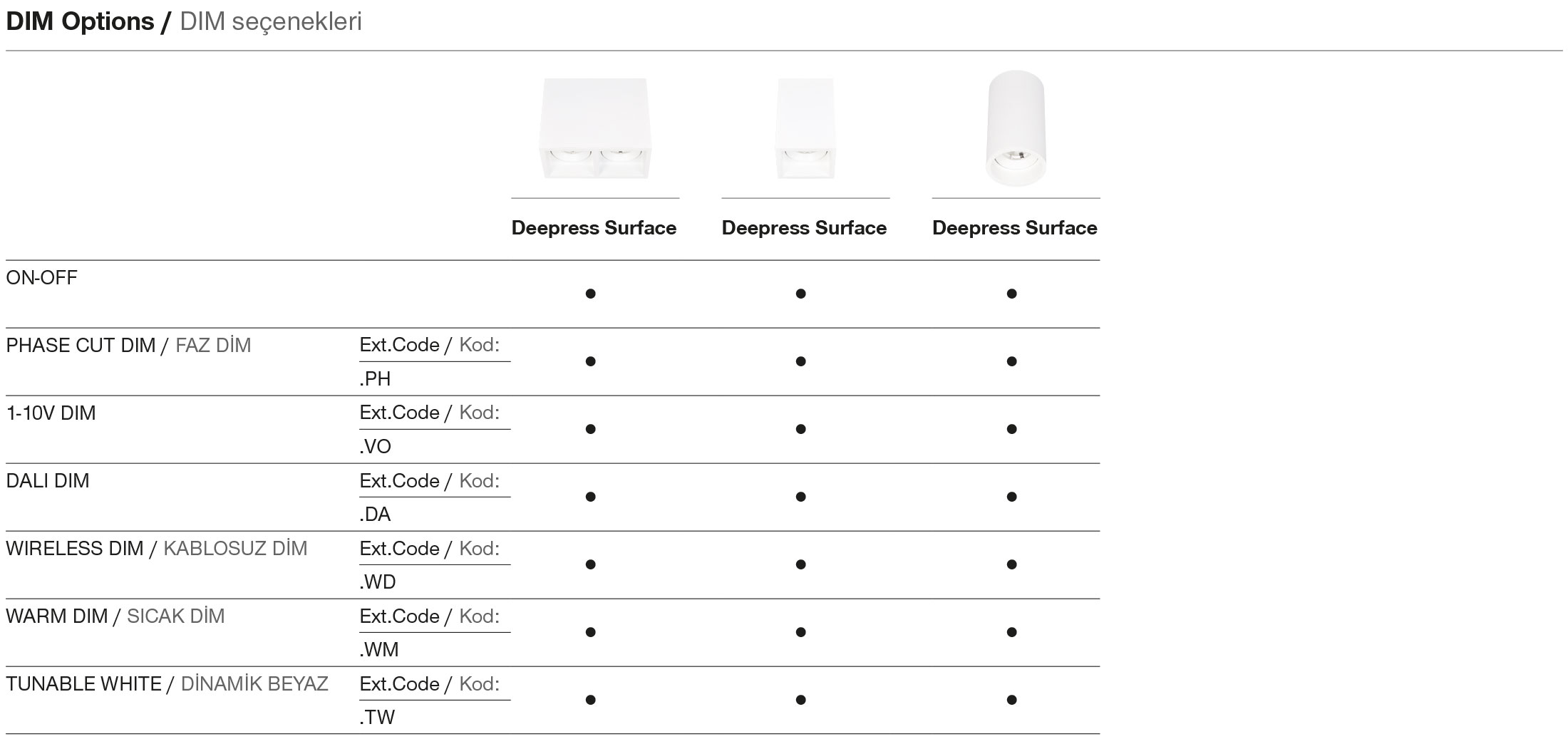

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

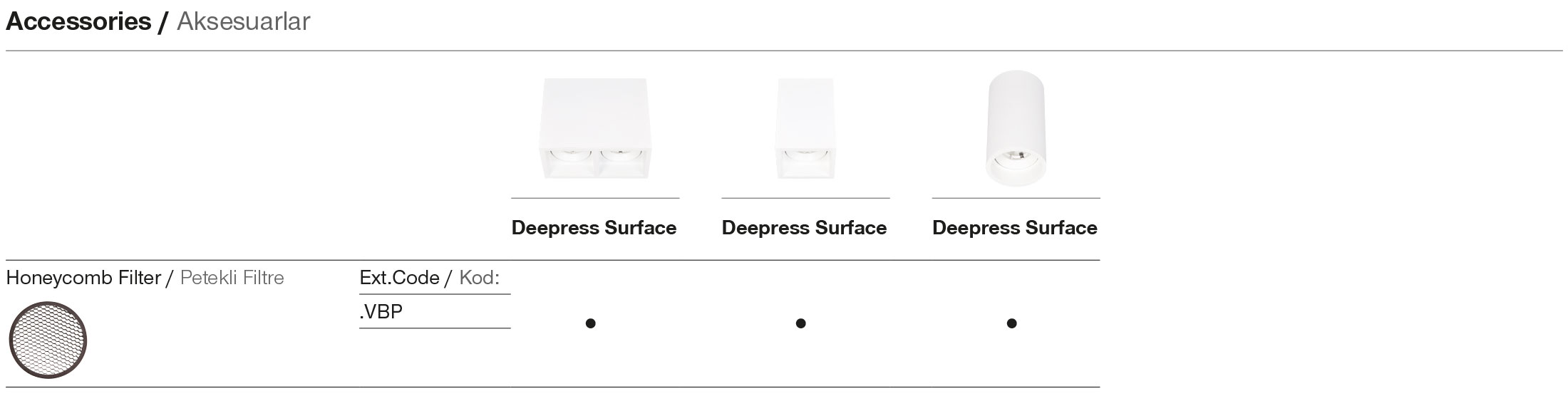

-- Only the Honeycomb Filter accessory option is applicable.

-- Narrow, Medium, Wide, Very Wide and Oval Lens angle options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 121lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
2x15W	CRI>80	I01.MLS.14036 . (..) . (...) . (..) . (..)	2700K	3302
			3000K	3404
			3500K	3524
			4000K	3642
			5000K	3896
	CRI>90	I01.MLS.14036 . (..) . (...) . (..) . (..)	2700K	2972
			3000K	3064
			3500K	3200
			4000K	3336
			5000K	X
	CRI>98	I01.MLS.14036 . (..) . (...) . (..) . (..)	2700K	2170
			3000K	2250
			4000K	2410

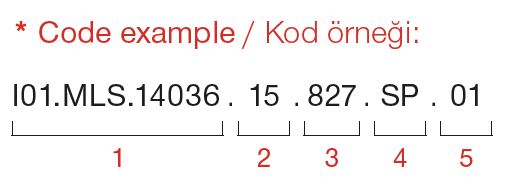

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
15	2x15W - 350mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	2x20° - Spot	01	white
10	2x10W - 250mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K	M.E.	2x35° - Medium	02	ral 9010
7	2x7W - 180mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K	FL	2x50° - Flood	03	black
4	2x4W - 100mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K	W.F.	2x70° - Wide Flood	04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K	OV	2x20° x 60° - Oval	05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
