| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 40W |
| Protection Class | IP40 |
| Optical | diffuser |
| Mounting Type | Standing Floor Lamp |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.90225.040.830.01 |
| Family Name | Aegean |
| Material | Aluminum Profile |
| Installation Type | Standing Floor Lamp |
| Productivity | >130lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
Ürün Kodu Tablosu
| watts | CRI | Order Code | Kelvin | 16W lm ↓ | 24W lm ↑ |
|---|---|---|---|---|---|
| 40W | CRI>80 | I02.LL.90225 . (...) . (...) . (...) . (...) | 2700K | 1960 | 2935 |
| 3000K | 2000 | 2995 | |||
| 3500K | 2040 | 3060 | |||
| 4000K | 2080 | 3120 | |||
| 5000K | 2140 | 3215 | |||
| CRI>90 | I02.LL.90225 . (...) . (...) . (...) . (...) | 2700K | 1820 | 2730 | |
| 3000K | 1860 | 2785 | |||
| 3500K | 1895 | 2840 | |||
| 4000K | 1935 | 2900 |
| 2 | watts | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 40W | 16W | 16W (Direct) | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 24W | 24W (Indirect) | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

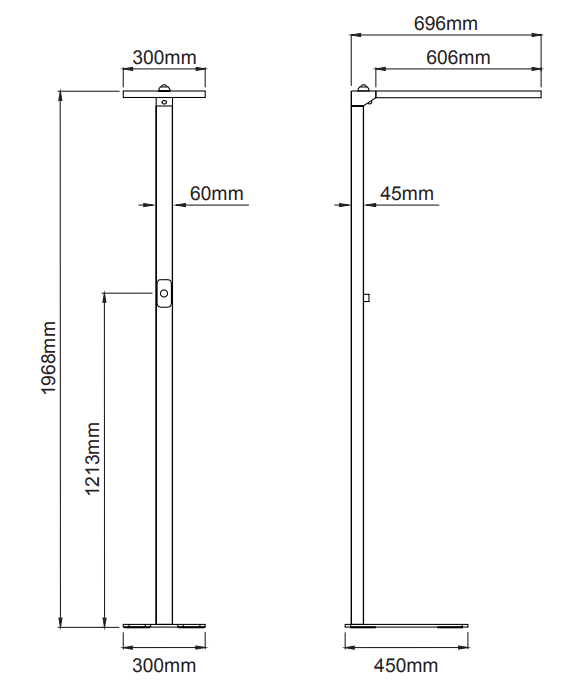

Teknik Çizimler

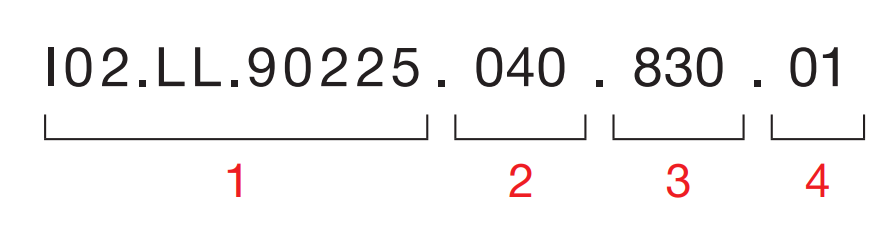

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
