| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20-50W |
| Protection Class | IP65 |
| Shape | surface mounted |
| Optical | diffuser |
-- Polycarbonate PMMA body.
| Armature Data | |
|---|---|
| Product Code | O07.LL.19335.1224.20.830.01 |
| Family Name | etange |
| Material | Tensile Polycarbonate Body |
| Format | linear |

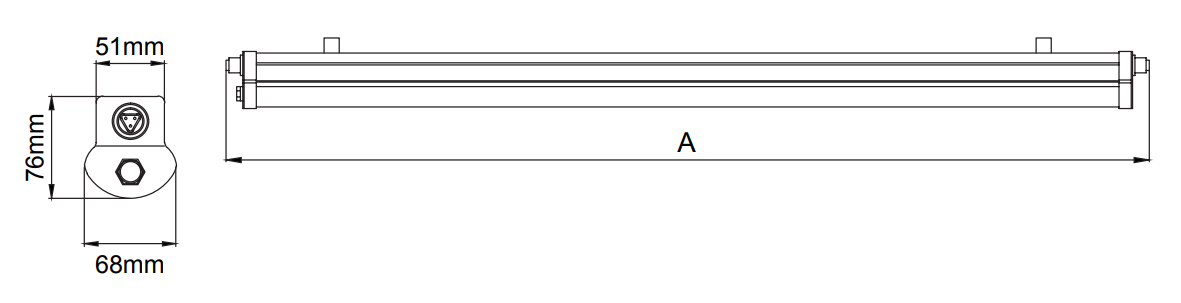

| Profile Width | 68mm |
| Profile Width | 76mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >107lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Length (A) | CRI | Order Code | Kelvin | 20W 125mA lm | 40W 250mA lm |
|---|---|---|---|---|---|
| 1224mm | CRI>80 | O07.LL.19335 . (...) . (...) . (...) . (...) | 2700K | 1931 | 3632 |
| 3000K | 1993 | 3748 | |||
| 3500K | 2023 | 3806 | |||
| 4000K | 2101 | 3952 | |||
| 5000K | 2132 | 4010 | |||
| 6500K | - | - |
| Length (A) | CRI | Order Code | Kelvin | 25W 125mA lm | 50W 250mA lm |
|---|---|---|---|---|---|
| 1524mm | CRI>80 | O07.LL.19335 . (...) . (...) . (...) . (...) | 2700K | 2389 | 4467 |
| 3000K | 2466 | 4610 | |||
| 3500K | 2504 | 4681 | |||
| 4000K | 2600 | 4860 | |||
| 5000K | 2638 | 4931 | |||
| 6500K | - | - |
| Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 5 | Product Color | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1224mm | 20W | 20W (Direct) - 125mA | 827 | CRI>80 - 2700K | ![]() | 01 | white | ||||
| 1524mm | 40W | 40W (Direct) - 250mA | 830 | CRI>80 - 3000K | ![]() | 02 | ral 9010 | ||||
| 25W | 25W (Direct) - 125mA | 835 | CRI>80 - 3500K | ![]() | 03 | black | |||||
| 50W | 50W (Direct) - 250mA | 840 | CRI>80 - 4000K | ![]() | 04 | gray | |||||
| 850 | CRI>80 - 5000K | ![]() | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K | ![]() | 06 | special color |

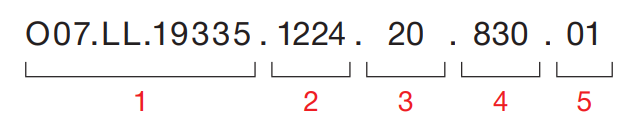

1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
