Extrude Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 67-105W |
| Protection Class | IP40 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 105-60mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.18045.1150.067.830.01 |
| Family Name | extruded |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 105mm |
| Profile Height | 60mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >92lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 40 |
| Luminaire Life | L70/B50 50000h |
| Optical | RAL Painted Sheet Honeycomb Lamellar |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 1150mm 67W 350mA lm | 1430mm 84W 350mA lm | 1710mm 105W 350mA lm |
|---|---|---|---|---|---|---|
| 1150mm - 67W | CRI>80 | I02.LL.18045 . (...) . (...) . (...) | 2700K | 5675 | 7389 | 9577 |
| 1430mm - 84W | 3000K | 5858 | 7625 | 9883 | ||
| 1710mm - 105W | 3500K | 5949 | 7743 | 10036 | ||
| 4000K | 6176 | 8039 | 10419 | |||
| 5000K | 6267 | 8157 | 10573 | |||
| CRI>90 | I02.LL.18045 . (...) . (...) . (...) | 2700K | 4768 | 6206 | 8044 | |
| 3000K | 4904 | 6384 | 8274 | |||
| 3500K | 4995 | 6502 | 8427 | |||
| 4000K | 5177 | 6739 | 8739 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1150mm | 67W | 67W (Direct) - 350mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 1430mm | 84W | 84W (Direct) - 350mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 1710mm | 105W | 105W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

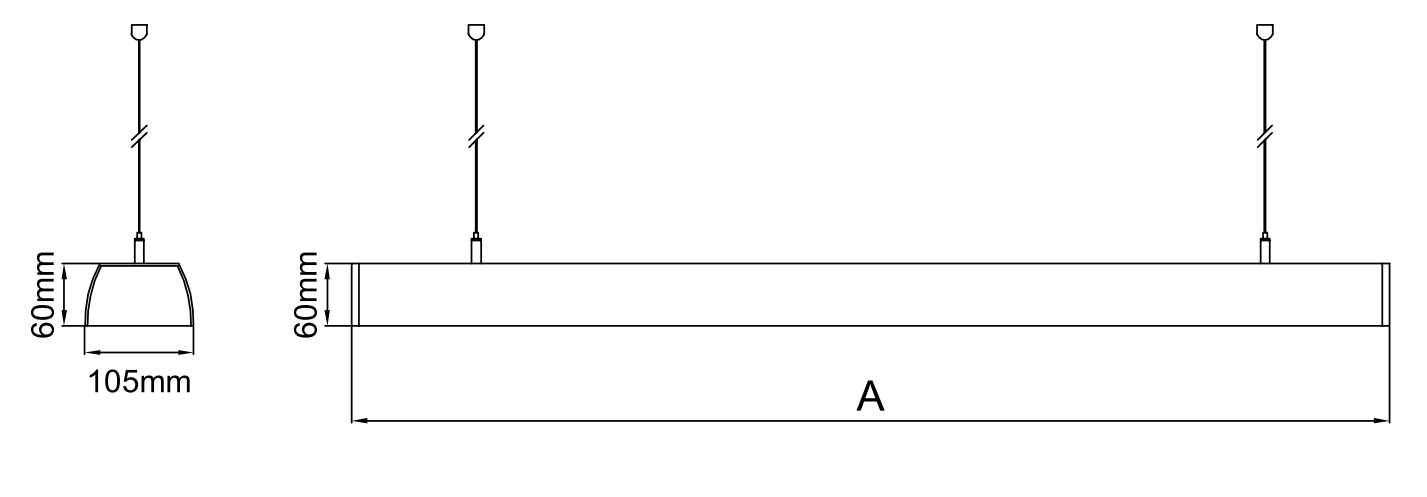

Teknik Çizimler

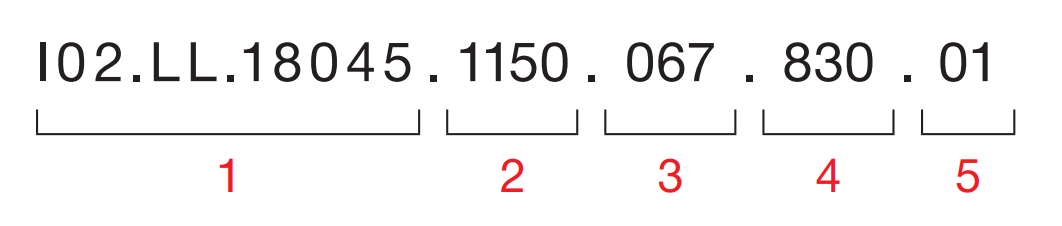

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
