Firefly 48V Midi
Ürün ikonları
| Input Voltage | 48V DC |
| Wattage | 20W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- With 48V DC input.
-- Intelligent cooling design with passive cooling technology.
-- With DC/DC transformer adapter suitable for Stucchi 48V rail system
-- Mechanical locking with 90° vertical and 350° horizontal movement capability
joint system.
-- Tempered glass.
-- DALI DIM option available.
-- Wireless DIM and Hot DIM, which are high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Narrow, Medium and Wide reflector angle options are available.
-- High CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 119lm/W.
-- High color compatibility: <3 SDCM
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 20W | CRI>90 | I01.MLT.18248 . (..) . (...) . (..) . (..) | 2700K | 2262 |
| 3000K | 2332 | |||
| 3500K | 2379 | |||
| 4000K | 2426 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.18248 . (..) . (...) . (..) . (..) | 2700K | 1741 | |
| 3000K | 1796 | |||
| 4000K | 1869 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 20 | 20W - 500mA | 927 | CRI>90 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 23° - Spot |  | 01 | white |
| 930 | CRI>90 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 35° - Medium |  | 02 | ral 9010 | ||
| 935 | CRI>90 - 3500K | 9840 | CRI>98 - 4000K |  | FL | 48° - Flood |  | 03 | black | ||
| 940 | CRI>90 - 4000K |  | 04 | gray | |||||||
 | 05 | dark gray | |||||||||
 | 06 | special color |
Teknik Çizimler

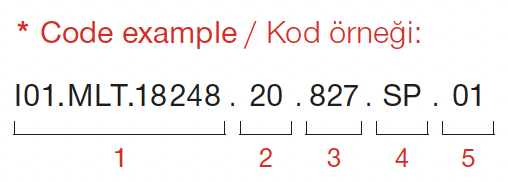

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color
DIM Seçenekleri
Aksesuarlar
