Flatbay
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 150W |
| Protection Class | IP65 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 150W | CRI>70 | O07.WL.16250 . (..) . (...) . (..) . (..) | 2700K | 23908 |
| 3000K | 24386 | |||
| 3500K | 24874 | |||
| 4000K | 25371 | |||
| 5000K | 25878 | |||
| 6500K | 26396 | |||
| CRI>80 | O07.WL.16250 . (..) . (...) . (..) . (..) | 2700K | 22137 | |
| 3000K | 22589 | |||
| 3500K | 23050 | |||
| 4000K | 23520 | |||
| 5000K | 24000 | |||
| 6500K | 24480 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 150W | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | FL | 80° - Flood |  | 01 | white |
| 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | W.F. | 110° - Wide Flood |  | 02 | ral 9010 | ||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | 03 | black | |||||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | 865 | CRI>80 - 6500K |  | 06 | special color | |||||

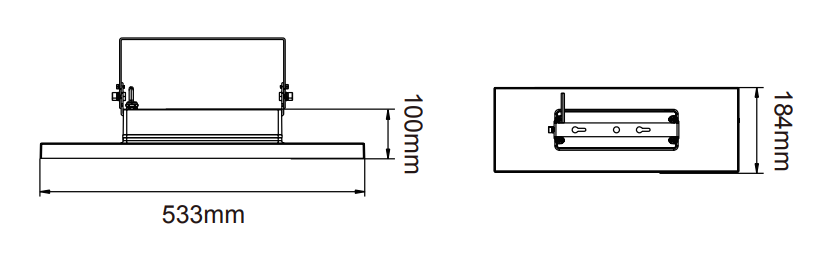

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power / Güç
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
