Foton Mini
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 2x35W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking with 30° vertical and 30° horizontal movement capability
joint system.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- High-tech control systems Wireless DIM, Hot DIM and
Dynamic White applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options
available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED
options are available.
-- Efficiency up to 144lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x35W | CRI>80 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 8184 |
| 3000K | 8408 | |||
| 3500K | 8628 | |||
| 4000K | 8984 | |||
| 5000K | 9610 | |||
| CRI>90 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 7354 | |
| 3000K | 7536 | |||
| 3500K | 7798 | |||
| 4000K | 8346 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2700K | 6200 | |
| 3000K | 6426 | |||
| 4000K | 6628 | |||
| Meat COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 1800K | 5010 | |
| Food COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 2400K | 5158 | |
| Pisces COB | I01.MLR.13002 . (..) . (...) . (..) . (..) | 6600K | 6820 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 35 | 2x35W - 900mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 2x20° - Spot |  | 01 | white |
| 31 | 2x31W - 800mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 2x30° - Medium |  | 02 | ral 9010 |
| 28 | 2x28W - 700mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 2x40° - Flood |  | 03 | black |
| 24 | 2x24W - 600mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | W.F. | 2x60° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

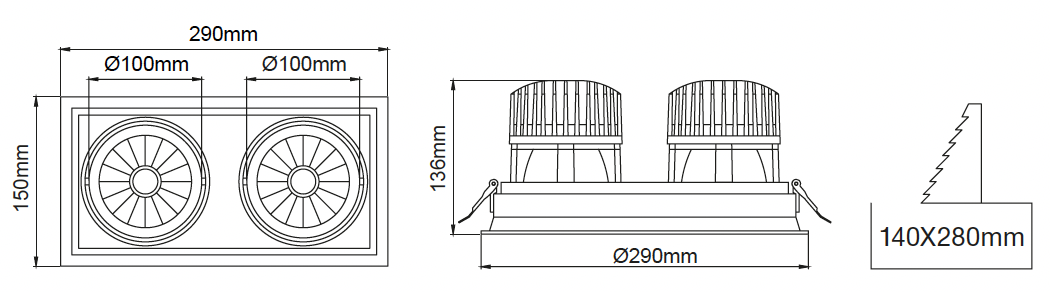

Teknik Çizimler

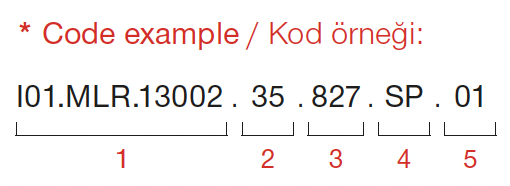

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

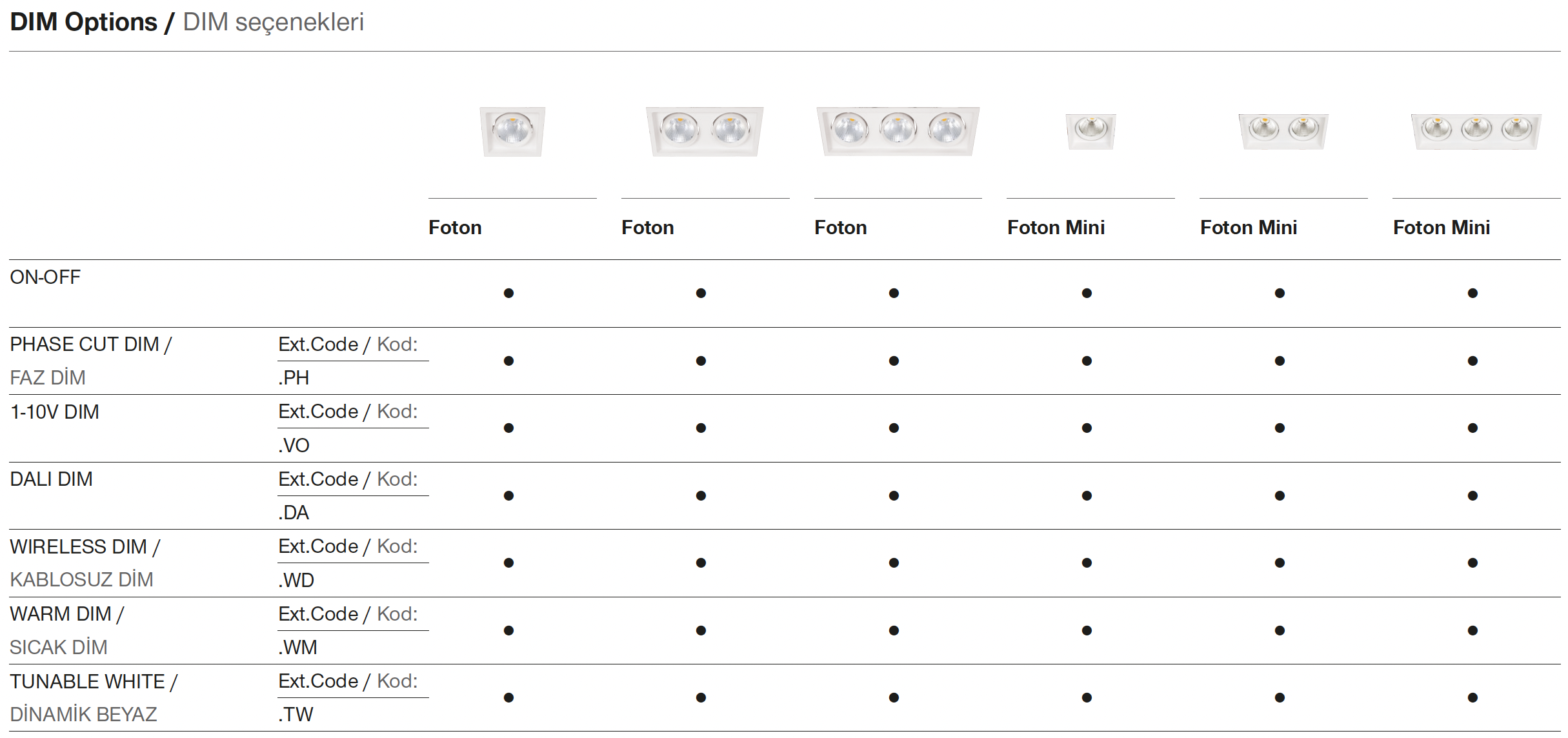

DIM Seçenekleri

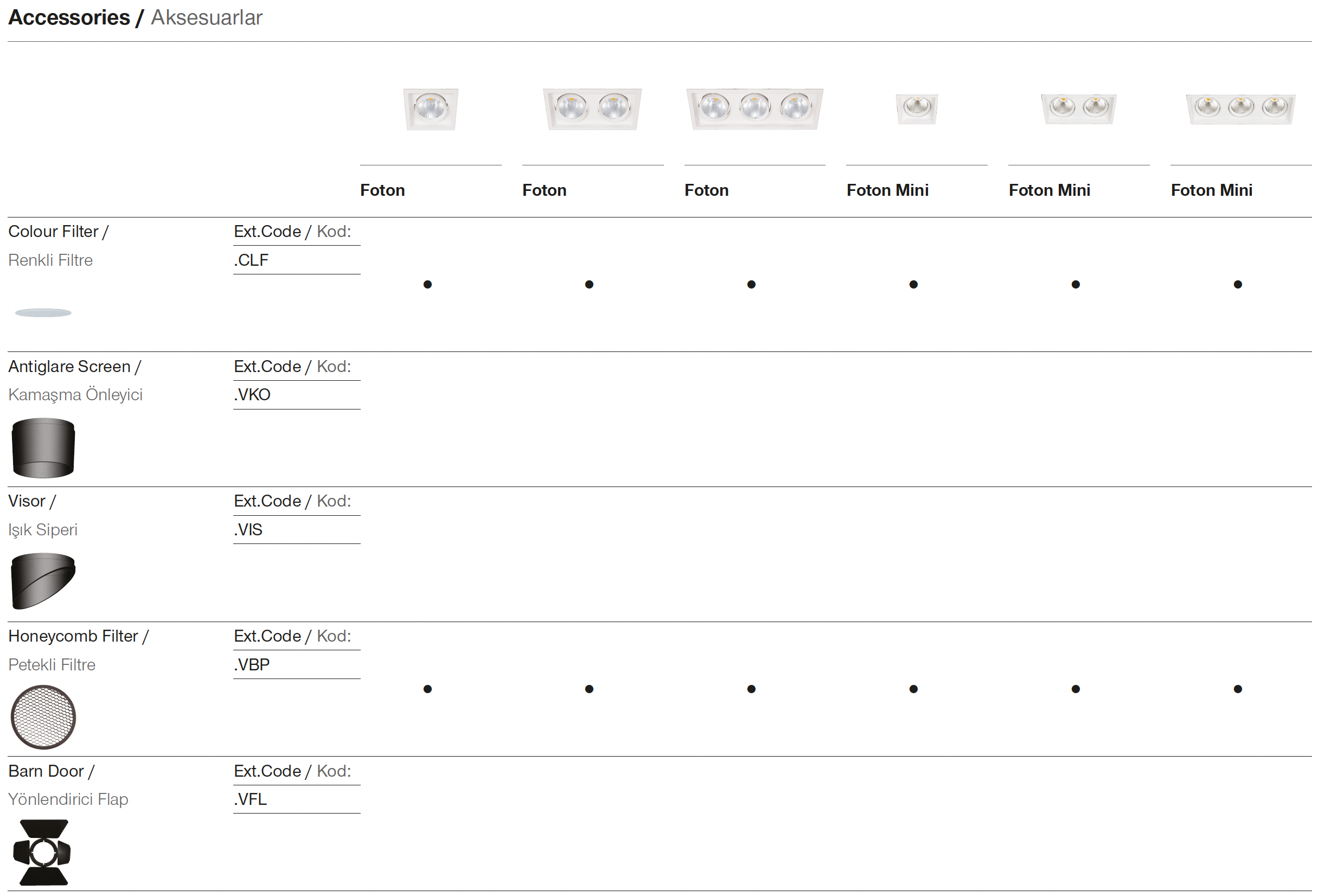

Aksesuarlar
