Inara

Name: Inara
Brand: AVOLUX
SKU: I01.MLR.40238

Ürün ikonları

Stok kodu: I01.MLR.40238

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

-- Mechanical locking with 60° vertical and 0° horizontal movement capability joint system.

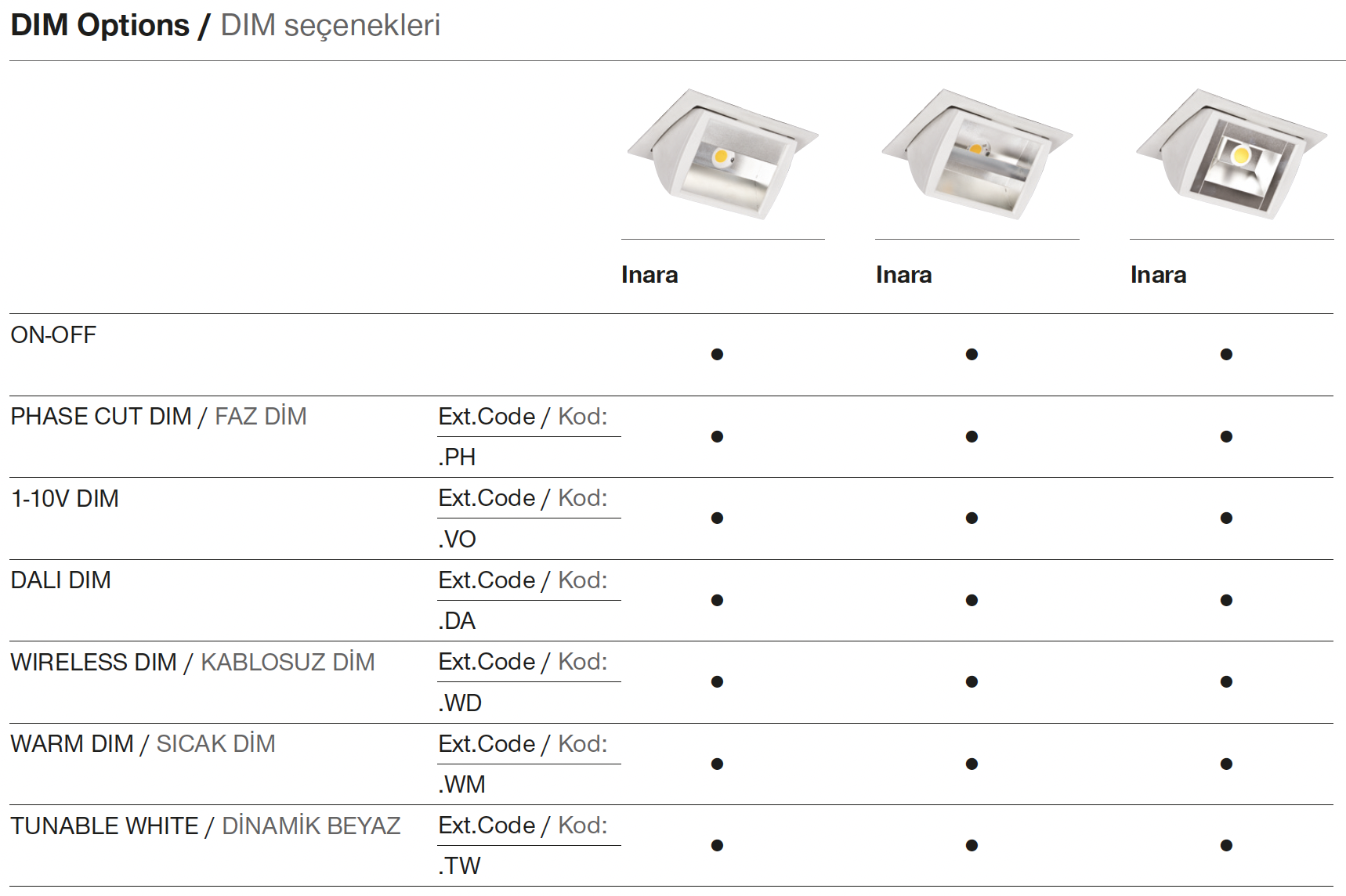

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

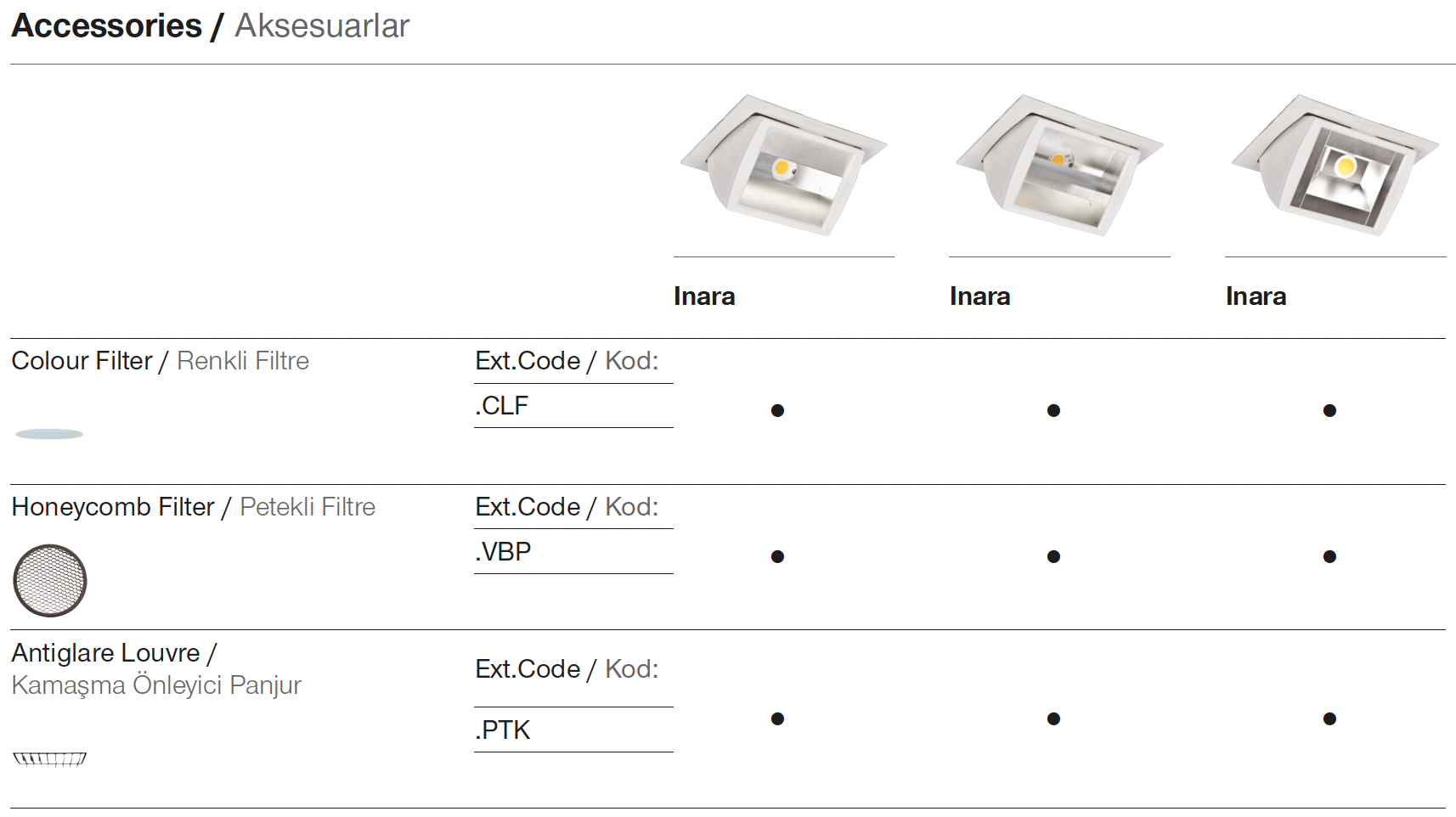

-- Honeycomb Filter, Anti-glare shutter and Color Filter accessories can be applied.

-- Full, Half Asymmetric and Oval reflector options are available.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- Efficiency up to 127lm/W.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
42W	CRI>80	I01.MLR.40238 . (..) . (...) . (..) . (..)	2700K	4608
			3000K	4723
			3500K	4888
			4000K	5060
			5000K	5363
	CRI>90	I01.MLR.40238 . (..) . (...) . (..) . (..)	2700K	4147
			3000K	4250
			3500K	4399
			4000K	4554
			5000K	X
	CRI>98	I01.MLR.40238 . (..) . (...) . (..) . (..)	2700K	3187
			3000K	3303
			4000K	3468
	Meat COB	I01.MLR.40238 . (..) . (...) . (..) . (..)	1800K	2445
	Food COB	I01.MLR.40238 . (..) . (...) . (..) . (..)	2400K	2710
	Pisces COB	I01.MLR.40238 . (..) . (...) . (..) . (..)	6600K	3576

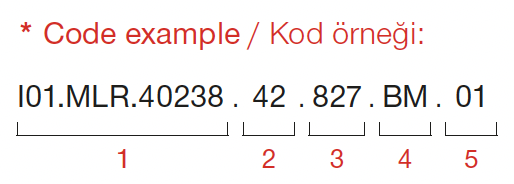

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
42	42W - 1050mA	827	CRI>80 - 2700K	9827	CRI>98 - 2700K	UN	2x25° - Batwing	01	white
35	35W - 900mA	830	CRI>80 - 3000K	9830	CRI>98 - 3000K	B.F.	2x45° - Batwing	02	ral 9010
31	31W - 800mA	835	CRI>80 - 3500K	9840	CRI>98 -4000K			03	black
28	28W - 700mA	840	CRI>80 - 4000K	MEAT	1800K			04	gray
		850	CRI>80 - 5000K	GOLD	2400K			05	dark gray
		927	CRI>90 - 2700K	fish	6600K			06	special color
		930	CRI>90 - 3000K
		935	CRI>90 - 3500K
		940	CRI>90 - 4000K
