Industrial
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 50-70W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, length | 146-103mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19201.1457.070.830.01 |
| Family Name | Industrial |
| Material | DKP Sheet |
| Format | linear |
| Profile Width | 146mm |
| Profile Height | 103mm |
| Installation Type | surface mounted |
| Productivity | >130lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 50W 250mA lm | 60W 300mA lm | 70W 350mA lm |
|---|---|---|---|---|---|---|
| 1457mm | CRI>80 | I02.LL.19201 . (...) . (...) . (...) . (...) | 2700K | 6091 | 8168 | 8384 |
| 3000K | 6286 | 8430 | 8653 | |||
| 3500K | 6383 | 8560 | 8787 | |||
| 4000K | 6627 | 8887 | 9122 | |||
| 5000K | 6725 | 9018 | 9257 | |||
| CRI>90 | I02.LL.19201 . (...) . (...) . (...) . (...) | 2700K | 5116 | 6861 | 7043 | |
| 3000K | 5263 | 7058 | 7244 | |||
| 3500K | 5360 | 7188 | 7378 | |||
| 4000K | 5555 | 7449 | 7646 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1457mm | 50W | 50W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 60W | 60W (Direct) - 300mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 70W | 70W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

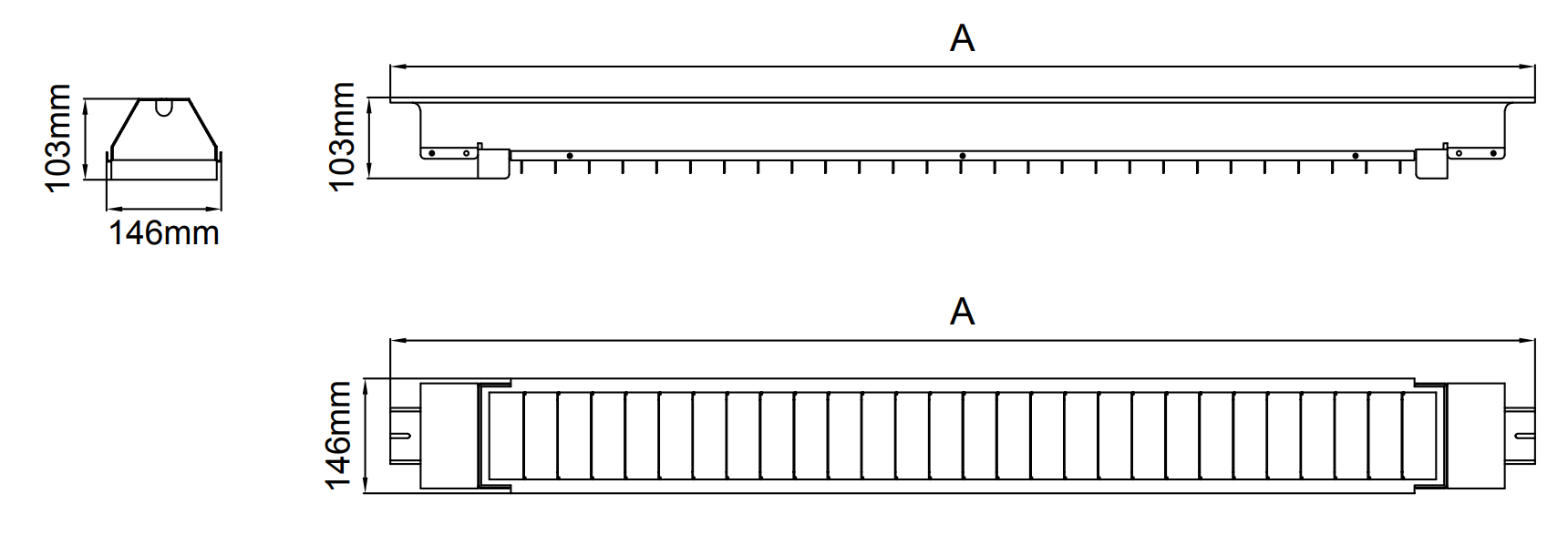

Teknik Çizimler

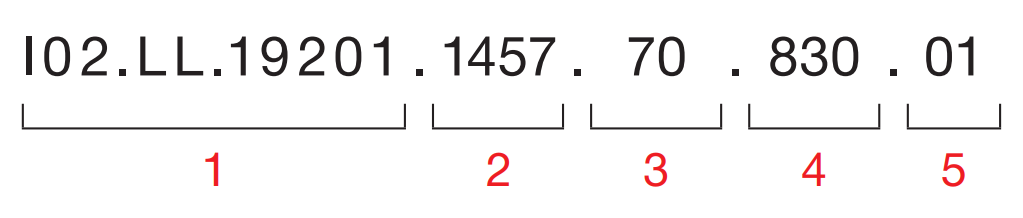

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
