Industrial
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 45W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 135-103mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19203.1450.045.830.01 |
| Family Name | Industrial |
| Material | DKP Sheet |
| Format | linear |
| Profile Width | 135mm |
| Profile Height | 103mm |
| Installation Type | surface mounted |
| Productivity | >127lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 45W 350mA lm |
|---|---|---|---|---|
| 1450mm | CRI>80 | I02.LL.19203 . (...) . (...) . (...) . (...) | 2700K | 5266 |
| 3000K | 5434 | |||
| 3500K | 5518 | |||
| 4000K | 5729 | |||
| 5000K | 5813 | |||
| CRI>90 | I02.LL.19203 . (...) . (...) . (...) . (...) | 2700K | 4423 | |
| 3000K | 4549 | |||
| 3500K | 4634 | |||
| 4000K | 4802 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1450mm | 45W | 45W (Direct) - 350mA |  | M.E. | 34° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
 | FL | 67° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
 | W.F. | 91° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
 | D.ASY. | Double Asymmetric | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||||
 | 06 | special color |
Teknik Çizimler

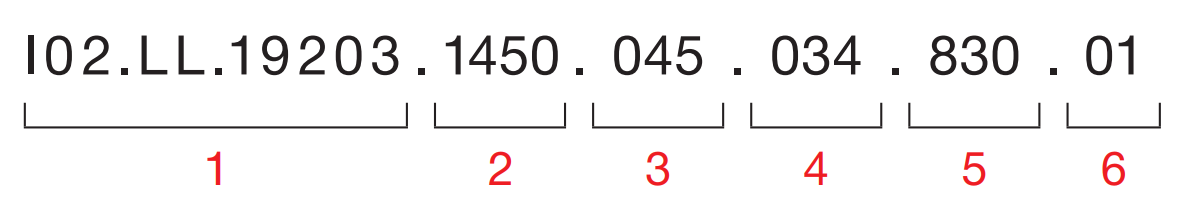

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
