Joker

Ürün ikonları

Input Voltage	220-240V / 50-60Hz
Wattage	19-25W
Protection Class	IP20
Optical	Lens
width, length	595x595mm

Stok kodu: I02.LL.19783

Kategoriler: Linear Led Panel Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

Açıklama

JOKER is included in the Avolux new generation panel luminaire series. Thanks to its slim body structure and specially designed lens optics, UGR<9, low glare and extra high lm/W efficiency are achieved. It can be preferred in many different projects such as offices, schools, hospitals, clinics and public buildings. T-Profile can be easily applied to ceilings and plasterboard ceiling systems. Thanks to the SMD LED technology applied inside the luminaire and its efficient optical structure, efficiency up to 125lm/W is achieved.

Ürün Kodu Tablosu

Length (A)	CRI	Order Code	Kelvin	19W 600mA lm	25W 800mA lm
595x595mm	CRI>80	I02.LL.19783 . (...) . (...) . (...) . (...	2700K	2141	2787
			3000K	2222	2892
			3500K	2344	3049
			4000K	2424	3155
			5000K	2449	3185
	CRI>90	I02.LL.19783 . (...) . (...) . (...) . (...)	2700K	1890	2460
			3000K	1899	2471
			3500K	1939	2523
			4000K	1979	2576

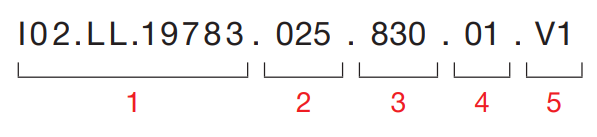

Length (A)	3	Watts - Driving Current	5	CRI/Kelvin	5	CRI/Kelvin	6	Product Color
595x595mm	27.5W	27.5W (Direct) - 900mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
	32W	32W (Direct) - 1050mA	827	CRI>80 - 2700K	927	CRI>90 - 2700K	01	white
			830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
			830	CRI>80 - 3000K	930	CRI>90 - 3000K	02	ral 9010
	19W	19W (Direct) - 600mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
	25W	25W (Direct) - 800mA	835	CRI>80 - 3500K	935	CRI>90 - 3500K	03	black
			840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
			840	CRI>80 - 4000K	940	CRI>90 - 4000K	04	gray
	12W	12W (Direct) - 350mA	850	CRI>80 - 5000K			05	dark gray
	17W	17W (Direct) - 500mA	850	CRI>80 - 5000K			05	dark gray
							06	special color
							06	special color
