Lisya Maxi
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 150W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED street lighting fixture.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- Tempered glass.
-- 10KV power surge protector can be integrated.
-- 220-240V / 50-60Hz energy input.
-- Suitable for use up to 12m pole height.
-- Suitable for use in M3 road standards.
-- Efficient optical structure in compliance with street lighting standards.
-- Transformer unit that does not require equipment can be intervened.
-- Console inner diameter max. Compatible with Ø80mm pole.
-- 1-10V, DALI and Astro dim options are available.
-- Intelligent street lighting control system can be applied.
-- Alternatively a motion sensor can be integrated.
-- Besides the standard 4000K light color, alternatively 2700K, 3000K,
3500K, 5000K and 6500K options are also available.
Ürün Kodu Tablosu
| Lisya Maxi / O07.ST.37305 | |
|---|---|
| System Power | 150W |
| Luminaire Output Lumen CRI>70 - 4000K | 26519lm |
| Driving Current | 55m |

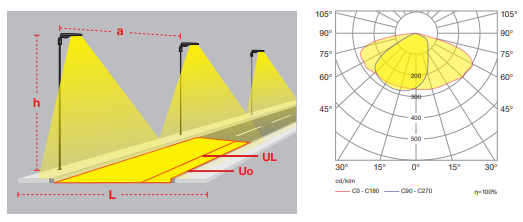

| Mast Span (a) | 12m |
| Mast Height (h) | 7m |
| Lighting Class | M3 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.37305.150.740.05 |
| Family Name | Lisya Maxi |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 150W |
| Number of LEDs | 300 |
| Circuit | 24S2P |
| LED Type | 2835 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

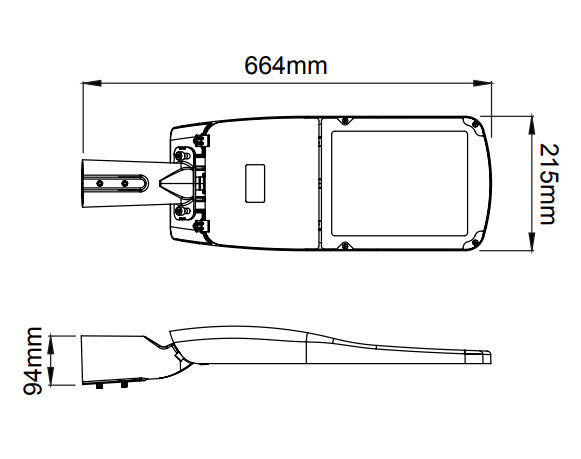

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
