Lotus
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 28-64W |
| Protection Class | IP44 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 154.5-85.5mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19350.935.64.830.01 |
| Family Name | Lotus |
| Material | Aluminum |
| Format | linear |
| Profile Width | 154.5mm |
| Profile Height | 85.5mm |
| Installation Type | surface mounted |
| Productivity | >114lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | microprismatic |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 28W 200mA lm | 28W 200mA lm | 42.5W 300mA lm |
|---|---|---|---|---|---|---|
| 635mm | CRI>80 | I02.LL.19350 . (...) . (...) . (...) . (...) | 2700K | 2985 | 3699 | 4453 |
| 3000K | 3081 | 3818 | 4595 | |||
| 3500K | 3128 | 3877 | 4667 | |||
| 4000K | 3248 | 4025 | 4845 | |||
| 5000K | 3296 | 4084 | 4916 | |||
| CRI>90 | I02.LL.19350 . (...) . (...) . (...) . (...) | 2700K | 2507 | 3107 | 3740 | |
| 3000K | 2579 | 3196 | 3847 | |||
| 3500K | 2627 | 3255 | 3919 | |||
| 4000K | 2722 | 3374 | 4061 |
| Length (A) | CRI | Order Code | Kelvin | 42W 200mA lm | 55W 250mA lm | 64W 300mA lm |
|---|---|---|---|---|---|---|
| 935mm | CRI>80 | I02.LL.19350 . (...) . (...) . (...) . (...) | 2700K | 4483 | 5813 | 6706 |
| 3000K | 4627 | 5999 | 6920 | |||
| 3500K | 4698 | 6092 | 7028 | |||
| 4000K | 4878 | 6325 | 7296 | |||
| 5000K | 4950 | 6418 | 7403 | |||
| CRI>90 | I02.LL.19350 . (...) . (...) . (...) . (...) | 2700K | 3766 | 4883 | 5633 | |
| 3000K | 3874 | 5023 | 5794 | |||
| 3500K | 3945 | 5116 | 5901 | |||
| 4000K | 4089 | 5302 | 6116 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 635mm | 28W | 28W (Direct) - 200mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 35W | 35W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 42.5W | 42.5W (Direct) - 300mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||
| 935mm | 42W | 42W (Direct) - 200mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 55W | 55W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||
| 64W | 64W (Direct) - 300mA |  | 06 | special color |

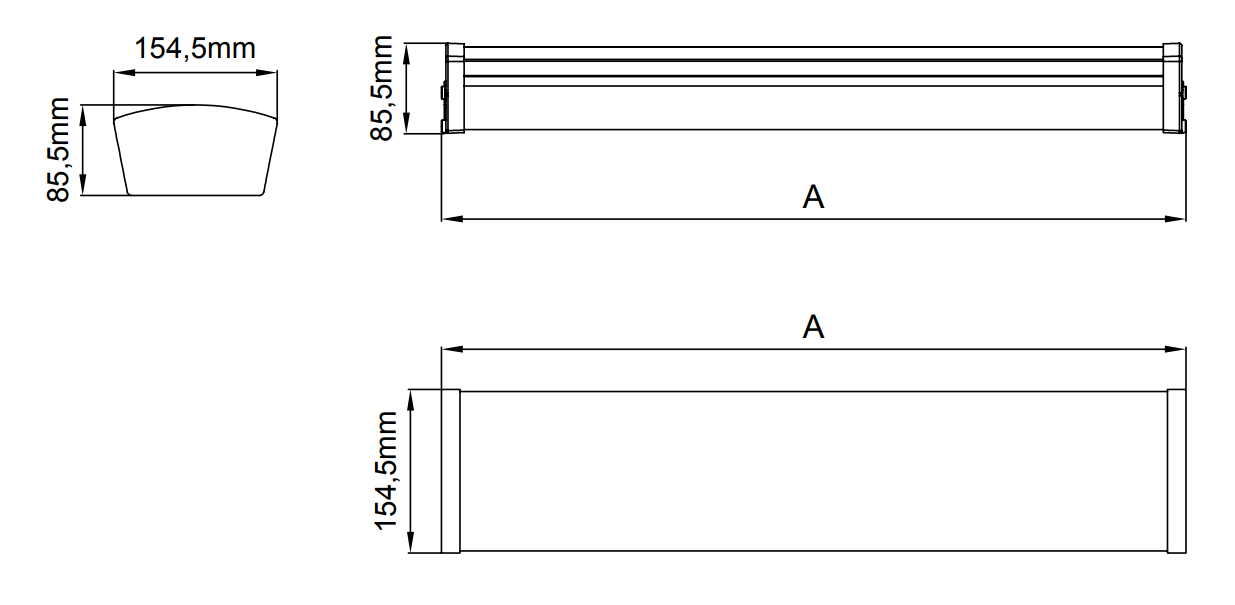

Teknik Çizimler
Kod Örneği
