Mini Mofos
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 2x28W |
| Protection Class | IP20 |
| Shape | built-in |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design with passive cooling technology.
-- Mechanical locking joint system with 30° vertical and 30° horizontal movement capability.
-- Tempered glass.
-- Classic DALI, 1-10V and Phase DIM options can be applied.
-- Wireless DIM, Hot DIM and Dynamic White applications, which are high-tech control systems, can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 as well as optional special color options can be applied.
--Honeycomb Filter and Color Filter accessory options are applicable.
-- Very Narrow, Narrow, Medium, Wide and Very Wide reflector angle options are available.
-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.
-- Efficiency up to 140lm/W.
-- High color compatibility: <3 SDCM.
-- Emergency lighting kit system can be applied.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x28W | CRI>80 | I01.MLR.17014 . (..) . (...) . (..) . (..) | 2700K | 6810 |
| 3000K | 7112 | |||
| 3500K | 7192 | |||
| 4000K | 7470 | |||
| 5000K | 7986 | |||
| CRI>90 | I01.MLR.17014 . (..) . (...) . (..) . (..) | 2700K | 5512 | |
| 3000K | 6088 | |||
| 3500K | 6250 | |||
| 4000K | 6320 | |||
| 5000K | X | |||
| CRI>98 | I01.MLR.17014 . (..) . (...) . (..) . (..) | 2700K | 4918 | |
| 3000K | 5128 | |||
| 4000K | 5486 | |||
| Meat COB | I01.MLR.17014 . (..) . (...) . (..) . (..) | 1800K | 4050 | |
| Food COB | I01.MLR.17014 . (..) . (...) . (..) . (..) | 2400K | 4226 | |
| Pisces COB | I01.MLR.17014 . (..) . (...) . (..) . (..) | 6600K | 5810 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 28 | 2x28W - 700mA | 827 | CRI>80 - 2700K | 9827 | CRI>98 - 2700K |  | SP | 2x20° - Spot |  | 01 | white |
| 24 | 2x24W - 600mA | 830 | CRI>80 - 3000K | 9830 | CRI>98 - 3000K |  | M.E. | 2x30° - Medium |  | 02 | ral 9010 |
| 20 | 2x20W - 500mA | 835 | CRI>80 - 3500K | 9840 | CRI>98 -4000K |  | FL | 2x40° - Flood |  | 03 | black |
| 15 | 2x15W - 350mA | 840 | CRI>80 - 4000K | MEAT | 1800K |  | W.F. | 2x60° - Wide Flood |  | 04 | gray |
| 850 | CRI>80 - 5000K | GOLD | 2400K |  | 05 | dark gray | |||||
| 927 | CRI>90 - 2700K | fish | 6600K |  | 06 | special color | |||||
| 930 | CRI>90 - 3000K | ||||||||||
| 935 | CRI>90 - 3500K | ||||||||||
| 940 | CRI>90 - 4000K |

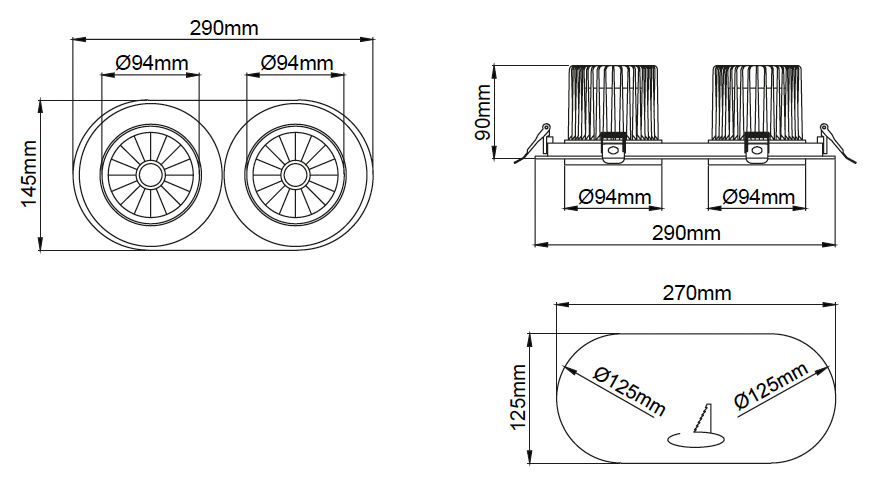

Teknik Çizimler

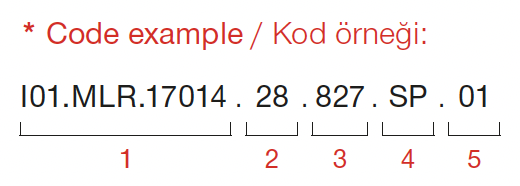

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

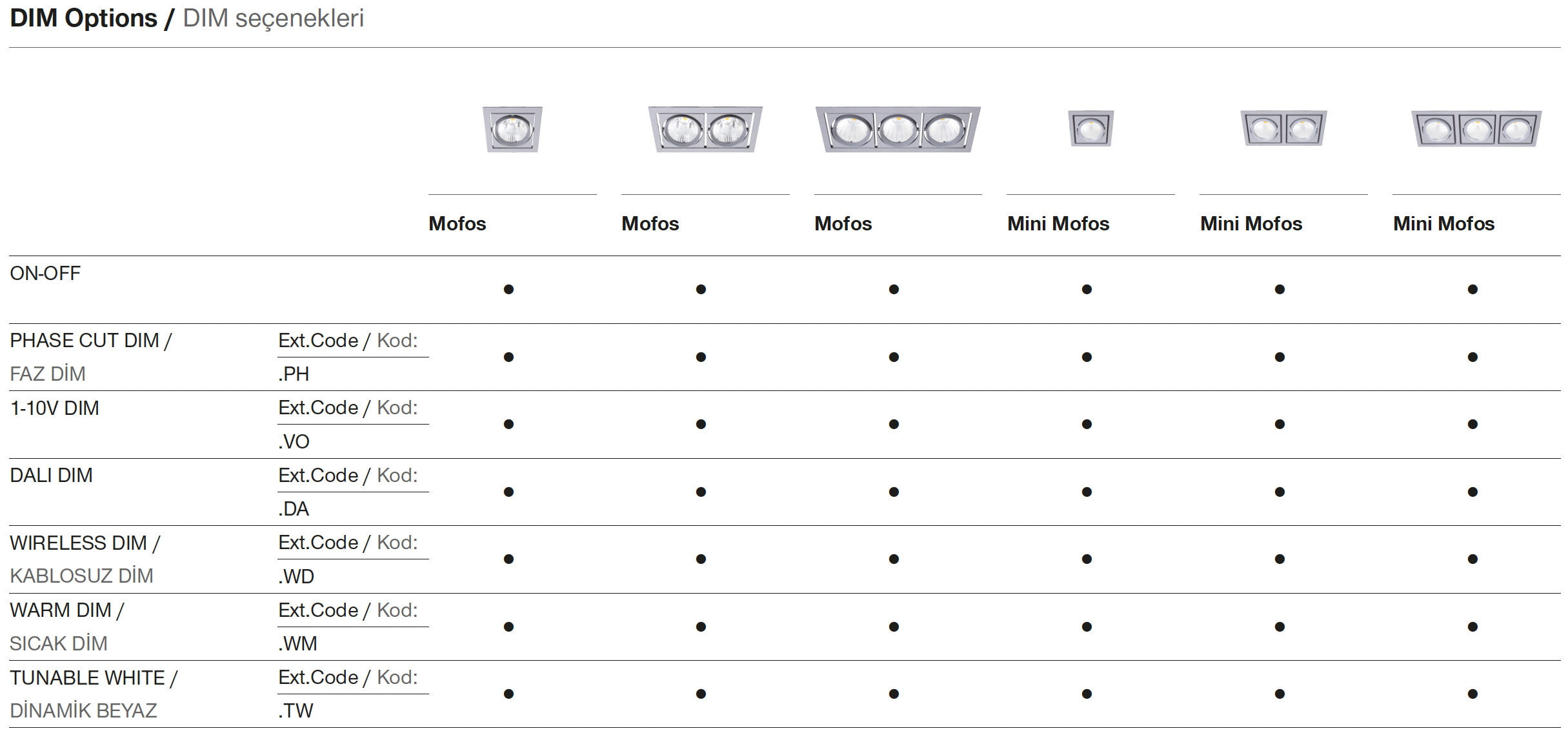

DIM Seçenekleri

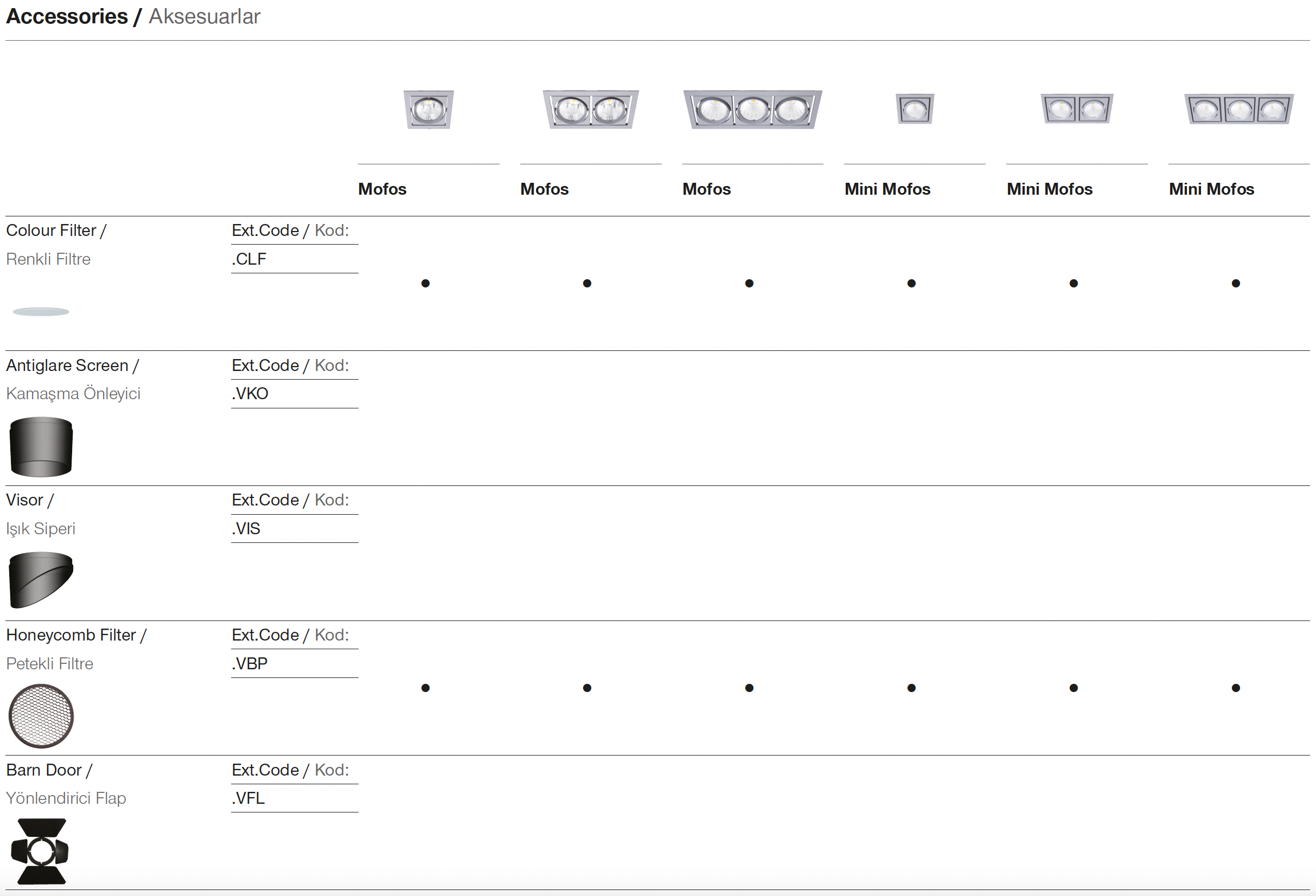

Aksesuarlar
