Multi Herkül ST
Ana görsel
Ürün görseli
Ürün görseli

Multi Herkül ST

Ürün ikonları
015 020 025 030 035 040 055 060 100 115 130
LED
Input Voltage 220-240V / 50-60Hz
Wattage 4x100W
Protection Class IP66
Shape Pole Mounted
Optical Lens

Stok kodu: O07.ST.16924

Kategoriler: Pole Mounted Street Fixtures Series

+

Açıklama

-- Pole mounting option with single and double adapters.

-- Corrosion resistant aluminum injection body.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- Tempered glass.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- High lighting comfort.
-- Color tolerance max. 3SDCM.
-- Suitable for use up to 9m pole height.
-- DALI and 1-10V options are available.
+

Ürün Kodu Tablosu

Multi Hercules ST / O07.ST.16924
LEDpower LED
System Power4x100W
Luminaire Output Lumen2700K4x10394
3000K4x10514
3500K4x10998
4000K4x11239
5000K4x11360
6500K4x11481
Driving Current825mA
Dali Dim Option✔️
+

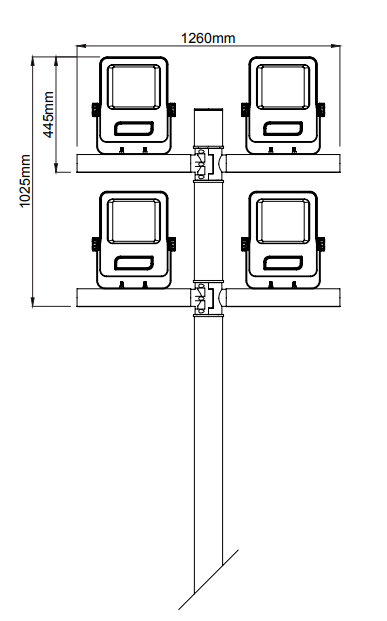

Teknik Çizimler









+

Kod Örneği




+

DIM Seçenekleri


+

Aksesuarlar
