Narrow Direct / Indirect
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 30-87W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 55x81mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19183.1135.049.830.01 |
| Family Name | Narrow |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 55mm |
| Profile Height | 81mm |
| Installation Type | Stalactite |
| Productivity | >94lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
| Alternative Diffuser UGR<19 | microprismatic |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm ↓ | 10W 250mA lm ↑ | 27W 350mA lm ↓ | 12W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 855mm | CRI>80 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 1669 | 831 | 2252 | 1081 |
| 3000K | 1722 | 858 | 2324 | 1116 | |||
| 3500K | 1749 | 871 | 2360 | 1133 | |||
| 4000K | 1816 | 905 | 2450 | 1177 | |||
| 5000K | 1842 | 918 | 2486 | 1194 | |||
| CRI>90 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 1402 | 698 | 1891 | 908 | |
| 3000K | 1442 | 718 | 1945 | 934 | |||
| 3500K | 1468 | 732 | 1981 | 952 | |||
| 4000K | 1522 | 758 | 2053 | 986 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm ↓ | 12W 250mA lm ↑ | 34W 350mA lm ↓ | 15W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1135mm | CRI>80 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 2029 | 1009 | 2866 | 1365 |
| 3000K | 2094 | 1041 | 2957 | 1408 | |||
| 3500K | 2127 | 1057 | 3003 | 1430 | |||
| 4000K | 2208 | 1098 | 3118 | 1485 | |||
| 5000K | 2240 | 1114 | 3163 | 1506 | |||
| CRI>90 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 1705 | 847 | 2406 | 1146 | |
| 3000K | 1753 | 872 | 2475 | 1179 | |||
| 3500K | 1785 | 888 | 2521 | 1201 | |||
| 4000K | 1851 | 920 | 2612 | 1244 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm ↓ | 14W 250mA lm ↑ | 43W 350mA lm ↓ | 20W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1415mm | CRI>80 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 2592 | 1202 | 3693 | 1856 |
| 3000K | 2674 | 1240 | 3811 | 1916 | |||
| 3500K | 2716 | 1259 | 3870 | 1945 | |||
| 4000K | 2820 | 1308 | 4018 | 2020 | |||
| 5000K | 2860 | 1327 | 4077 | 2049 | |||
| CRI>90 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 2177 | 1009 | 3101 | 1559 | |
| 3000K | 2239 | 1038 | 3189 | 1604 | |||
| 3500K | 2280 | 1058 | 3248 | 1633 | |||
| 4000K | 2364 | 1096 | 3367 | 1693 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm ↓ | 17W 250mA lm ↑ | 51W 350mA lm ↓ | 24W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1695mm | CRI>80 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 3176 | 1490 | 4506 | 2272 |
| 3000K | 3277 | 1538 | 4651 | 2344 | |||
| 3500K | 3329 | 1562 | 4723 | 2381 | |||
| 4000K | 3456 | 1622 | 4903 | 2472 | |||
| 5000K | 3506 | 1646 | 4975 | 2508 | |||
| CRI>90 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 2668 | 1252 | 3784 | 1908 | |
| 3000K | 2744 | 1288 | 3892 | 1963 | |||
| 3500K | 2794 | 1312 | 3964 | 1999 | |||
| 4000K | 2897 | 1359 | 4108 | 2072 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm ↓ | 20W 250mA lm ↑ | 59W 350mA lm ↓ | 28W 350mA lm ↑ |
|---|---|---|---|---|---|---|---|
| 1975mm | CRI>80 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 3783 | 1791 | 5333 | 2677 |
| 3000K | 3903 | 1848 | 5504 | 2763 | |||
| 3500K | 3964 | 1877 | 5589 | 2806 | |||
| 4000K | 4116 | 1949 | 5802 | 2913 | |||
| 5000K | 4175 | 1977 | 5888 | 2956 | |||
| CRI>90 | I02.LL.19183 . (...) . (...) . (...) . (...) | 2700K | 3178 | 1504 | 4478 | 2249 | |
| 3000K | 3268 | 1547 | 4606 | 2313 | |||
| 3500K | 3327 | 1576 | 4692 | 2356 | |||
| 4000K | 3456 | 1633 | 4862 | 2441 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 855mm | 30W | 20W (Direct) 10W (Indirect)- 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 39W | 27W (Direct) 12W (Indirect)- 350mA | |||||||||
| 1135mm | 36W | 24W (Direct) 12W (Indirect)- 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 49W | 34W (Direct) 15W (Indirect)- 350mA | |||||||||
| 1415mm | 44W | 30W (Direct) 14W (Indirect)- 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 63W | 43W (Direct) 20W (Indirect)- 350mA | |||||||||
| 1695mm | 53W | 36W (Direct) 17W (Indirect)- 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 75W | 51W (Direct) 24W (Indirect)- 350mA | |||||||||
| 1975mm | 62W | 42W (Direct) 20W (Indirect)- 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 87W | 59W (Direct) 28W (Indirect)- 350mA | |||||||||
 | 06 | special color |

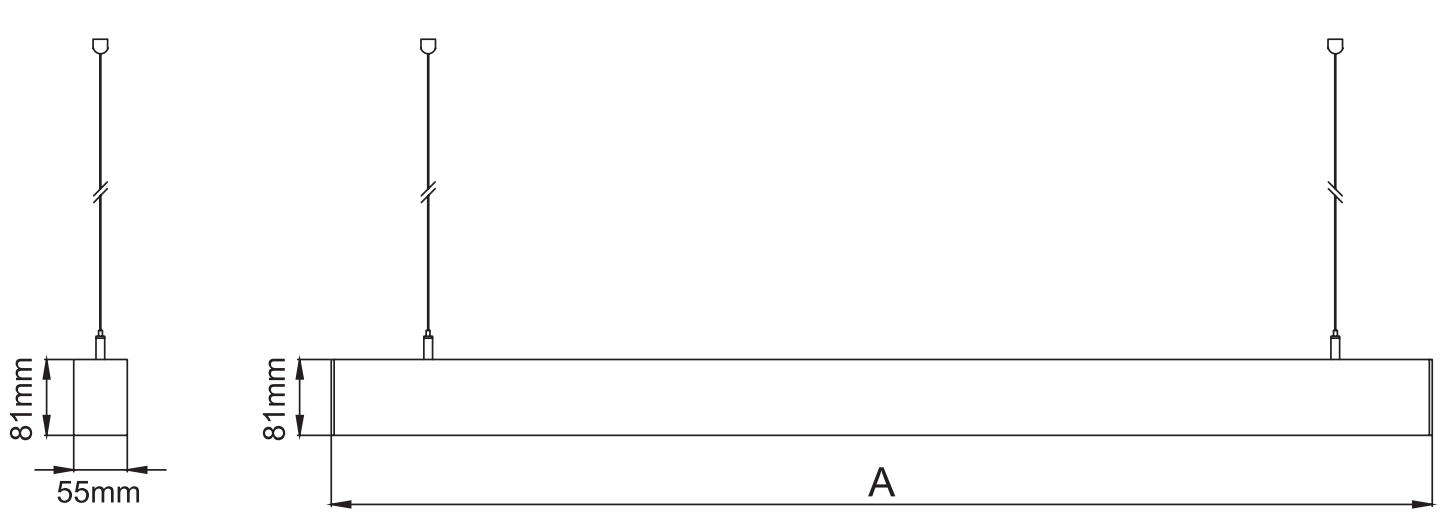

Teknik Çizimler

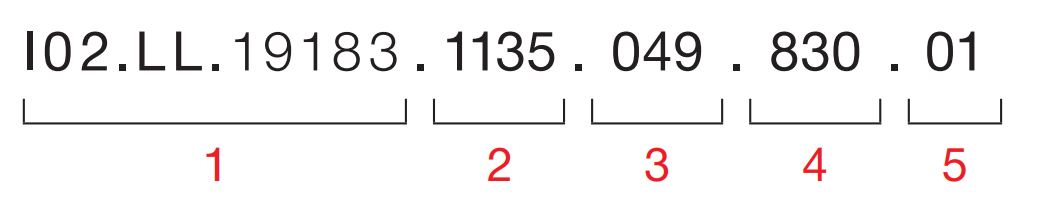

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
