Narrow Recessed
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 20-59W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Diffusor |
| Breite, Höhe | 47-80mm |
| Montageart | eingebaut |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.19190.1162.034.830.01 |
| Nachname | Schmaler Einbau |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 47mm |
| Profilhöhe | 60mm |
| Installationstyp | eingebaut |
| Produktivität | >63lm/W |
| CRI | 80 |
| Lichtverteilung | Symmetrischer Weitwinkel |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Opal-Plexi |
| Alternativer Diffusor UGR<19 | mikroprismatisch |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 18W 250mA lm | 25W 350mA lm |
|---|---|---|---|---|---|
| 882mm | CRI>80 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 1396 | 1758 |
| 3000K | 1440 | 1814 | |||
| 3500K | 1463 | 1842 | |||
| 4000K | 1519 | 1913 | |||
| 5000K | 1541 | 1941 | |||
| CRI>90 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 1172 | 1477 | |
| 3000K | 1206 | 1519 | |||
| 3500K | 1228 | 1547 | |||
| 4000K | 1273 | 1603 |
| Länge (A) | CRI | Bestellcode | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1162 mm | CRI>80 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 1698 | 2238 |
| 3000K | 1753 | 2309 | |||
| 3500K | 1780 | 2345 | |||
| 4000K | 1848 | 2435 | |||
| 5000K | 1875 | 2471 | |||
| CRI>90 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 1426 | 1880 | |
| 3000K | 1467 | 1933 | |||
| 3500K | 1494 | 1969 | |||
| 4000K | 1549 | 2041 |
| Länge (A) | CRI | Bestellcode | Kelvin | 30W 250mA lm | 42W 350mA lm |
|---|---|---|---|---|---|
| 1442 mm | CRI>80 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 2169 | 2883 |
| 3000K | 2238 | 2975 | |||
| 3500K | 2273 | 3012 | |||
| 4000K | 2360 | 3137 | |||
| 5000K | 2394 | 3183 | |||
| CRI>90 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 1822 | 2422 | |
| 3000K | 1874 | 2491 | |||
| 3500K | 1909 | 2537 | |||
| 4000K | 1978 | 2629 |
| Länge (A) | CRI | Bestellcode | Kelvin | 36W 250mA lm | 50W 350mA lm |
|---|---|---|---|---|---|
| 1722 mm | CRI>80 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 2658 | 3518 |
| 3000K | 2743 | 3631 | |||
| 3500K | 2785 | 3687 | |||
| 4000K | 2892 | 3828 | |||
| 5000K | 2934 | 3884 | |||
| CRI>90 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 2232 | 2955 | |
| 3000K | 2296 | 3040 | |||
| 3500K | 2339 | 3096 | |||
| 4000K | 2424 | 3209 |
| Länge (A) | CRI | Bestellcode | Kelvin | 42W 250mA lm | 59W 350mA lm |
|---|---|---|---|---|---|
| 2002mm | CRI>80 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 3165 | 4164 |
| 3000K | 3266 | 4298 | |||
| 3500K | 3317 | 4364 | |||
| 4000K | 3444 | 4531 | |||
| 5000K | 3494 | 4598 | |||
| CRI>90 | I02.LL.19185 . (...) . (...) . (...) . (...) | 2700K | 2659 | 3498 | |
| 3000K | 2735 | 3598 | |||
| 3500K | 2785 | 3665 | |||
| 4000K | 2887 | 3798 |
| 2 | Länge (A) | Schnittgröße | 3 | Watt – Antriebsstrom | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Produktfarbe | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 860 mm |  | 38x855mm | 20W | 20 W (direkt) – 250 mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 27W | 27 W (direkt) – 350 mA | |||||||||||
| 1140 mm |  | 38x1135mm | 24W | 24 W (direkt) – 250 mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34 W (direkt) – 350 mA | |||||||||||
| 1420 mm |  | 38x1415mm | 30W | 30 W (direkt) – 250 mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 42W | 42 W (direkt) – 350 mA | |||||||||||
| 1700 mm |  | 38x1695mm | 36W | 26 W (direkt) – 250 mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | |
| 51W | 51 W (direkt) – 350 mA | |||||||||||
| 1980 mm |  | 38x1975mm | 42W | 42 W (direkt) – 250 mA | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 59W | 59 W (direkt) – 350 mA | |||||||||||
 | 06 | Sonderfarbe |

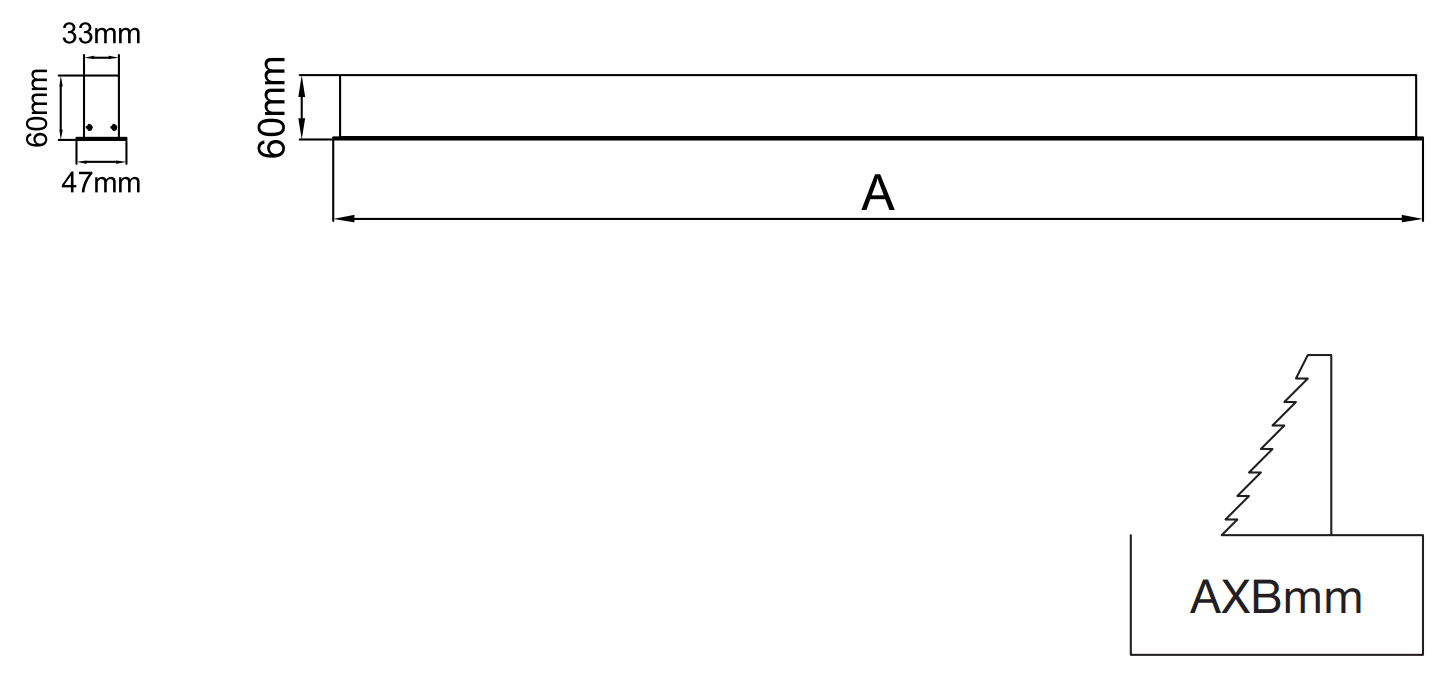

Teknik Çizimler

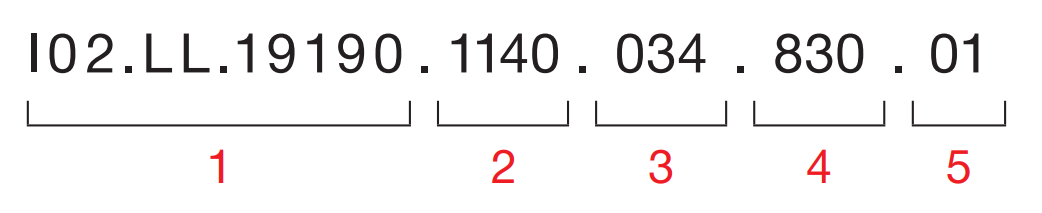

Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- CRI / Kelvin
5- Farbe / Produktfarbe
6- Steuerungstyp
