Narrow Suspendant
Ürün ikonları
| Eingangsspannung | 220-240V / 50-60Hz |
| Wattzahl | 19,5–109 W |
| Schutzklasse | IP20 |
| Form | Linear |
| Optisch | Linse |
| Breite, Höhe | 55x81mm |
| Montageart | Stalaktit |
AÇIKLAMA
Açıklama
| Ankerdaten | |
|---|---|
| Produktcode | I02.LL.19284.1140.056.830.01 |
| Nachname | Eng |
| Material | Aluminiumprofil |
| Format | linear |
| Profilbreite | 55mm |
| Profilhöhe | 81mm |
| Installationstyp | Pendelleuchte, Aufputzmontage und Schienenmontage |
| Produktivität | >107lm/W |
| CRI | 80 |
| Lichtverteilung | Medium, Large, Extra Large, Single Asymmetric und Double Asymmetric |
| Schutzklasse | 20 |
| Leuchtenleben | L70/B50 50000h |
| Optisch | Objektiv optisch |
Ürün Kodu Tablosu
| Länge (A) | CRI | Bestellcode | Kelvin | 19,5W 250mA lm | 27W 350mA lm | 39W 500mA lm | 56W 700mA lm |
|---|---|---|---|---|---|---|---|
| 1140 mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 2179 | 2974 | 4116 | 5343 |
| 3000K | 2249 | 3069 | 4247 | 5691 | |||
| 3500K | 2283 | 3117 | 4313 | 5779 | |||
| 4000K | 2371 | 3236 | 4478 | 6000 | |||
| 5000K | 2406 | 3283 | 4544 | 6088 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 1830 | 2498 | 3457 | 4632 | |
| 3000K | 1883 | 2570 | 3556 | 4765 | |||
| 3500K | 1917 | 2617 | 3622 | 4853 | |||
| 4000K | 1987 | 2712 | 3753 | 5029 |
| Länge (A) | CRI | Bestellcode | Kelvin | 29W 250mA lm | 41W 350mA lm | 58W 500mA lm | 82W 700mA lm |
|---|---|---|---|---|---|---|---|
| 1700 mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 3211 | 4378 | 6067 | 8125 |
| 3000K | 3314 | 4518 | 6261 | 8385 | |||
| 3500K | 3365 | 4588 | 6358 | 8515 | |||
| 4000K | 3494 | 4763 | 6601 | 8840 | |||
| 5000K | 3545 | 4833 | 6698 | 8970 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 2697 | 3677 | 5096 | 6825 | |
| 3000K | 2774 | 3782 | 5242 | 7020 | |||
| 3500K | 2826 | 3852 | 5339 | 7150 | |||
| 4000K | 2929 | 3992 | 5533 | 7410 |
| Länge (A) | CRI | Bestellcode | Kelvin | 39W 250mA lm | 51W 350mA lm | 78W 500mA lm | 109W 700mA lm |
|---|---|---|---|---|---|---|---|
| 2260 mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 4356 | 5937 | 8228 | 11020 |
| 3000K | 4495 | 6127 | 8491 | 11372 | |||
| 3500K | 4565 | 6221 | 8623 | 11549 | |||
| 4000K | 4739 | 6459 | 8952 | 11989 | |||
| 5000K | 4809 | 6554 | 9084 | 12166 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 3658 | 4986 | 6911 | 9256 | |
| 3000K | 3763 | 5129 | 7109 | 9521 | |||
| 3500K | 3833 | 5224 | 7241 | 9697 | |||
| 4000K | 3972 | 5414 | 7504 | 10050 |
| 2 | Länge (A) | 3 | Watt – Antriebsstrom | 4 | Lichtwinkel | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Produktfarbe | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1140 mm | 19,5 W | 19,5 W (direkt) – 250 mA |  | MICH. | 30° – Mittel | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | Weiß | |
| 27W | 27 W (direkt) – 350 mA | ||||||||||||
| 39W | 39 W (direkt) – 500 mA |  | FL | 60° - Überschwemmung | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 56W | 56 W (direkt) – 700 mA | ||||||||||||
| 1700 mm | 29W | 29 W (direkt) – 250 mA |  | W.F. | 90° – Breite Flut | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | Schwarz | |
| 41W | 41 W (direkt) – 350 mA | ||||||||||||
| 58W | 58 W (direkt) – 500 mA |  | S.ASY. | Einfach asymmetrisch | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | grau | ||
| 82W | 82 W (direkt) – 700 mA | ||||||||||||
| 2260 mm | 39W | 39 W (direkt) – 250 mA |  | D.ASY. | Doppelt asymmetrisch | 850 | CRI>80 - 5000K |  | 05 | dunkelgrau | |||
| 51W | 51 W (direkt) – 350 mA | ||||||||||||
| 78W | 78 W (direkt) – 500 mA |  | 06 | Sonderfarbe | |||||||||
| 109W | 109 W (direkt) – 700 mA |

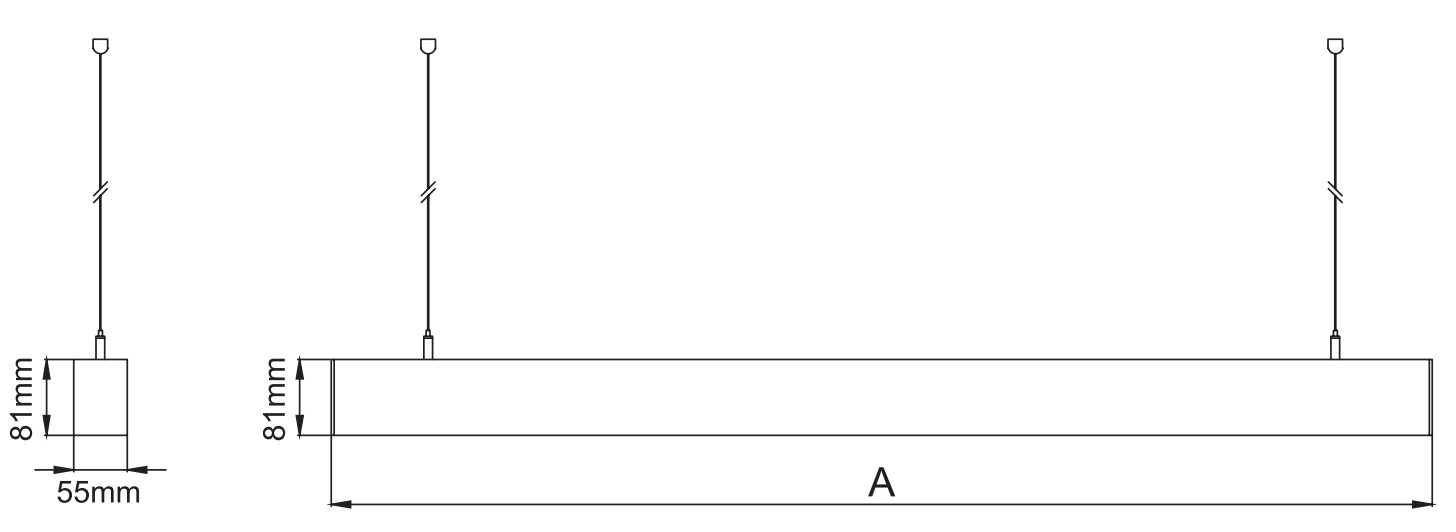

Teknik Çizimler
Kod Örneği
1- Produktcode / Armaturencode
2- Länge
3- Macht
4- Abstrahlwinkel
5- CRI / Kelvin
6- Farbe / Produktfarbe
7- Steuerungstyp
