Narrow Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 19.5-109W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 55x81mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19284.1140.056.830.01 |
| Family Name | Narrow |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 55mm |
| Profile Height | 81mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >107lm/W |
| CRI | 80 |
| Light Distribution | Medium, Large, Extra Large, Single Asymmetric and Double Asymmetric |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 19.5W 250mA lm | 27W 350mA lm | 39W 500mA lm | 56W 700mA lm |
|---|---|---|---|---|---|---|---|
| 1140mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 2179 | 2974 | 4116 | 5343 |
| 3000K | 2249 | 3069 | 4247 | 5691 | |||
| 3500K | 2283 | 3117 | 4313 | 5779 | |||
| 4000K | 2371 | 3236 | 4478 | 6000 | |||
| 5000K | 2406 | 3283 | 4544 | 6088 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 1830 | 2498 | 3457 | 4632 | |
| 3000K | 1883 | 2570 | 3556 | 4765 | |||
| 3500K | 1917 | 2617 | 3622 | 4853 | |||
| 4000K | 1987 | 2712 | 3753 | 5029 |
| Length (A) | CRI | Order Code | Kelvin | 29W 250mA lm | 41W 350mA lm | 58W 500mA lm | 82W 700mA lm |
|---|---|---|---|---|---|---|---|
| 1700mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 3211 | 4378 | 6067 | 8125 |
| 3000K | 3314 | 4518 | 6261 | 8385 | |||
| 3500K | 3365 | 4588 | 6358 | 8515 | |||
| 4000K | 3494 | 4763 | 6601 | 8840 | |||
| 5000K | 3545 | 4833 | 6698 | 8970 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 2697 | 3677 | 5096 | 6825 | |
| 3000K | 2774 | 3782 | 5242 | 7020 | |||
| 3500K | 2826 | 3852 | 5339 | 7150 | |||
| 4000K | 2929 | 3992 | 5533 | 7410 |
| Length (A) | CRI | Order Code | Kelvin | 39W 250mA lm | 51W 350mA lm | 78W 500mA lm | 109W 700mA lm |
|---|---|---|---|---|---|---|---|
| 2260mm | CRI>80 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 4356 | 5937 | 8228 | 11020 |
| 3000K | 4495 | 6127 | 8491 | 11372 | |||
| 3500K | 4565 | 6221 | 8623 | 11549 | |||
| 4000K | 4739 | 6459 | 8952 | 11989 | |||
| 5000K | 4809 | 6554 | 9084 | 12166 | |||
| CRI>90 | I02.LL.19284 . (...) . (...) . (...) . (...) | 2700K | 3658 | 4986 | 6911 | 9256 | |
| 3000K | 3763 | 5129 | 7109 | 9521 | |||
| 3500K | 3833 | 5224 | 7241 | 9697 | |||
| 4000K | 3972 | 5414 | 7504 | 10050 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1140mm | 19.5W | 19.5W (Direct) - 250mA |  | M.E. | 30° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 27W | 27W (Direct) - 350mA | ||||||||||||
| 39W | 39W (Direct) - 500mA |  | FL | 60° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 56W | 56W (Direct) - 700mA | ||||||||||||
| 1700mm | 29W | 29W (Direct) - 250mA |  | W.F. | 90° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 41W | 41W (Direct) - 350mA | ||||||||||||
| 58W | 58W (Direct) - 500mA |  | S.ASY. | Single Asymmetric | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||
| 82W | 82W (Direct) - 700mA | ||||||||||||
| 2260mm | 39W | 39W (Direct) - 250mA |  | D.ASY. | Double Asymmetric | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 51W | 51W (Direct) - 350mA | ||||||||||||
| 78W | 78W (Direct) - 500mA |  | 06 | special color | |||||||||
| 109W | 109W (Direct) - 700mA |
Teknik Çizimler

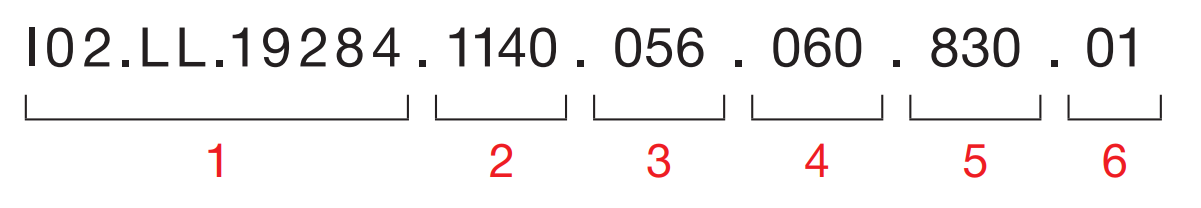

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- Beam Angle
5- CRI / Kelvin
6- Color / Product color
7- Control type
