Nemo
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 2x20-2x28W |
| Protection Class | IP65 |
| Shape | surface mounted |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Corrosion resistant aluminum body.
-- It has a wall bracket mounting system.
-- 220-240V / 50-60Hz energy input.
-- Narrow, medium, medium wide, wide and very wide angle options are available.
-- Suitable for use with COB LED.
-- 2700K, 3000K, 3500K, 4000K and 5000K color temperature options
available.
-- Thermal shock resistant tempered glass.
-- Silicone gasket providing water resistance.
-- Ultraviolet resistant white, light grey, anthracite gray and black
electrostatic powder coated.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint
body.
-- All external bolts are stainless steel.
-- High LED color compatibility: <3 SDCM
-- Efficiency up to 115lm/W.
-- L80 B10 50000 hours and five years warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 2x28W | CRI>80 | O07.WA.00076 . (..) . (...) . (..) . (..) | 2700K | 2x2952 |
| 3000K | 2x3083 | |||
| 3500K | 2x3153 | |||
| 4000K | 2x3228 | |||
| 5000K | 2x3246 | |||
| 6500K | X |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 56 | 2x28W - 700mA | 827 | CRI>80 - 2700K |  | SP | 2x20° - Spot |  | 01 | white | ||
| 48 | 2x24W - 600mA | 830 | CRI>80 - 3000K |  | M.E. | 2x30° - Medium |  | 02 | ral 9010 | ||
| 40 | 2x20W - 500mA | 835 | CRI>80 - 3500K |  | FL | 2x40° - Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K |  | W.F. | 2x60° - Wide Flood |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color | |||||||||

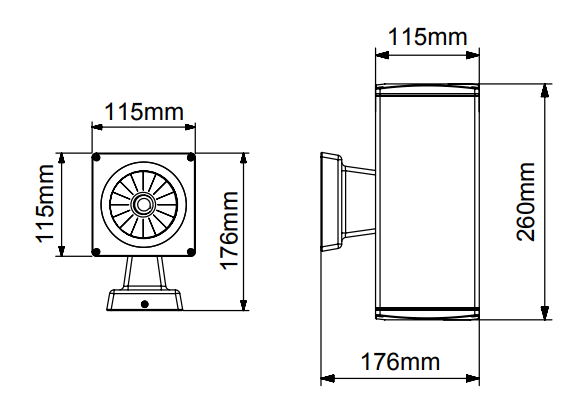

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
DIM Seçenekleri
Aksesuarlar
