Neo Industrial
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 51-72W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 92-85mm |
| Mounting Type | surface mounted |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19216.1700.072.030.830.01 |
| Family Name | neoindustrial |
| Material | DKP Sheet |
| Format | linear |
| Profile Width | 92mm |
| Profile Height | 85mm |
| Installation Type | surface mounted |
| Productivity | >158lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Medium, Broad, Extra Large and Asymmetrical |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 51W 350mA lm | 65W 450mA lm | 72W 500mA lm |
|---|---|---|---|---|---|---|
| 1700mm | CRI>80 | I02.LL.19216 . (...) . (...) . (...) . (...) | 2700K | 7723 | 9706 | 10659 |
| 3000K | 7887 | 9912 | 10922 | |||
| 4000K | 8216 | 10326 | 11378 | |||
| 5000K | 9037 | 11358 | 12515 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1700mm | 51W | 51W (Direct) - 350mA |  | M.E. | 30° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 65W | 65W (Direct) - 450mA |  | FL | 60° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||
| 72W | 72W (Direct) - 500mA |  | W.F. | 90° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||
 | ASY. | Asymmetric | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||||
 | 06 | special color |

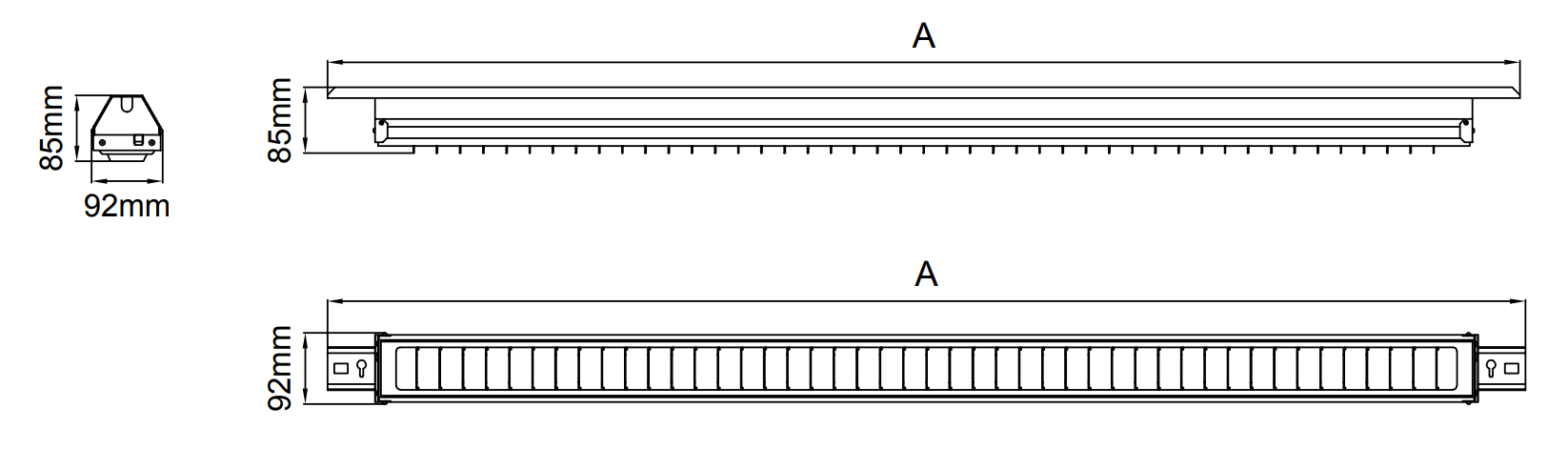

Teknik Çizimler

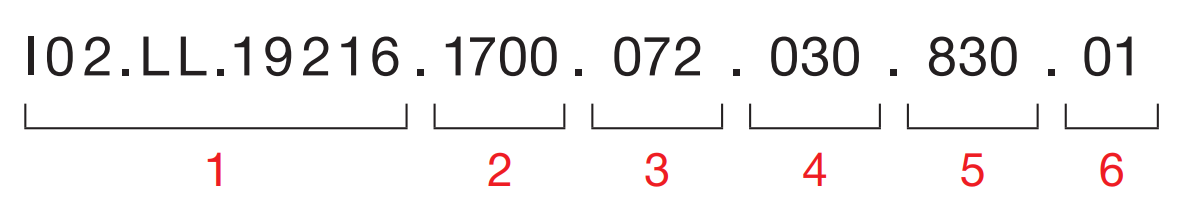

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
