Panda Mini
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 22W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED projector fixture with symmetrical light output.
-- Body made of corrosion-resistant aluminum injection raw material.
-- It has a bracketed mounting system.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- Narrow, medium and wide angle options are available.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- Illumination is provided up to a height of 20 meters.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- Efficiency up to 126lm/W.
-- High color compatibility: <3 SDCM
-- Stainless cable gland is used in the luminaire and 220V main
The mains cable has an IP68 protected connector. with this
inside the product by using the 220V cable end and the water stopper between the armature.
Humidification and water vapor formation are minimized.
-- Mechanical locking system.
-- DALI and 1-10V Dim options are available.
-- Thanks to its high cooling capacity, Panda provides high Ta temperature
It also works comfortably in environments with high values.
-- L80 B10 50000 hours and five years warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 22W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | 2700K | 2287 |
| 3000K | 2314 | |||
| 3500K | 2420 | |||
| 4000K | 2473 | |||
| 5000K | 2500 | |||
| 6500K | 2526 | |||
| 16W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Red | 1020 |
| 21W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Green | 1559 |
| 22W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Blue | 772 |
| 20W | CRI>80 | O07.WL.00521 . (..) . (...) . (..) . (..) | Amber | 1800 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 22 | 22W - 700mA | 827 | CRI>80 - 2700K | 625 | Red |  | SP | 14° - Spot |  | 01 | white |
| 830 | CRI>80 - 3000K | 525 | Green |  | M.E. | 25° - Medium |  | 02 | ral 9010 | ||
| 835 | CRI>80 - 3500K | 470 | Blue |  | M.F. | 30° - Medium Flood |  | 03 | black | ||
| 840 | CRI>80 - 4000K | 590 | Amber |  | FL | 45° - Flood |  | 04 | gray | ||
| 850 | CRI>80 - 5000K |  | OV | 40° x 18° - Oval |  | 05 | dark gray | ||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

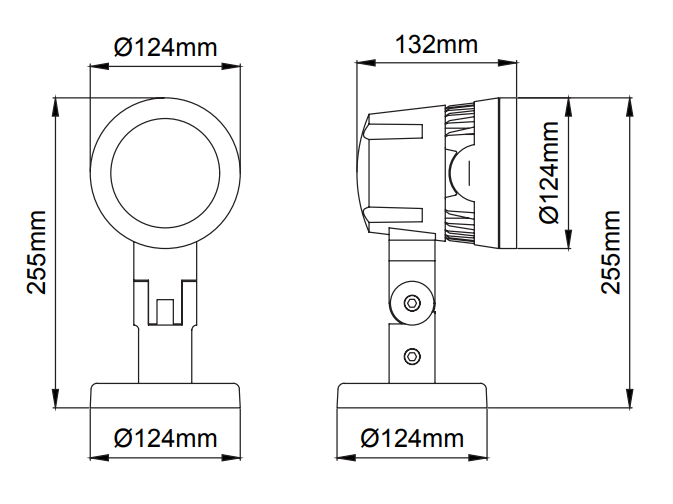

Teknik Çizimler

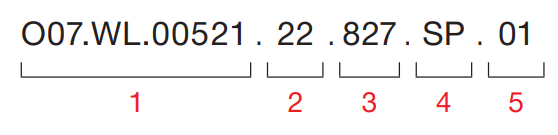

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
DIM Seçenekleri

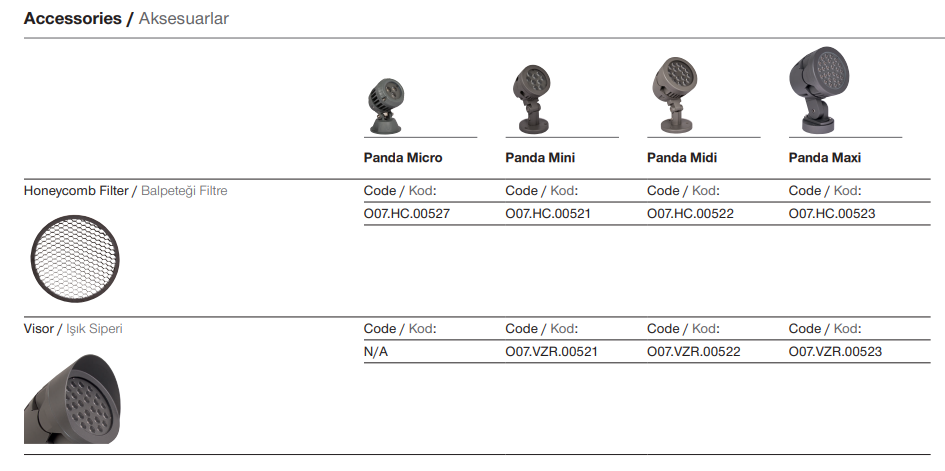

Aksesuarlar
