Panel Recessed
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20W |
| Protection Class | IP40 |
| Optical | diffuser |
| width, length | 313x313mm |
AÇIKLAMA
Açıklama
PANEL creates a light window appearance on walls and ceilings. Suitable for general lighting. It has an aluminum profile structure. Rockwool ceiling and built-in options are available. With its built-in version with the same thinness, it provides ease of application in areas with low plasterboard depth. Maximum efficiency is achieved with the high efficiency LGP diffuser.
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 20W 500mA lm |
|---|---|---|---|---|
| 313x313mm | CRI>80 | I02.LL.18620 . (...) . (...) . (...) . (... | 2700K | 1107 |
| 3000K | 1143 | |||
| 3500K | 1160 | |||
| 4000K | 1205 | |||
| 5000K | 1222 | |||
| CRI>90 | I02.LL.18620 . (...) . (...) . (...) . (...) | 2700K | 930 | |
| 3000K | 957 | |||
| 3500K | 974 | |||
| 4000K | 1010 |
| Length | Cutting Size | watts | Watts - Driving Current | CRI/Kelvin | CRI/Kelvin | Product Color | Product Color | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 313x313mm |  | 305x305mm | 20 | 20W - 500mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |

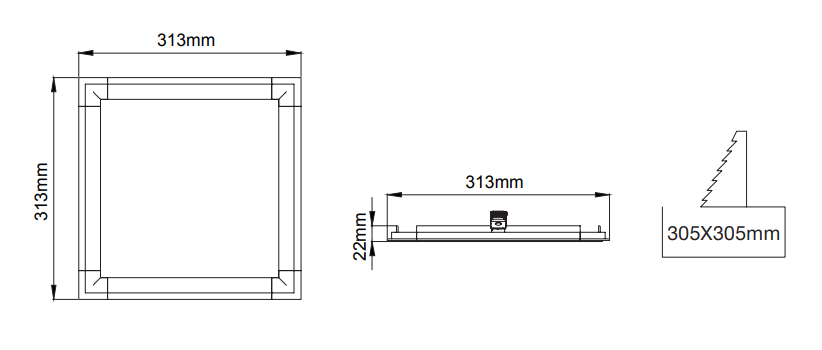

Teknik Çizimler
Kod Örneği
