Panos Radius Direct/Indirect
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 77W |
| Protection Class | IP40 |
| Optical | diffuser |
| width, length | 600x600mm |
AÇIKLAMA
Açıklama
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
CASAMBI options are available. Emergency kit system can be integrated. Basic colors: white, black, silver, anthracite dark gray and special color options are available on request.
Steel hanging wire with length option up to 5m, with standard or central baldachine.
Ürün Kodu Tablosu
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.26310.(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 60x60cm |
| Height | 100mm |
| Weight | 4.5kg |
| Mounting method | Stalactite |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 8054lm | 8312lm | 8441lm | 8763lm | 8892lm |
| System efficiency | 105lm/W | 108lm/W | 110lm/W | 114lm/W | 115lm/W |
| Luminous flux Direct | 6553lm | 6763lm | 6868lm | 7130lm | 7235lm |
| Luminous flux Indirect | 1501lm | 1549lm | 1573lm | 1633lm | 1657lm |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 114° | 114° | 114° | 114° | 114° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 77W (53W Direct - 24W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP40 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

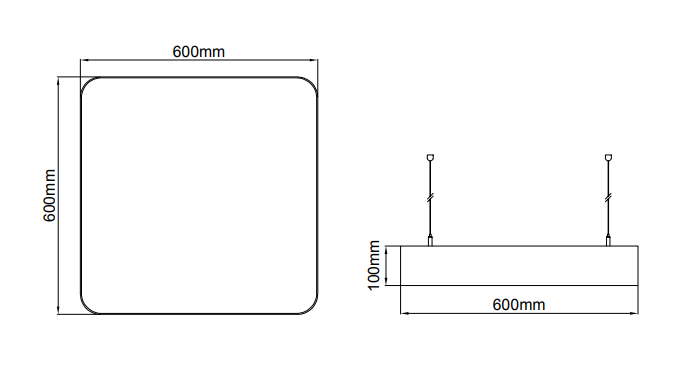

Teknik Çizimler

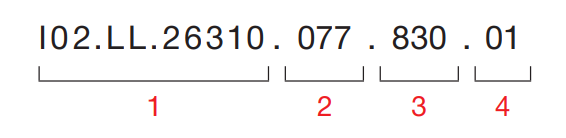

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
5- Control type
DIM Seçenekleri
