Pearl
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 14-38W |
| Protection Class | IP66 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- Corrosion resistant aluminum body.
-- It has a wall bracket mounting system.
-- 220-240V / 50-60Hz energy input.
-- Asymmetric optical structure.
-- 2700K, 3000K, 3500K, 4000K, 5000K and 6500K color temperature
options are available.
-- Silicone gasket providing water resistance.
-- Ultraviolet resistant white, light grey, anthracite gray and black
electrostatic powder coated.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint
body.
-- All external bolts are stainless steel.
-- High LED color compatibility: <3 SDCM
-- L80 B10 50000 hours and five years warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 38W | CRI>80 | O07.WA.06100 . (..) . (...) . (..) . (..) | 2700K | 4715 |
| 3000K | 4866 | |||
| 3500K | 4941 | |||
| 4000K | 5130 | |||
| 5000K | 5205 | |||
| 6500K | 5360 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 38W | 827 | CRI>80 - 2700K |  | ASM | Asymmetric |  | 01 | white | ||
| 23 | 23W | 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||||
| 14 | 14W | 835 | CRI>80 - 3500K |  | 03 | black | |||||
| 840 | CRI>80 - 4000K |  | 04 | gray | |||||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
| 865 | CRI>80 - 6500K |  | 06 | special color | |||||||

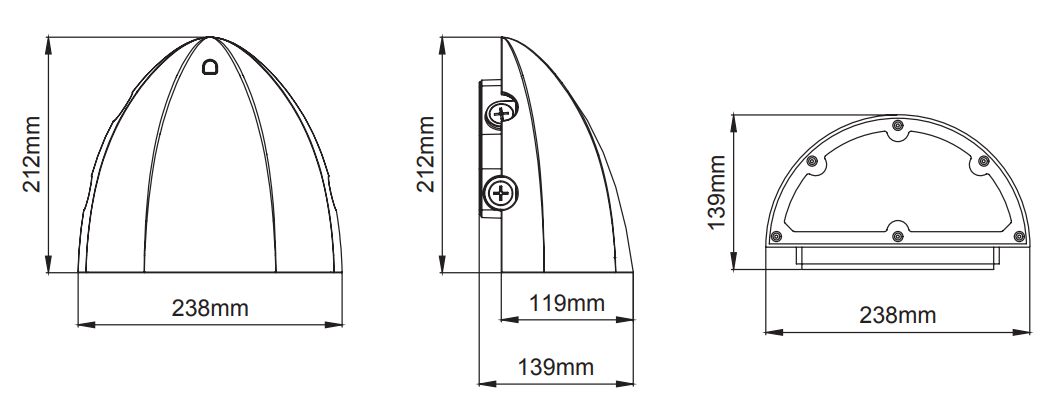

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
