Petrol Highbay
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 75-100W |
| Protection Class | IP66 |
| Shape | surface mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 100W | CRI>70 | O07.WL.16206 . (..) . (...) . (..) . (..) | 2700K | 14357 |
| 3000K | 14497 | |||
| 3500K | X | |||
| 4000K | 14779 | |||
| 5000K | 14920 | |||
| 6500K | 14638 | |||
| CRI>80 | O07.WL.16206 . (..) . (...) . (..) . (..) | 2700K | 13229 | |
| 3000K | 13370 | |||
| 3500K | X | |||
| 4000K | 14215 | |||
| 5000K | 14229 | |||
| 6500K | 13511 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 100W - 575mA | 727 | CRI>70 - 2700K | 827 | CRI>80 - 2700K |  | W.F. | 114° - Wide Flood |  | 01 | white |
| 75 | 75W - 450mA | 730 | CRI>70- 3000K | 830 | CRI>80 - 3000K |  | 02 | ral 9010 | |||
| 735 | CRI>70- 3500K | 835 | CRI>80 - 3500K |  | 03 | black | |||||
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 04 | gray | |||||
| 750 | CRI>70- 5000K | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
| 765 | CRI>70 - 6500K | 865 | CRI>80 - 6500K |  | 06 | special color | |||||

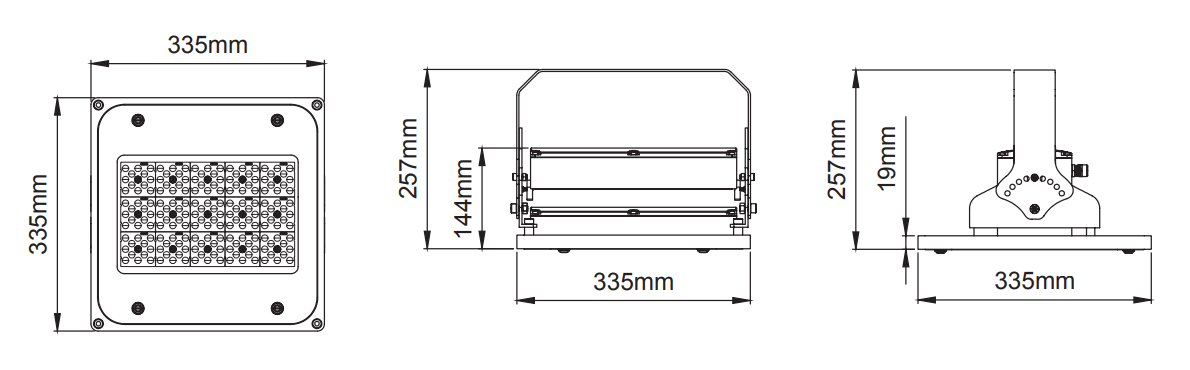

Teknik Çizimler

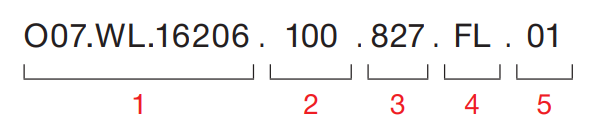

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
