Plafo
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 40W |
| Protection Class | IP20 |
| Shape | Full Ring |
| Optical | diffuser |
| Diameter | Ø460mm |
AÇIKLAMA
Açıklama
Aluminum body and opal diffuser. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White CASAMBI options are available. 100lm/W
on efficiency. Emergency kit system can be integrated. Basic colors: white, black, silver, anthracite dark gray and special color options are available on request.
Ürün Kodu Tablosu
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.13309.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 46cm |
| Height | 95mm |
| Mounting method | surface mounted |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 3408lm | 3517lm | 3572lm | 3709lm | 3763lm |
| System efficiency | 85lm/W | 88lm/W | 89lm/W | 93lm/W | 94lm/W |
| Luminous flux Direct | 2435lm | 2513lm | 2552lm | 2650lm | 2689lm |
| Luminous flux Indirect | 973lm | 1004lm | 1020lm | 1059lm | 1074lm |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 116° | 116° | 116° | 116° | 116° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 40W (25W Direct - 15W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

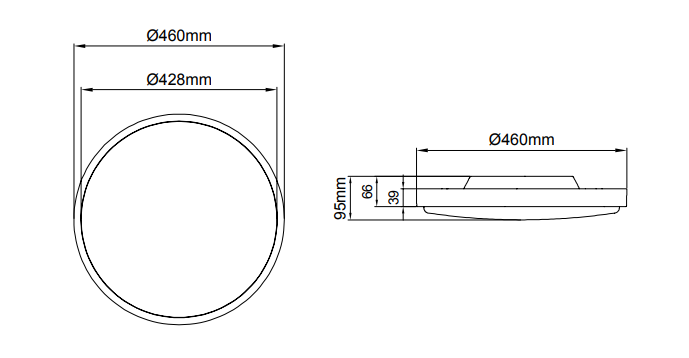

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Daimeter / Diameter
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
