Quasar Micro
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 25-35W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED street lighting fixture.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- Tempered glass.
-- 10KV power surge protector can be integrated.
-- 220-240V / 50-60Hz energy input.
-- Color tolerance max. 3SDCM.
-- Suitable for use up to 6m pole height.
-- Suitable for use in P2 and P3 road standards.
-- Efficient optical structure in compliance with street lighting standards.
-- Transformer unit that does not require equipment can be intervened.
-- Compatible with console inner diameter Ø42 - Ø63mm.
-- Compatible with 350mA and 500mA driving currents.
-- 1-10V, DALI and Astro dim options are available.
-- Intelligent street lighting control system can be applied.
-- Alternatively a motion sensor can be integrated.
-- Besides the standard 4000K light color, alternatively 2700K, 3000K,
3500K, 5000K and 6500K options are also available.
Ürün Kodu Tablosu

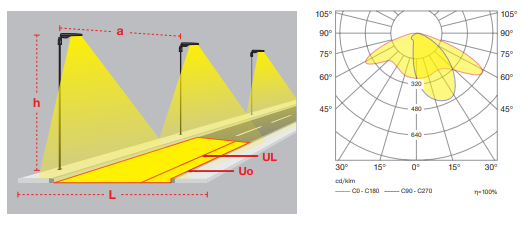

| Quasar Micro/O07.ST.16320 | |
|---|---|
| System Power | 25W |
| Luminaire Output Lumen CRI>70 - 4000K | 3290lm |
| Driving Current | 350mA |
| Mast Span (a) | 32m |
| Mast Height (h) | 6m |
| Road Width (L) | 3.5m |
| Lighting Class | P3 |
| Optical Type | Maximum pole spacing |

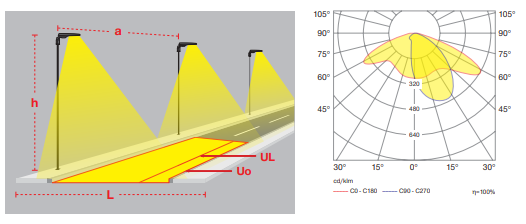

| Quasar Micro/O07.ST.16320 | |
|---|---|
| System Power | 35W |
| Luminaire Output Lumen CRI>70 - 4000K | 4480lm |
| Driving Current | 500mA |
| Mast Span (a) | 32m |
| Mast Height (h) | 6m |
| Road Width (L) | 7m |
| Lighting Class | P2 |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16320.35.740.05 |
| Family Name | QuasarMicro |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 35W |
| Number of LEDs | 24 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |
Teknik Çizimler

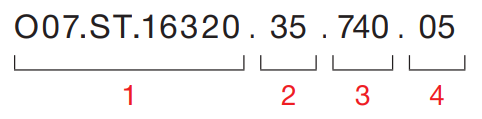

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
DIM Seçenekleri

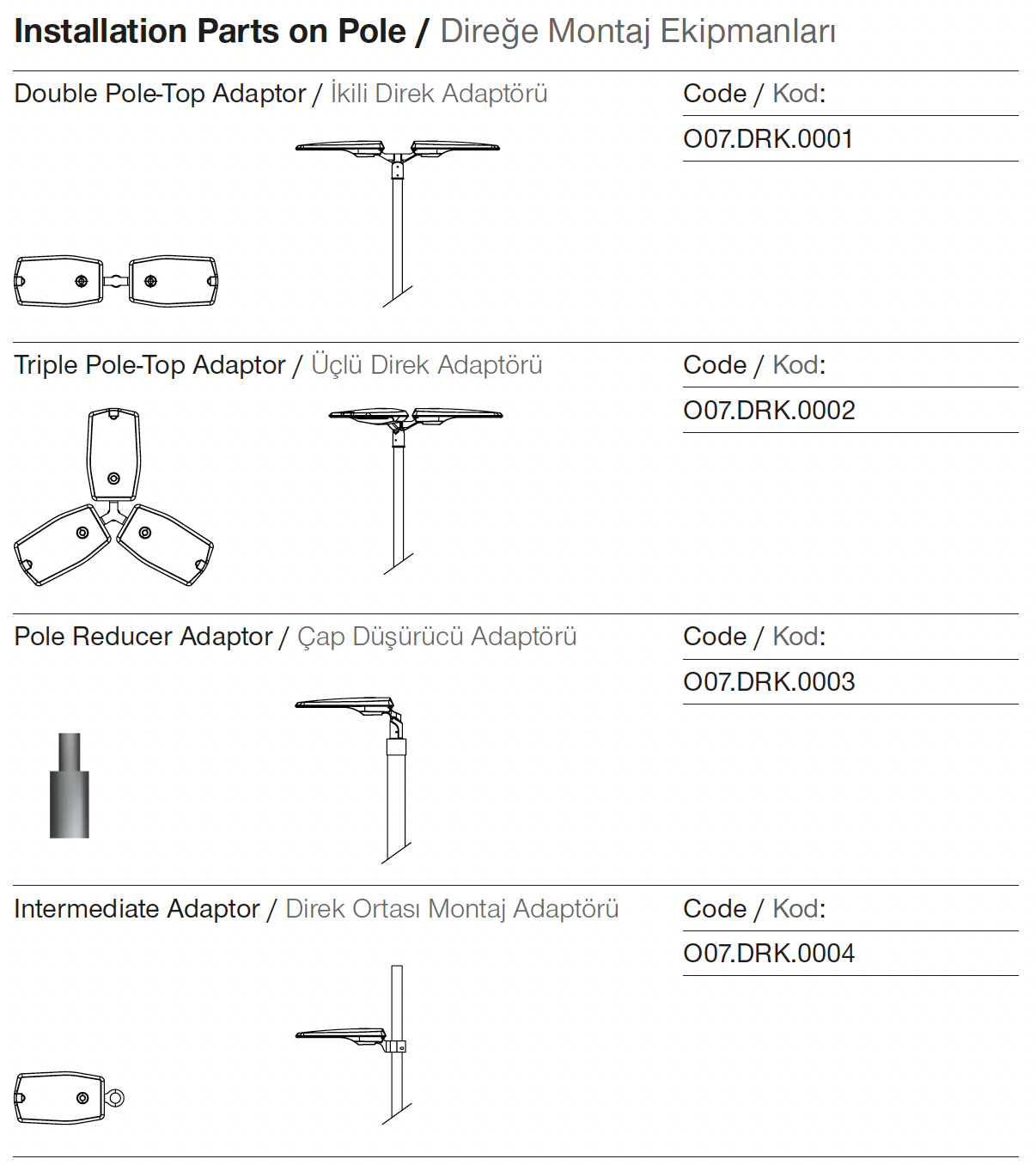

Aksesuarlar
