Silindir 40 Short Arm
Ürün ikonları
| Input Voltage | 48V DC |
| Wattage | 10W |
| Protection Class | IP20 |
| Shape | rayspot |
| Optical | Reflector |
AÇIKLAMA
Açıklama
-- Aluminum injection body.
-- With 48V DC input.
-- Intelligent cooling design with passive cooling technology.
-- With DC/DC transformer adapter suitable for Stucchi 48V rail system
-- It has the ability to move 90° vertically and 350° horizontally.
-- Tempered glass.
-- Classic 1-10V and DALI DIM options can be applied.
-- Wireless DIM and Hot DIM, which are high-tech control systems
applications can be made.
-- Standard color options: White, Black, Grey, Dark Grey, RAL9010
Additionally, optional special color options can be applied.
--Honeycomb Filter, Color Filter, Anti-Glare and Viewfinder accessories
options can be applied.
-- Medium, Wide and Very Wide reflector angle options are available.
-- Efficiency up to 71lm/W.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 10W | CRI>90 | I01.MLT.91202 . (..) . (...) . (..) . (..) | 2700K | 1093 |
| 3000K | 1115 | |||
| 3500K | 1137 | |||
| 4000K | 1159 | |||
| 5000K | X | |||
| CRI>98 | I01.MLT.91202 . (..) . (...) . (..) . (..) | 2700K | 747 | |
| 3000K | 769 | |||
| 4000K | 800 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 | 10W - 250mA | 927 | CRI>90 - 2700K | 9827 | CRI>98 - 2700K |  | M.E. | 30° - Medium |  | 01 | white |
| 930 | CRI>90 - 3000K | 9830 | CRI>98 - 3000K |  | FL | 40° - Flood |  | 02 | ral 9010 | ||
| 935 | CRI>90 - 3500K | 9840 | CRI>98 - 4000K |  | W.F. | 60° - Wide Flood |  | 03 | black | ||
| 940 | CRI>90 - 4000K |  | 04 | gray | |||||||
 | 05 | dark gray | |||||||||
 | 06 | special color |

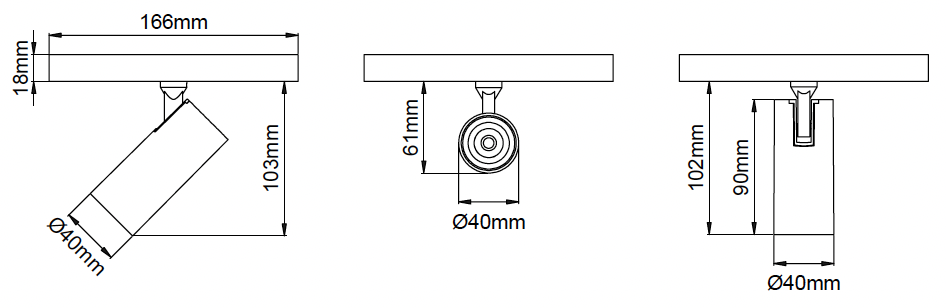

Teknik Çizimler

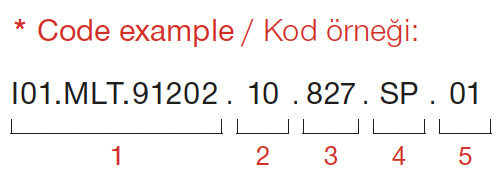

Kod Örneği
- Luminaire code
- Strength
- Kelvin
- Reflector Angle
- Product Color

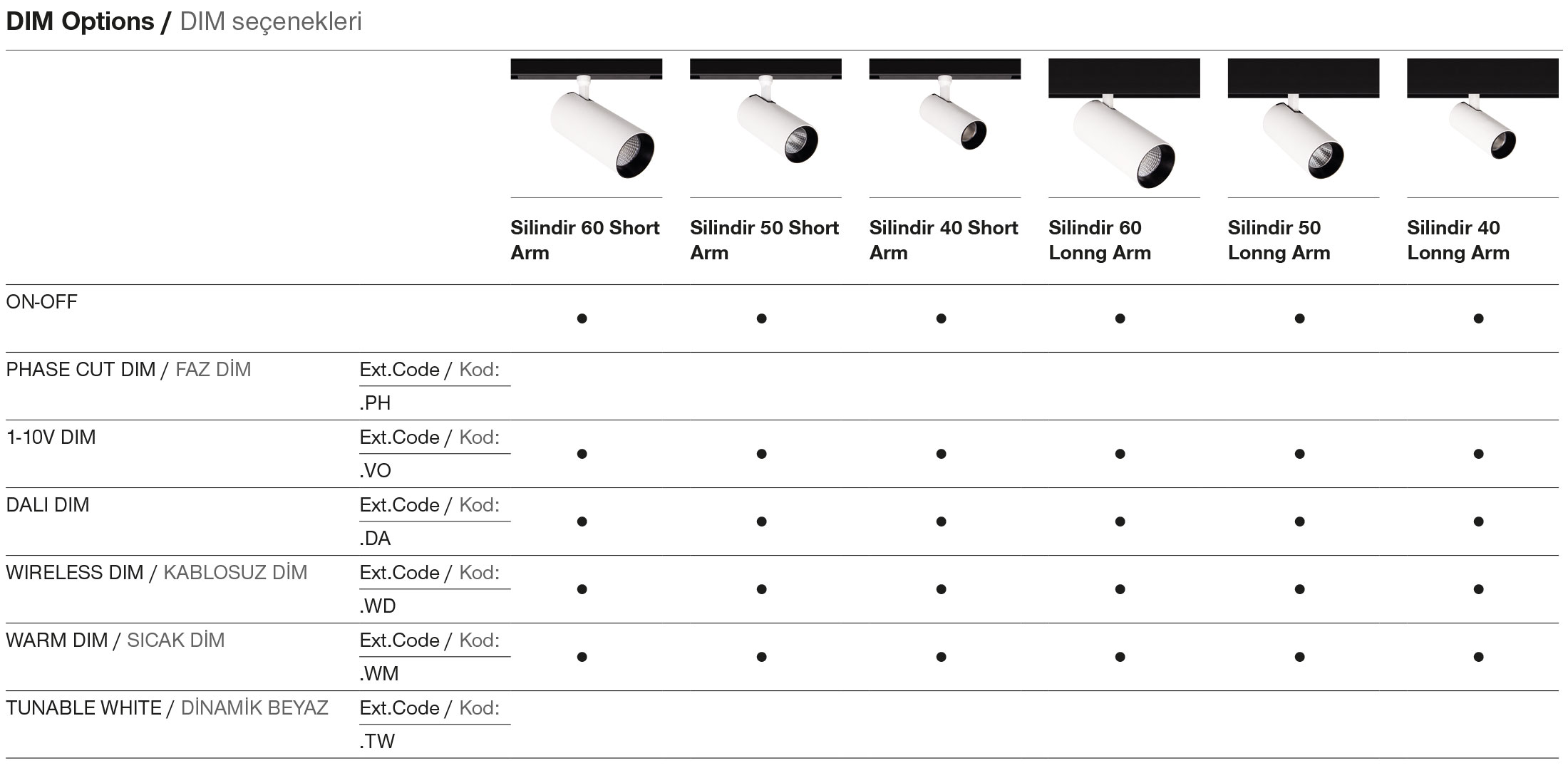

DIM Seçenekleri
Aksesuarlar
