Sivo Super Slim Ring
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 147W |
| Protection Class | IP20 |
| Shape | Super Slim Ring |
| Optical | diffuser |
| Diameter | Ø1500mm |
| Profile Height | h:50mm |
AÇIKLAMA
Açıklama
Aluminum body. Opal or microprismatic diffuser options are available. Mains voltage: 220-240V / 50-60Hz. 1-10V, DALI, Casambi DIM, Dynamic White DALI, Dynamic White
CASAMBI options are available. Efficiency over 100lm/W. Emergency kit system can be integrated. Basic colors: white, black, silver, anthracite dark gray and special color on request
options are available. Steel hanging wire with length option up to 5m with standard or central baldachine.
Ürün Kodu Tablosu
| Product Information | |
|---|---|
| Article No. (AVOLUX) | I02.LL.14305.(Diameter).(Power).(CRI).(Colour) |
| Material | aluminum |
| Outside Diameter | 150cm |
| Height | 50mm |
| Weight | 6/15kg |
| Mounting method | Stalactite |
| Lighting Technology | |||||
|---|---|---|---|---|---|
| Color Temperature | 2700K | 3000K | 3500K | 4000K | 5000K |
| luminous flux | 16777lm | 17314lm | 17582lm | 18253lm | 18521lm |
| System efficiency | 114lm/W | 118lm/W | 120lm/W | 124lm/W | 126lm/W |
| Luminous flux Direct | 10802lm | 11148lm | 11320lm | 11752lm | 11925lm |
| Luminous flux Indirect | 5975lm | 6166lm | 6262lm | 6501lm | 6596lm |
| Color rendering | 80CRI | 80CRI | 80CRI | 80CRI | 80CRI |
| beam angle | 110° | 110° | 110° | 110° | 110° |
| Light Angle | Direct - Indirect |
| Working technology of fixtures | |
|---|---|
| System Output | 147W (98W Direct - 49W Indirect) |
| Voltage Type | 220-240VAC |
| AC nominal voltage max. | 264VAC |
| Frequency max | 63Hz |
| Lamp | LED |
| Protection Class | IP20 |
| Degree of protection | Class I |
| Control | ON - OFF / DALI / CASAMBI / TUNABLE WHITE |
| Rated Life time L80/B10 at 25°C | >50000 hrs |

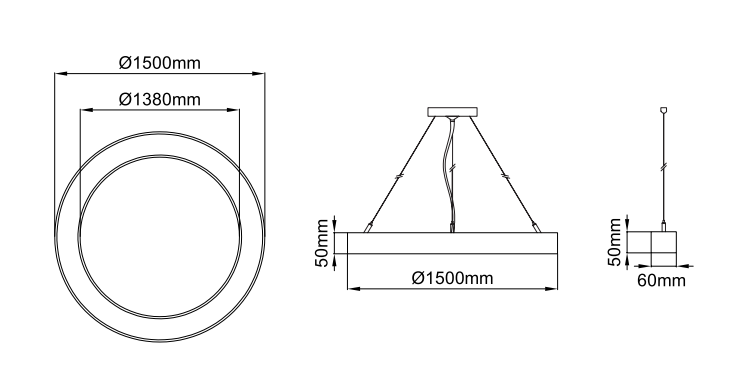

Teknik Çizimler

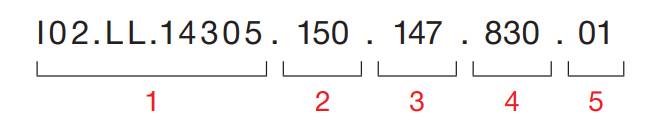

Kod Örneği
1- Product code / Armature code
2- Daimeter / Diameter
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type

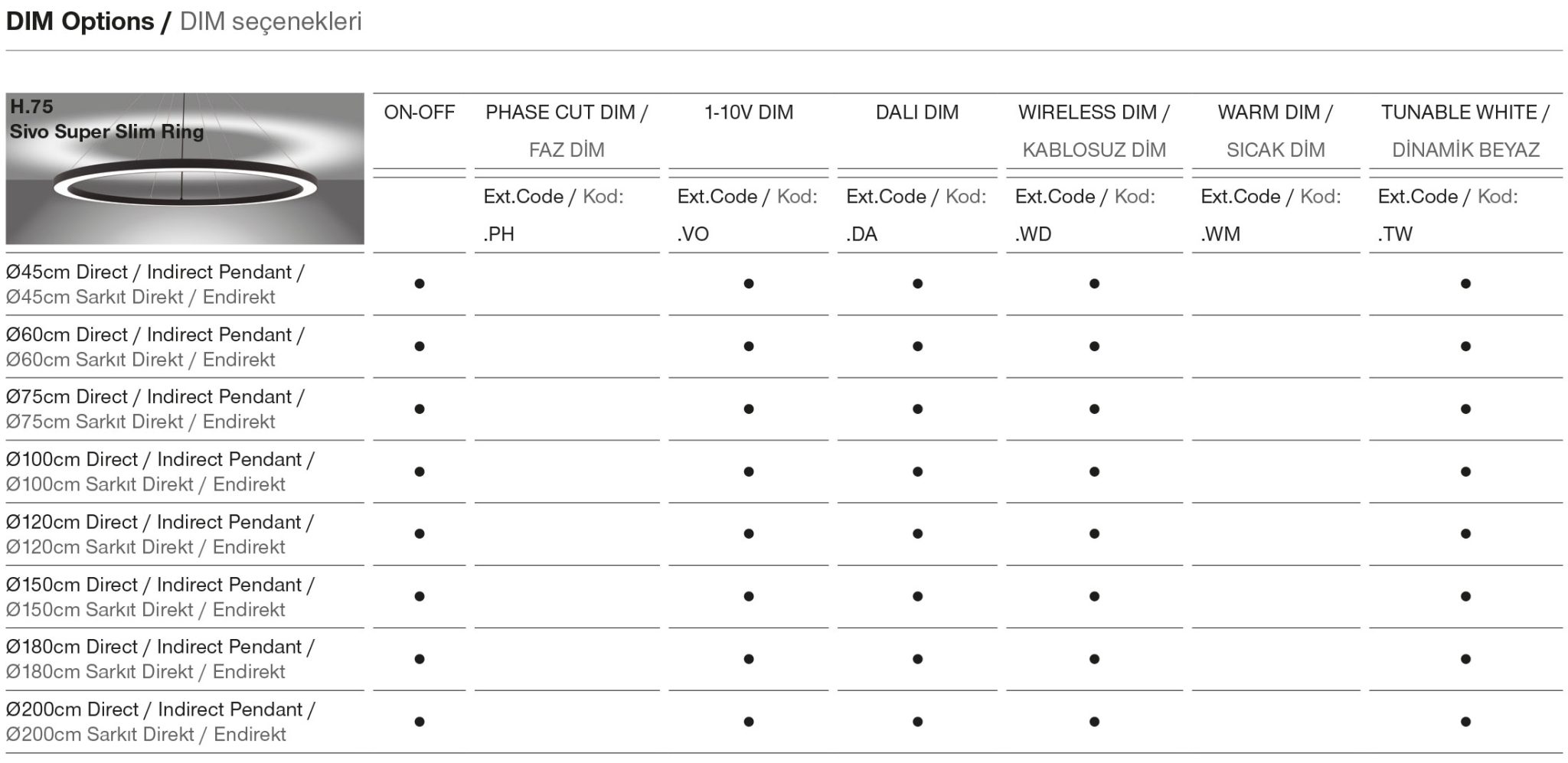

DIM Seçenekleri
