Solid
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 2x60-2x90W |
| Protection Class | IP66 |
| Shape | Pole Mounted |
| Optical | Lens |
AÇIKLAMA
Açıklama
-- LED street lighting fixture.
-- Corrosion resistant aluminum injection body.
-- With silicone gasket.
-- All external metal parts are made of stainless steel.
-- Tempered glass.
-- 10KV power surge protector can be integrated.
-- 220-240V / 50-60Hz energy input.
-- Intelligent cooling design.
-- High lighting comfort.
-- Color tolerance max. 3SDCM.
-- Suitable for use on poles 5-6 meters high.
-- Efficient optical structure in compliance with street lighting standards.
-- Transformer unit that does not require equipment can be intervened.
-- With aluminum profile pole with 5mt and 6mt options
The sale of the armature is taking place.
-- Compatible with 500mA and 750mA driving currents.
-- Efficient structure reaching up to 125lm/W.
-- 1-10V, DALI and Astro dim options are available.
-- Alternatively a motion sensor can be integrated.
-- Besides the standard 4000K light color, alternatively 2700K, 3000K,
3500K, 5000K and 6500K options are also available.
Ürün Kodu Tablosu

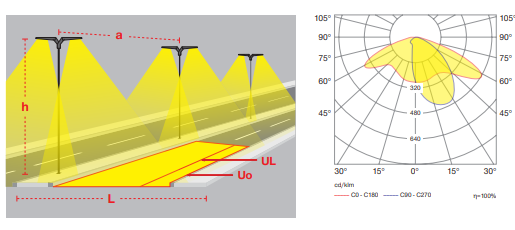

| Solid / O07.ST.16402 | |
|---|---|
| System Power | 2x60W |
| Luminaire Output Lumen CRI>70 - 4000K | 2x7463lm |
| Driving Current | 500mA |
| Mast Span (a) | 24m |
| Mast Height (h) | 5m |
| Road Width (L) | 6m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |

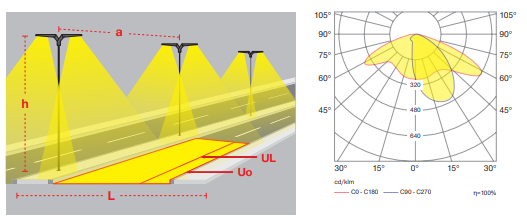

| Solid / O07.ST.16402 | |
|---|---|
| System Power | 2x90W |
| Luminaire Output Lumen CRI>70 - 4000K | 2x10297lm |
| Driving Current | 750mA |
| Mast Span (a) | 30m |
| Mast Height (h) | 6m |
| Road Width (L) | 6m |
| Lighting Class | - |
| Optical Type | Maximum pole spacing |
| Armature Data | |
|---|---|
| Product Code | O07.ST.16402.180.740.05 |
| Family Name | Solid |
| Material | Aluminum Injection |
| LED Life | L70/B50 50000h |
| Optical | Asymmetric Street Lighting Lens |
| Luminaire Maximum Power | 2x90W |
| Number of LEDs | 2x30 |
| Circuit | 24S2P |
| LED Type | 3535 |
| CRI | 70 |
| Operating Temperature | -20°C / +50°C |
| Protection | IP66 |

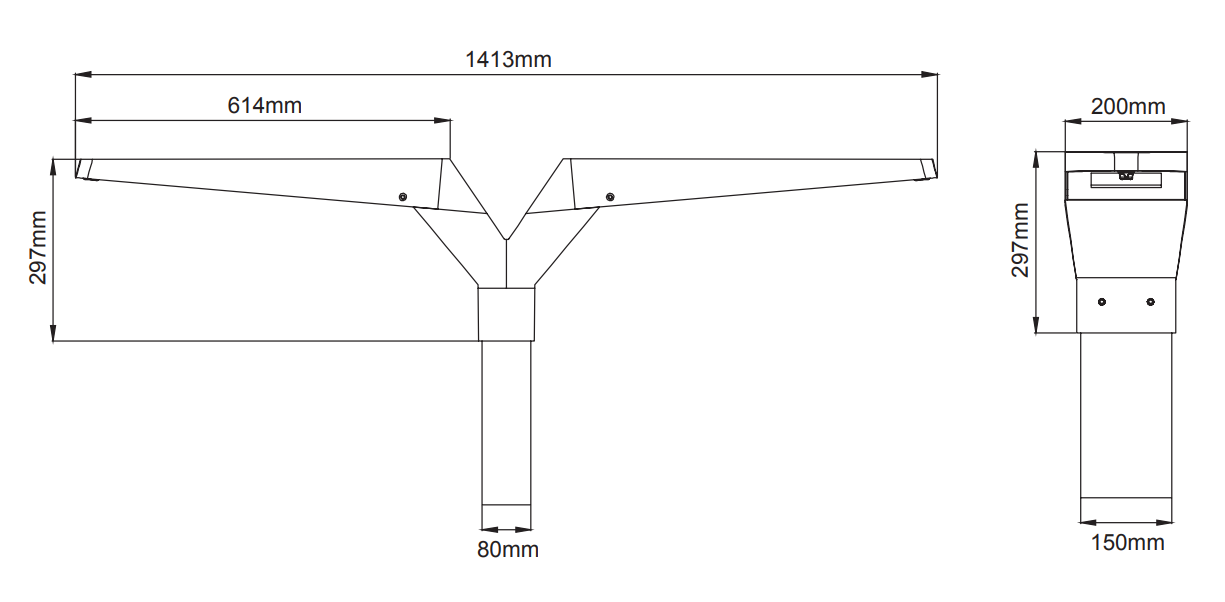

Teknik Çizimler

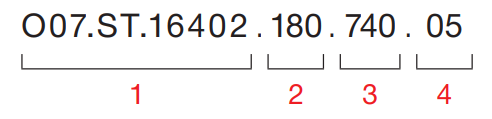

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Color / Product color
