Starlux 150
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 150W |
| Protection Class | IP66 |
| Shape | Projector |
| Optical | diffuser |
AÇIKLAMA
Açıklama
-- LED projector fixture with symmetrical light output.
-- Body made of corrosion-resistant aluminum injection raw material.
-- It has a bracketed mounting system.
-- 220-240V / 50-60Hz energy input.
-- Only very wide angle option is available.
-- 3000K, 4000K and 6500K color temperature options are available.
-- IP protection is provided without any problems with silicone gaskets.
-- All external screws are stainless.
-- Corrosion and salt resistant thanks to double-layer polyester powder paint.
-- Efficiency up to 135lm/W.
-- Mechanical locking system.
-- L80 B10 50000 hours and five years warranty.
Ürün Kodu Tablosu
| Strength | CRI | Order Code | Kelvin | Lumen |
|---|---|---|---|---|
| 150W | CRI>70 | O07.WL.13425 . (..) . (...) . (..) . (..) | 3000K | 19009 |
| 4000K | 20319 | |||
| 6500K | 20757 | |||
| CRI>80 | O07.WL.13425 . (..) . (...) . (..) . (..) | 3000K | 15347 | |
| 4000K | 16405 | |||
| 6500K | 16759 |
| 2 | Watts - Driving Current | 3 | CRI/Kelvin | 3 | CRI/Kelvin | 4 | Reflector Angle | 5 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | 150W - 0mA | 730 | CRI>70 - 3000K | 830 | CRI>80 - 3000K |  | W.F. | 112° - Wide Flood |  | 01 | white |
| 740 | CRI>70- 4000K | 840 | CRI>80 - 4000K |  | 02 | ral 9010 | |||||
| 765 | CRI>70 - 6500K | 865 | CRI>80 - 6500K |  | 03 | black | |||||
 | 04 | gray | |||||||||
 | 05 | dark gray | |||||||||
 | 06 | special color | |||||||||

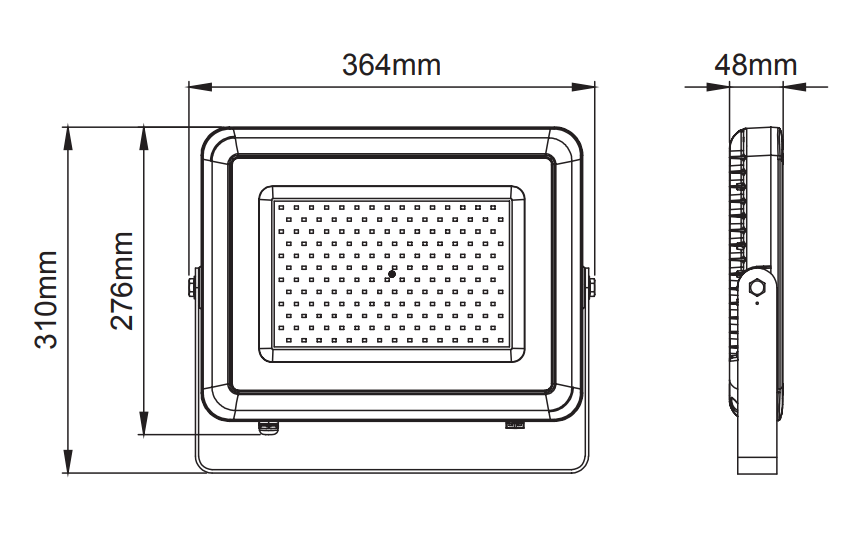

Teknik Çizimler

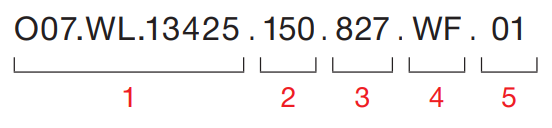

Kod Örneği
1- Product code / Armature code
2- Power
3- CRI / Kelvin
4- Reflector angle
5- Color / Product color
