Systema
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 52W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Reflector |
| width, height | 104-110mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
SYSTEMA is a functional linear LED luminaire. Unlike luminaires with classical lens optics, specially designed reflector optics are used. Thanks to five different reflector applications that can be integrated into the same chassis, it offers perfect solutions in many different applications, from low and high ceiling lighting to market lighting. Up to 100% energy saving is achieved with the highly efficient Alanod reflector. Thanks to the 3-Phase cabling system, long uninterrupted lighting lines can be created with SYSTEMA. It is especially preferred in areas with large square meters.
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 52W 300mA lm |
|---|---|---|---|---|
| 1510mm | CRI>80 | I02.LL.19460 . (...) . (...) . (...) . (...) | 2700K | 6551 |
| 3000K | 6760 | |||
| 3500K | 6865 | |||
| 4000K | 7127 | |||
| 5000K | 7232 | |||
| CRI>90 | I02.LL.19460 . (...) . (...) . (...) . (...) | 2700K | 5502 | |
| 3000K | 5660 | |||
| 3500K | 5765 | |||
| 4000K | 5974 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1510mm | 52 | 52W (Direct) - 300mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
| 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

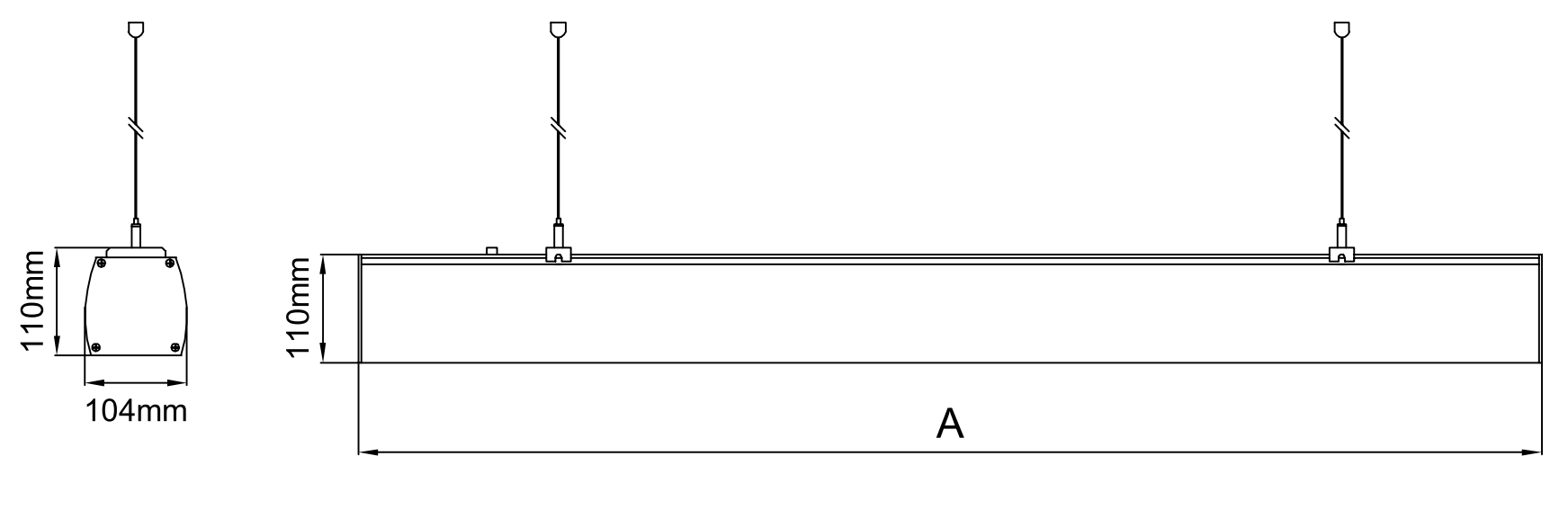

Teknik Çizimler

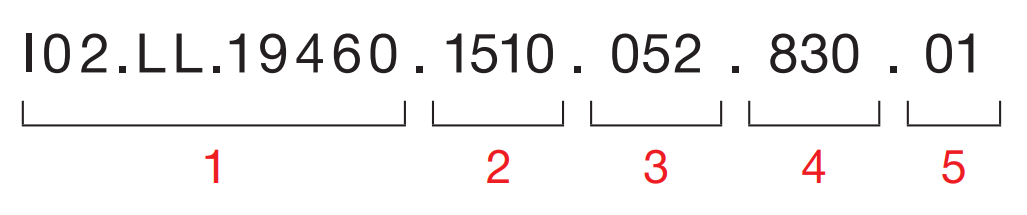

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
