Titania Midi

Name: Titania Midi
Brand: AVOLUX
SKU: I01.MLR.15010

Ürün ikonları

Stok kodu: I01.MLR.15010

Kategoriler: COB Led Recessed Series

AÇIKLAMA

ÜRÜN PDF İNDİR ÜRÜN AİLESİ PDF İNDİR LDT İNDİR

-- Aluminum injection body.

-- 220-240V / 50-60Hz energy input.

-- Intelligent cooling design with passive cooling technology.

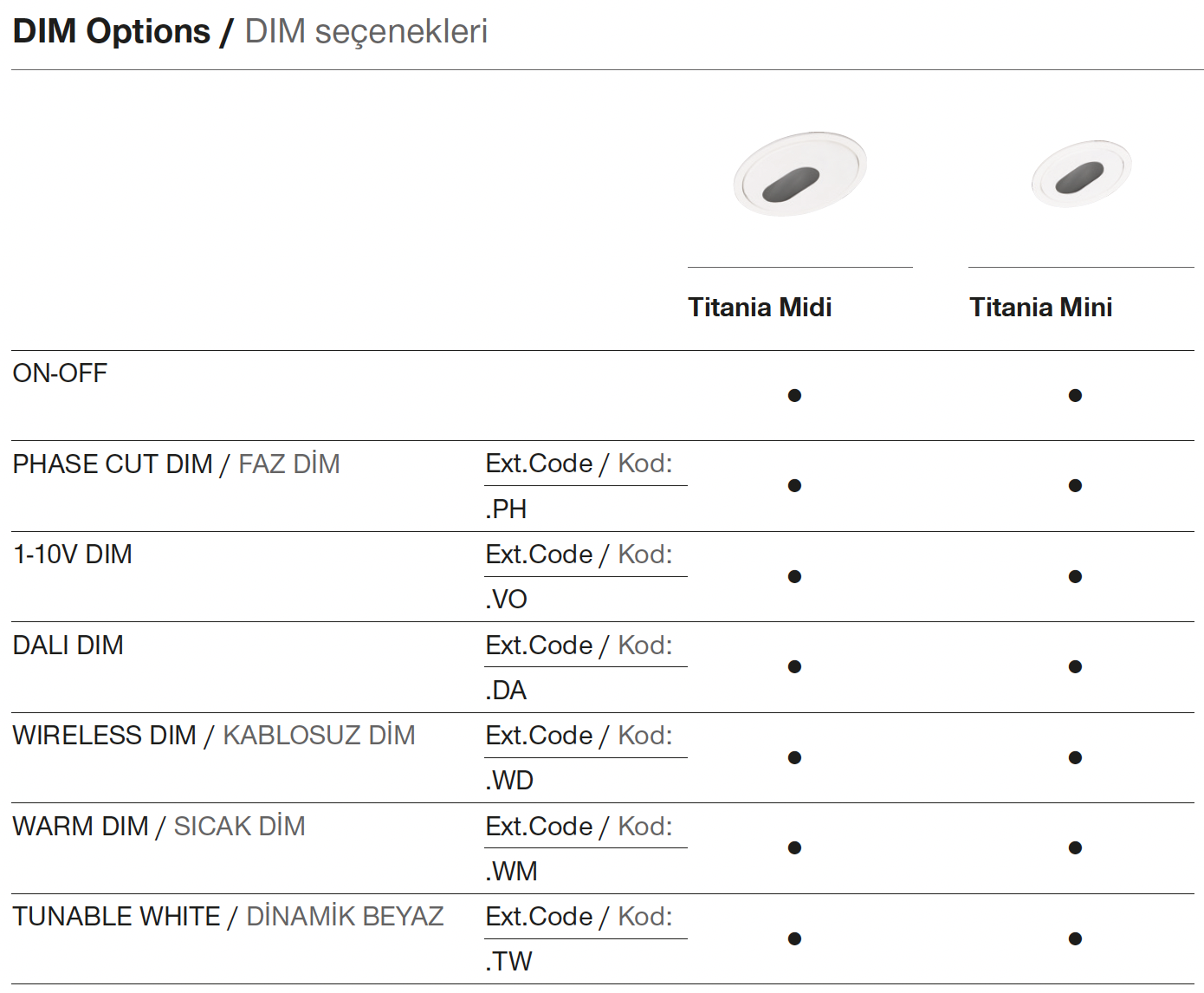

-- Classic DALI, 1-10V and Phase DIM options can be applied.

-- High-tech control systems Wireless DIM, Hot DIM and Dynamic White applications can be made.

-- Standard color options: White, Black, Grey, Dark Grey, RAL9010 Additionally, optional special color options can be applied.

--Honeycomb and Color filter accessory options can be applied.

-- Narrow angle structure with low glare values.

-- Standard CRI>80, high CRI>90 and extra high CRI>98 LED options are available.

-- High color compatibility: <3 SDCM.

-- Emergency lighting kit system can be applied.

Strength	CRI	Order Code	Kelvin	Lumen
15W	CRI>80	I01.MLR.15010 . (..) . (...) . (..) . (..)	2700K	682
			3000K	696
			3500K	710
			4000K	724
			5000K	746
	CRI>90	I01.MLR.15010 . (..) . (...) . (..) . (..)	2700K	634
			3000K	647
			3500K	660
			4000K	673
			5000K	X
	CRI>98	I01.MLR.15010 . (..) . (...) . (..) . (..)	2700K	488
			3000K	498
			4000K	518

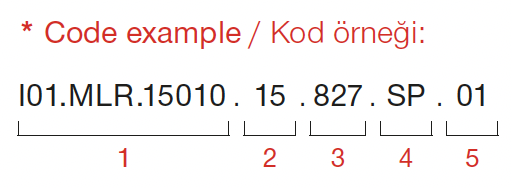

2	Watts - Driving Current	3	CRI/Kelvin	3	CRI/Kelvin	4	Reflector Angle	5	Product Color
15	15W - 350mA	827	CRI>80 - 2700K	930	CRI>90 - 3000K	SP	15° - Spot	01	white
10	10W - 250mA	830	CRI>80 - 3000K	935	CRI>90 - 3500K			02	ral 9010
7	7W - 180mA	835	CRI>80 - 3500K	940	CRI>90 - 4000K			03	black
4	4W - 100mA	840	CRI>80 - 4000K	9827	CRI>98 - 2700K			04	gray
		850	CRI>80 - 5000K	9830	CRI>98 - 3000K			05	dark gray
		927	CRI>90 - 2700K	9840	CRI>98 -4000K			06	special color
