Tone
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 12-28W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 40-70mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19600.1135.015.060.830.01 |
| Family Name | tone |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 40mm |
| Profile Height | 70mm |
| Installation Type | Stalactite |
| Productivity | >99lm/W |
| CRI | 80 |
| Light Distribution | Medium, Large, Extra Large, Single Asymmetric and Double Asymmetric |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Lens Optical |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 12W 250mA lm ↑ | 15W 350mA lm ↑ |
|---|---|---|---|---|---|
| 1135mm | CRI>80 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1009 | 1365 |
| 3000K | 1041 | 1408 | |||
| 3500K | 1057 | 1430 | |||
| 4000K | 1098 | 1485 | |||
| 5000K | 1114 | 1506 | |||
| CRI>90 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 847 | 1146 | |
| 3000K | 872 | 1179 | |||
| 3500K | 888 | 1201 | |||
| 4000K | 920 | 1244 |
| Length (A) | CRI | Order Code | Kelvin | 14W 250mA lm ↑ | 20W 350mA lm ↑ |
|---|---|---|---|---|---|
| 1415mm | CRI>80 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1202 | 1856 |
| 3000K | 1240 | 1916 | |||
| 3500K | 1259 | 1945 | |||
| 4000K | 1308 | 2020 | |||
| 5000K | 1327 | 2049 | |||
| CRI>90 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1009 | 1559 | |
| 3000K | 1038 | 1604 | |||
| 3500K | 1058 | 1633 | |||
| 4000K | 1096 | 1693 |
| Length (A) | CRI | Order Code | Kelvin | 17W 250mA lm ↑ | 24W 350mA lm ↑ |
|---|---|---|---|---|---|
| 1695mm | CRI>80 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1490 | 2272 |
| 3000K | 1538 | 2344 | |||
| 3500K | 1562 | 2381 | |||
| 4000K | 1622 | 2472 | |||
| 5000K | 1646 | 2508 | |||
| CRI>90 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1252 | 1908 | |
| 3000K | 1288 | 1963 | |||
| 3500K | 1312 | 1999 | |||
| 4000K | 1359 | 2072 |
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm ↑ | 28W 350mA lm ↑ |
|---|---|---|---|---|---|
| 1975mm | CRI>80 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1791 | 2677 |
| 3000K | 1848 | 2763 | |||
| 3500K | 1877 | 2806 | |||
| 4000K | 1949 | 2913 | |||
| 5000K | 1977 | 2956 | |||
| CRI>80 | I02.LL.19600 . (...) . (...) . (...) . (...) | 2700K | 1504 | 2249 | |
| 3000K | 1547 | 2313 | |||
| 3500K | 1576 | 2356 | |||
| 4000K | 1633 | 2441 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1135mm | 12W | 12W (Indirect)- 250mA |  | M.E. | 30° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 15W | 15W (Indirect)- 350mA | ||||||||||||
| 1415mm | 14W | 14W (Indirect)- 250mA |  | FL | 60° - Flood | 830 | CRI>80 - 2700K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 20W | 20W (Indirect)- 350mA | ||||||||||||
| 1695mm | 17W | 17W (Indirect)- 250mA |  | W.F. | 90° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 24W | 24W (Indirect)- 350mA | ||||||||||||
| 1975mm | 20W | 20W (Indirect)- 250mA |  | S.ASY. | Single Asymmetric | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 28W | 28W (Indirect)- 350mA | ||||||||||||
 | D.ASY. | Single Asymmetric | 850 | CRI>80 - 5000K |  | 05 | dark gray | ||||||
 | 06 | special color |

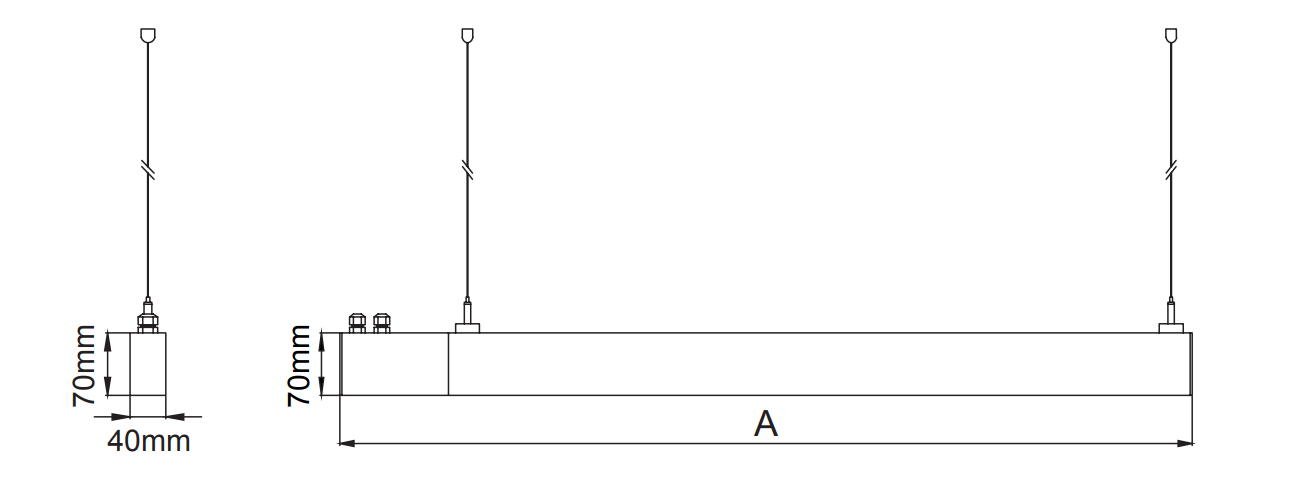

Teknik Çizimler

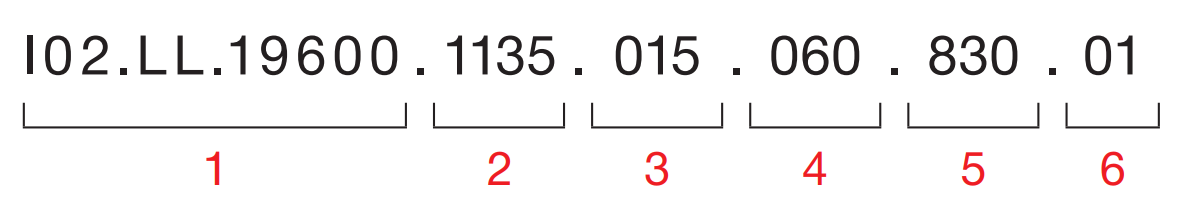

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
