Vale
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 32.5-38W |
| Protection Class | IP20 |
| Optical | Lens |
| width, length | 595x595mm |
AÇIKLAMA
Açıklama
VALE Avolux new generation panel
It is included in the armature series. Slim body structure
and glare-free thanks to specially designed lens optics
level is minimum. Office, school, hospital, clinic,
It is preferred in many different projects such as public buildings.
can be done. T-profile ceilings and plasterboard ceilings
can be easily applied to systems.
SMD LED applied inside the luminaire
technology provides efficiency up to 128lm/W.
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 32.5W 900mA lm | 38W 1050mA lm |
|---|---|---|---|---|---|
| 595x595mm | CRI>80 | I02.LL.19912 . (...) . (...) . (...) . (...) | 2700K | 3758 | 4259 |
| 3000K | 3838 | 4349 | |||
| 3500K | 3912 | 4434 | |||
| 4000K | 3998 | 4531 | |||
| 5000K | 4397 | 4984 | |||
| CRI>90 | I02.LL.19912 . (...) . (...) . (...) . (...) | 2700K | 3278 | 3715 | |
| 3000K | 3318 | 3760 | |||
| 3500K | 3358 | 3806 | |||
| 4000K | 3398 | 3851 |
| Length (A) | watts | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|
| 595x595mm | 32.5W | 32.5W (Direct) - 900mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white |
| 38W | 38W (Direct) - 1050mA | ||||||||
| 22.5W | 22.5W (Direct) - 600mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 30W | 30W (Direct) - 800mA | ||||||||
| 14W | 14W (Direct) - 350mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 20.5W | 20.5W (Direct) - 500mA | ||||||||
| 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |||
| 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||
 | 06 | special color |

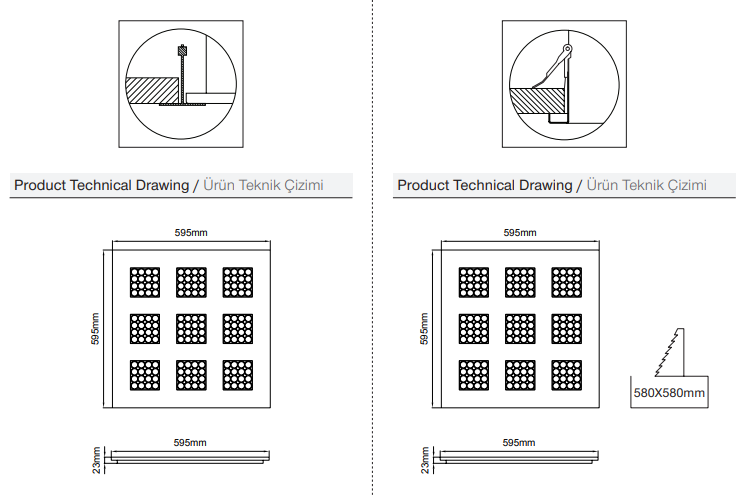

Teknik Çizimler

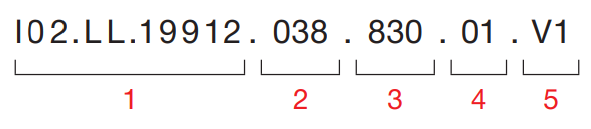

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
