Vektor Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 36W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | Lens |
| width, height | 66-85mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19435.1450.036.064.830.01 |
| Family Name | Vector |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 66mm |
| Profile Height | 85mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >111lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Medium, Wide, Extra Wide and Asymmetrical Angled |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | High efficiency Lens Optics |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm |
|---|---|---|---|---|
| 1450mm | CRI>80 | I02.LL.19435 . (...) . (...) . (...) . (...) | 2700K | 3658 |
| 3000K | 3775 | |||
| 3500K | 3833 | |||
| 4000K | 3980 | |||
| 5000K | 4038 | |||
| CRI>90 | I02.LL.19435 . (...) . (...) . (...) . (...) | 2700K | 3072 | |
| 3000K | 3160 | |||
| 3500K | 3219 | |||
| 4000K | 3336 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | Light Angle | 5 | CRI/Kelvin | 5 | CRI/Kelvin | 6 | Product Color | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1450mm | 36W | 36W (Direct) - 250mA |  | M.E. | 35° - Medium | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
 | FL | 63° - Flood | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | ||||
 | W.F. | 94° - Wide Flood | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | ||||
 | S.ASY. | 2x25° - Batwing | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | ||||
 | D.ASY. | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||||||
 | 06 | special color |
Teknik Çizimler

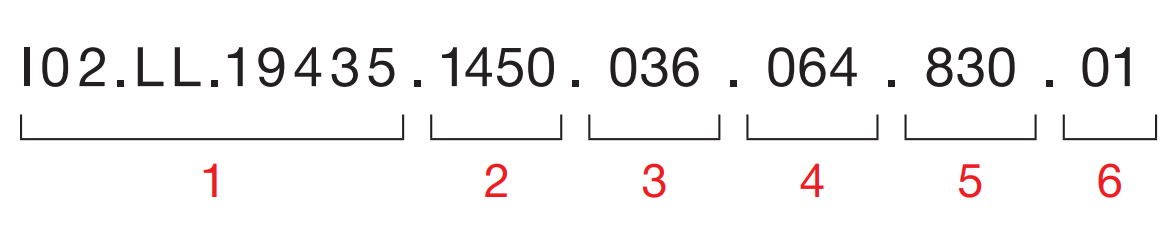

Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- Beam Angle
5- CRI / Kelvin
6- Color / Product color
7- Control type
