Yatomi Suspendant
Ürün ikonları
| Input Voltage | 220-240V / 50-60Hz |
| Wattage | 20-58W |
| Protection Class | IP20 |
| Shape | Linear |
| Optical | diffuser |
| width, height | 40-66mm |
| Mounting Type | Stalactite |
AÇIKLAMA
Açıklama
| Armature Data | |
|---|---|
| Product Code | I02.LL.19318.1175.034.830.01 |
| Family Name | Yatomi |
| Material | Aluminum Profile |
| Format | linear |
| Profile Width | 40mm |
| Profile Height | 66mm |
| Installation Type | Pendant, Surface Mounted and Rail Mounted |
| Productivity | >108lm/W |
| CRI | 80 |
| Light Distribution | Symmetrical Wide Angle |
| Protection Class | 20 |
| Luminaire Life | L70/B50 50000h |
| Optical | Opal Plexi |
Ürün Kodu Tablosu
| Length (A) | CRI | Order Code | Kelvin | 20W 250mA lm | 25W 350mA lm |
|---|---|---|---|---|---|
| 895mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2101 | 2662 |
| 3000K | 2168 | 2748 | |||
| 3500K | 2202 | 2790 | |||
| 4000K | 2286 | 2897 | |||
| 5000K | 2319 | 2939 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 1765 | 2236 | |
| 3000K | 1815 | 2300 | |||
| 3500K | 1849 | 2343 | |||
| 4000K | 1916 | 2428 |
| Length (A) | CRI | Order Code | Kelvin | 24W 250mA lm | 34W 350mA lm |
|---|---|---|---|---|---|
| 1175mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2556 | 3388 |
| 3000K | 2638 | 3496 | |||
| 3500K | 2678 | 3550 | |||
| 4000K | 2781 | 3686 | |||
| 5000K | 2822 | 3740 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2147 | 2845 | |
| 3000K | 2208 | 2927 | |||
| 3500K | 2249 | 2981 | |||
| 4000K | 2331 | 3089 |
| Length (A) | CRI | Order Code | Kelvin | 30W 250mA lm | 43W 350mA lm |
|---|---|---|---|---|---|
| 1455mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3263 | 4366 |
| 3000K | 3367 | 4505 | |||
| 3500K | 3419 | 4575 | |||
| 4000K | 3550 | 4750 | |||
| 5000K | 3602 | 4820 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 2740 | 3667 | |
| 3000K | 2819 | 3772 | |||
| 3500K | 2871 | 3842 | |||
| 4000K | 2975 | 3981 |
| Length (A) | CRI | Order Code | Kelvin | 36W 250mA lm | 51W 350mA lm |
|---|---|---|---|---|---|
| 1735mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4000 | 5328 |
| 3000K | 4128 | 5499 | |||
| 3500K | 4192 | 5584 | |||
| 4000K | 4352 | 5797 | |||
| 5000K | 4416 | 5882 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 3360 | 4475 | |
| 3000K | 3456 | 4603 | |||
| 3500K | 3520 | 4689 | |||
| 4000K | 3648 | 4859 |
| Length (A) | CRI | Order Code | Kelvin | 42W 250mA lm | 58W 350mA lm |
|---|---|---|---|---|---|
| 2015mm | CRI>80 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4764 | 6306 |
| 3000K | 4916 | 6508 | |||
| 3500K | 4992 | 6609 | |||
| 4000K | 5183 | 6861 | |||
| 5000K | 5259 | 6962 | |||
| CRI>90 | I02.LL.19318 . (...) . (...) . (...) . (...) | 2700K | 4001 | 5297 | |
| 3000K | 4116 | 5449 | |||
| 3500K | 4192 | 5549 | |||
| 4000K | 4344 | 5751 |
| 2 | Length (A) | 3 | Watts - Driving Current | 4 | CRI/Kelvin | 4 | CRI/Kelvin | 5 | Product Color | |
|---|---|---|---|---|---|---|---|---|---|---|
| 895mm | 20W | 20W (Direct) - 250mA | 827 | CRI>80 - 2700K | 927 | CRI>90 - 2700K |  | 01 | white | |
| 25W | 25W (Direct) - 350mA | |||||||||
| 1175mm | 24W | 24W (Direct) - 250mA | 830 | CRI>80 - 3000K | 930 | CRI>90 - 3000K |  | 02 | ral 9010 | |
| 34W | 34W (Direct) - 350mA | |||||||||
| 1455mm | 30W | 30W (Direct) - 250mA | 835 | CRI>80 - 3500K | 935 | CRI>90 - 3500K |  | 03 | black | |
| 43W | 43W (Direct) - 350mA | |||||||||
| 1735mm | 36W | 36W (Direct) - 250mA | 840 | CRI>80 - 4000K | 940 | CRI>90 - 4000K |  | 04 | gray | |
| 51W | 51W (Direct) - 350mA | |||||||||
| 2015mm | 42W | 42W (Direct) - 250mA | 850 | CRI>80 - 5000K |  | 05 | dark gray | |||
| 58W | 58W (Direct) - 350mA | |||||||||
 | 06 | special color |

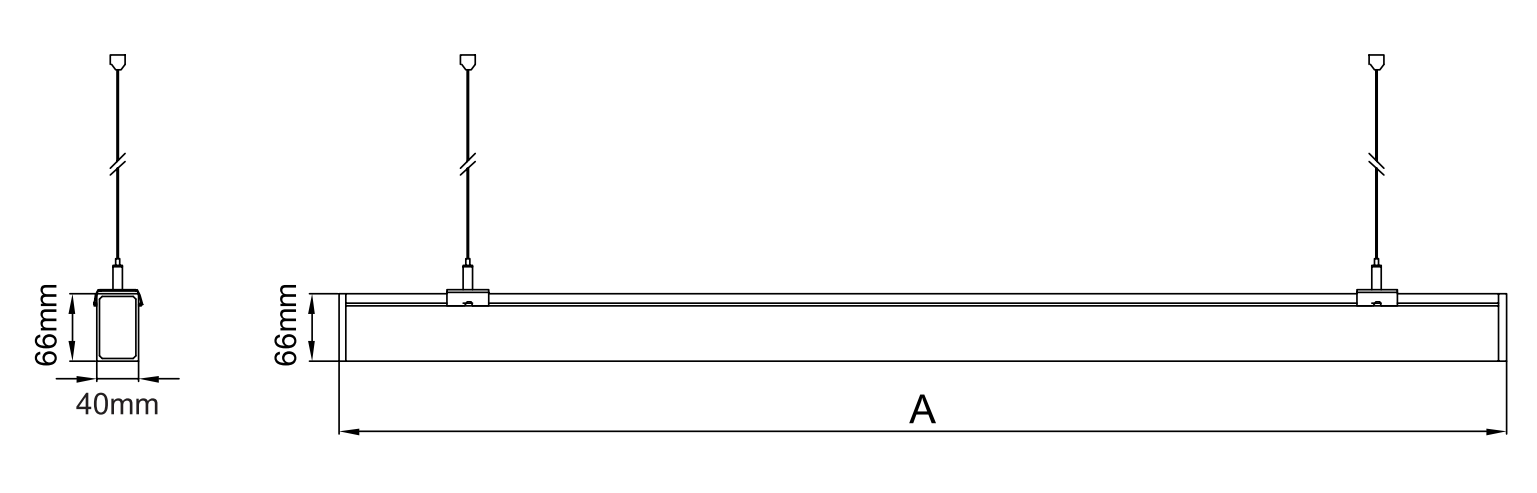

Teknik Çizimler
Kod Örneği
1- Product code / Armature code
2- Length
3- Power
4- CRI / Kelvin
5- Color / Product color
6- Control type
